Four-Track Commander III Barrier/Parapet Applications

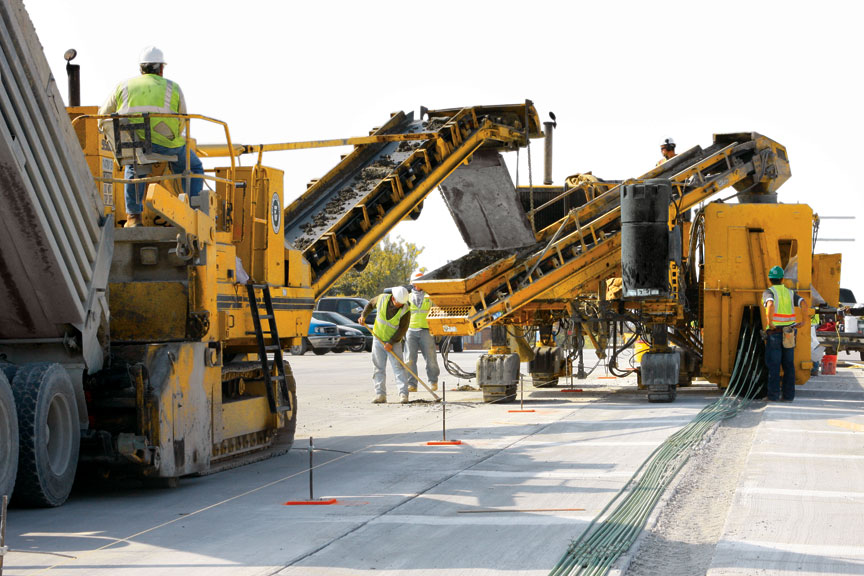

A GOMACO 9500 feeds concrete onto the belt of a four-track Commander III slipforming barrier wall on a project in St. Louis. The Commander III is equipped with a variable-height mold for slipforming both the variable and non-variable center median barrier.

Read more about this project in GOMACO World 37.1.







This contractor slipformed 12,000 feet (3658 m) of single-sided variable barrier wall with their GOMACO Commander III as part of a project on Highway 169 in Tulsa, Oklahoma.

Read more about this project in GOMACO World 40.1.

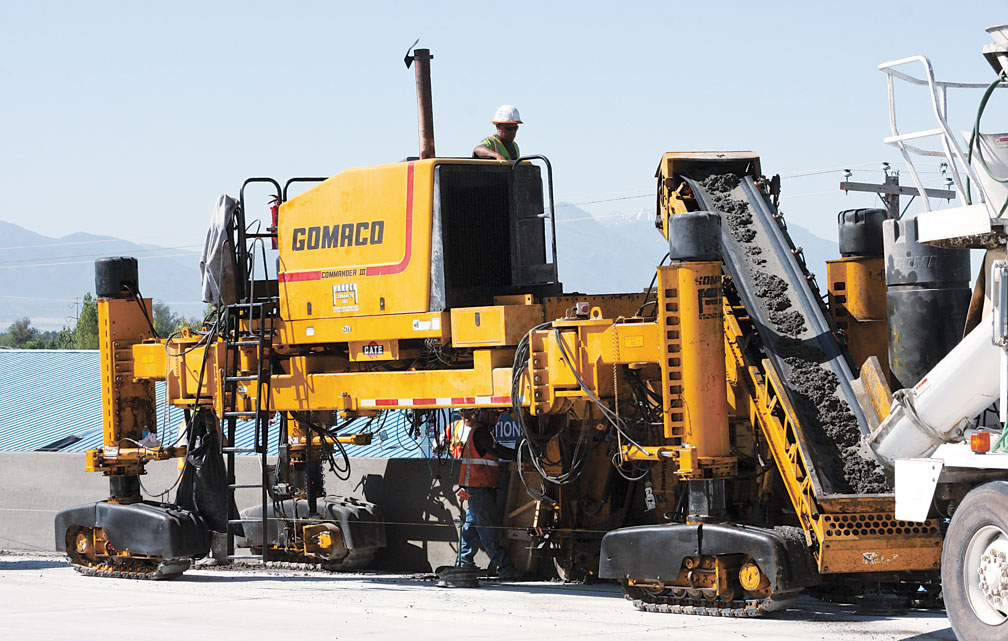

A four-track Commander III was used to slipform the barrier wall along the new stretch of I-15 in Provo, Utah.

Read more about this project in GOMACO World 40.2.

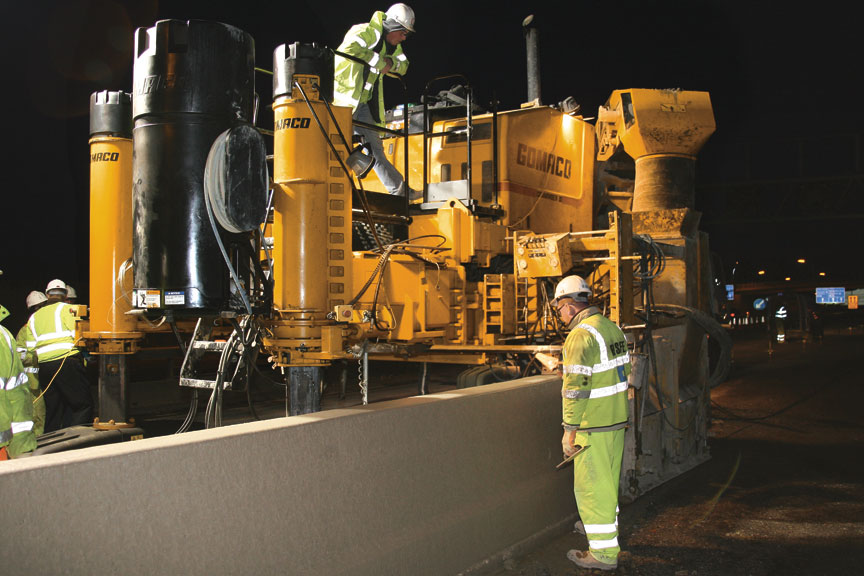

Steel reinforcing is fed into the front of the mold on a project in London, England.







This 5 ft. 7 in. (1.7 m) tall European-style step barrier is slipformed with a four-track Commander III.

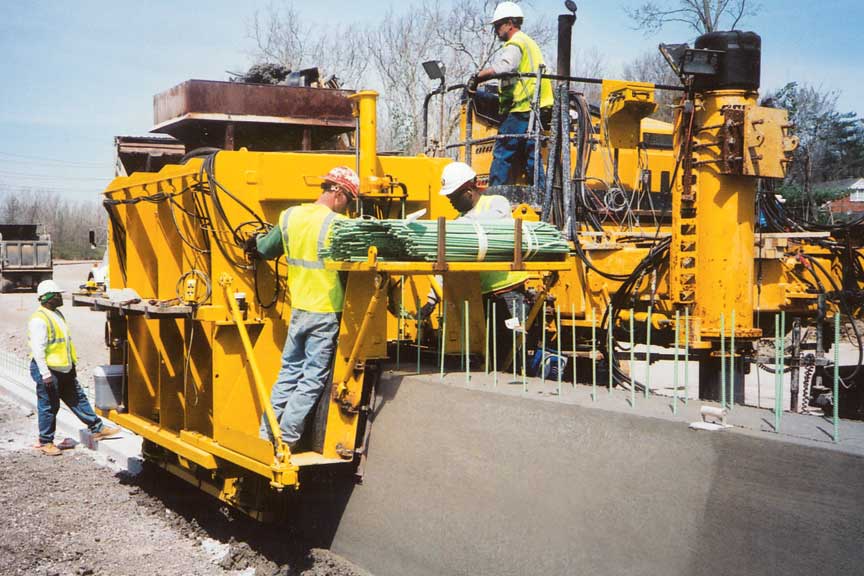

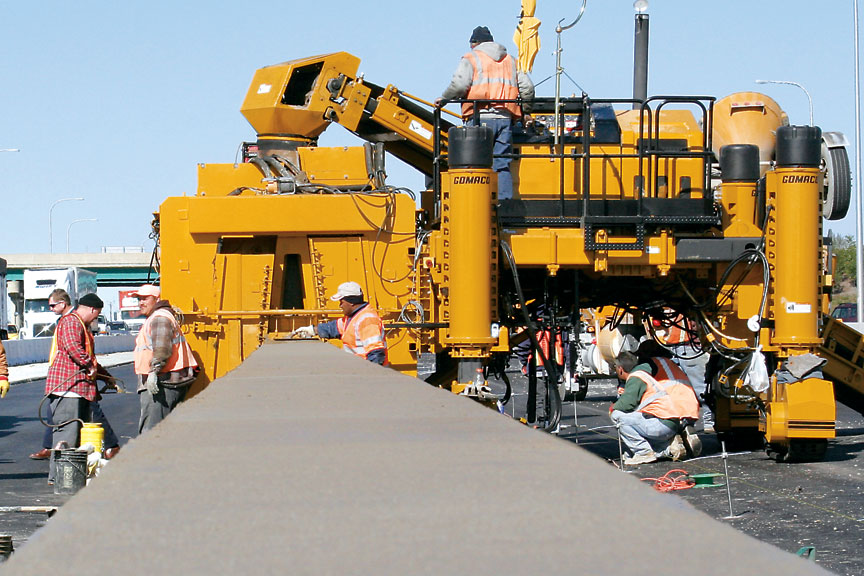

Rebars are hydraulically inserted into the 24 inch (610 mm) wide top of this barrier wall being slipformed by a four-track Commander III on a project in St. Louis, Missouri.

Read more about this project in GOMACO World 37.1.

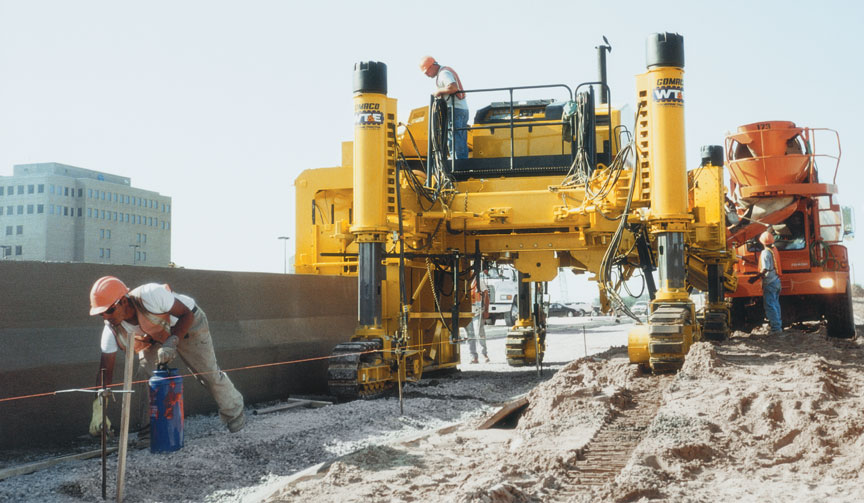

This four-track Commander III is slipforming barrier wall over steel reinforcing in Fort Lauderdale, Florida.







This Commander III is equipped with the four-track barrier package and has a hydraulically extendible rear frame to extend the right rear leg.

Read more about this project in GOMACO World 37.1.

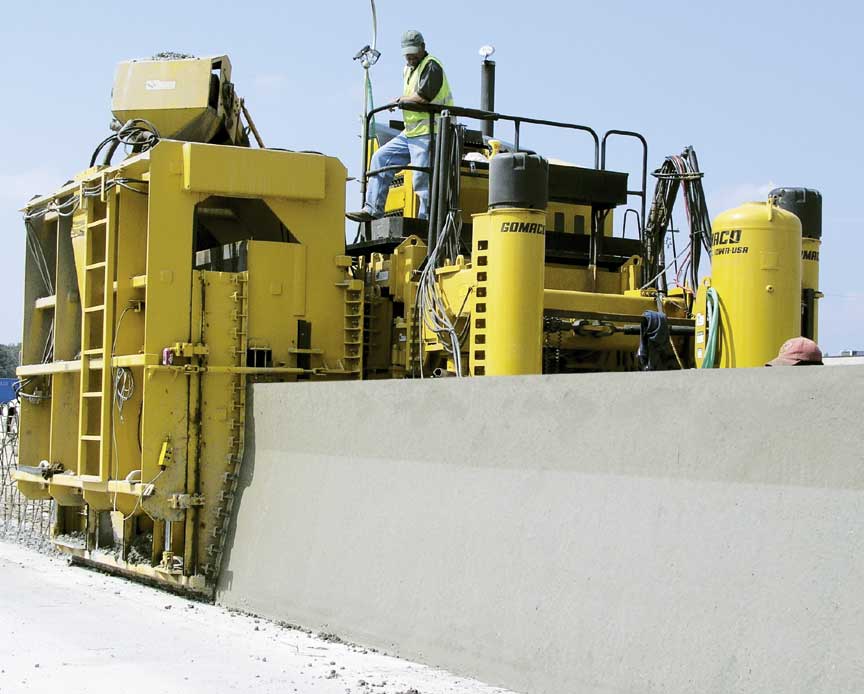

The wall on this project paved by a Commander III has a 19 inch (483 mm) wide top, is 39.25 inches (997 mm) wide at the base and its sidewalls vary in height from 3.5 to 6.5 feet (1.1 to 2 m).

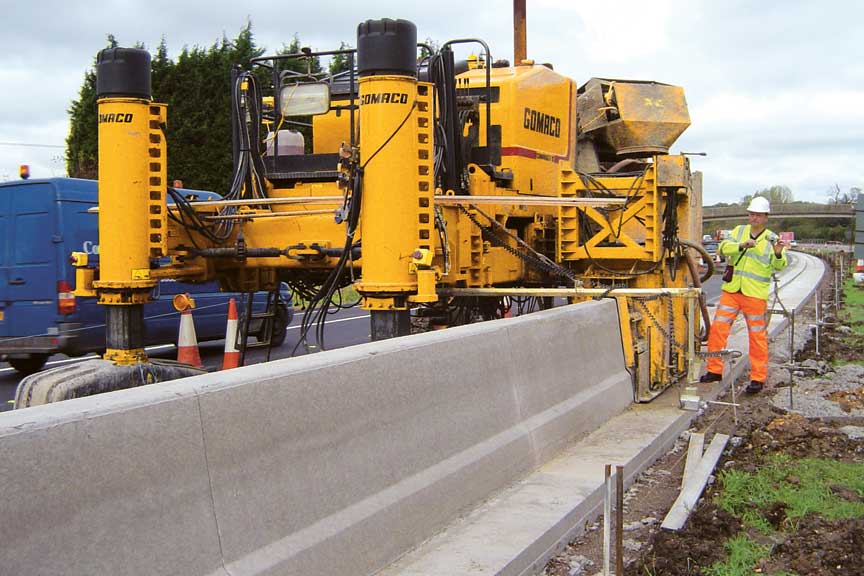

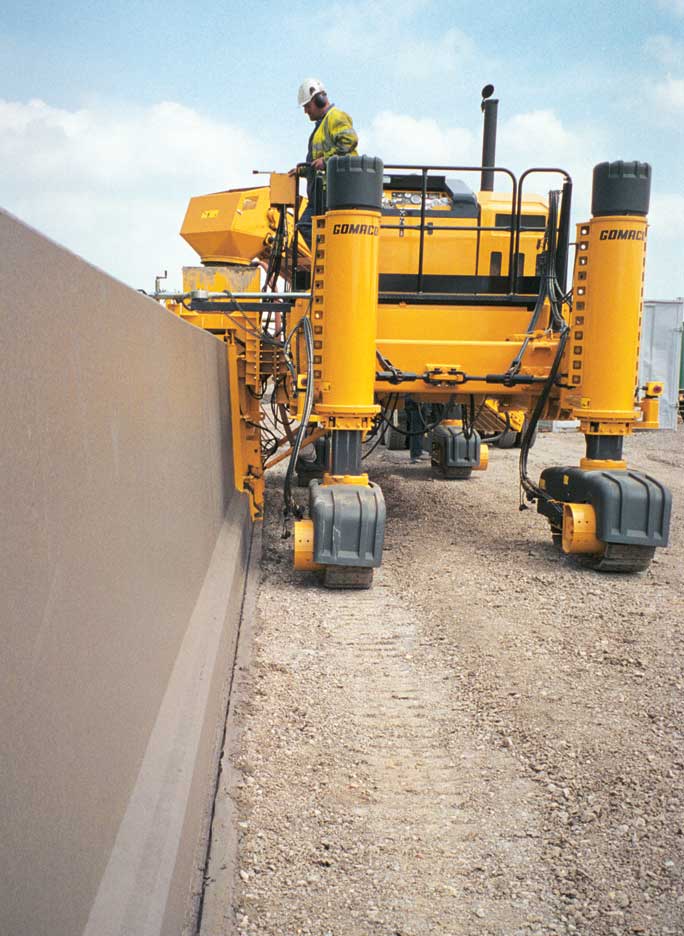

A contractor in England slipforms right-side step barrier. The GOMACO control system allows for multiple applications and configurations, which gives the Commander III its exceptional versatility.

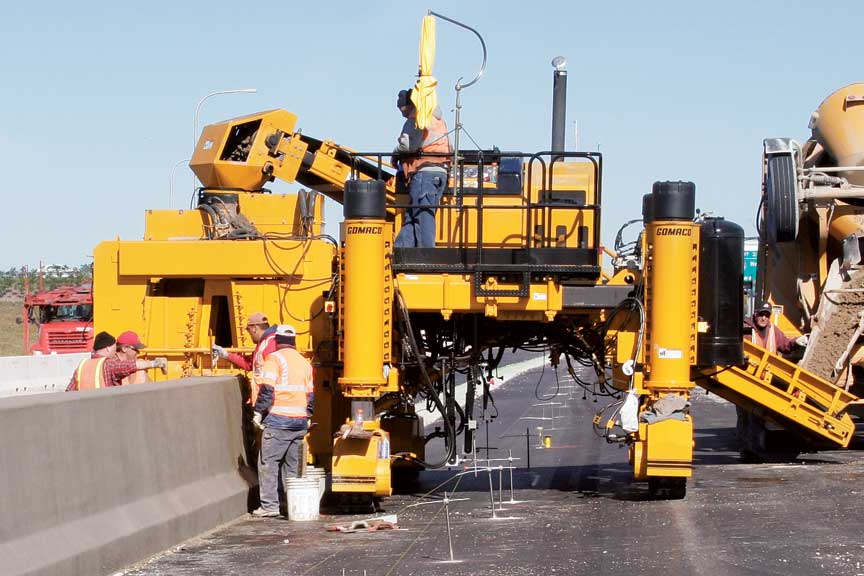

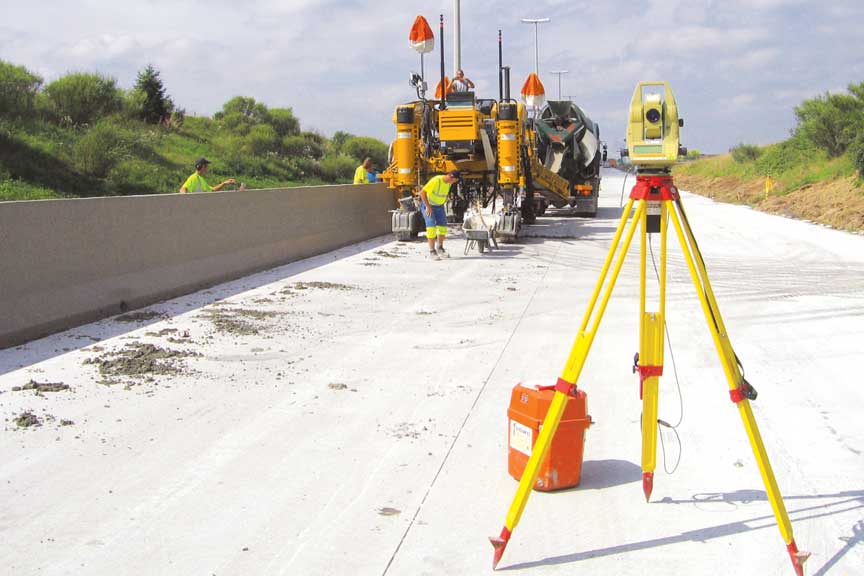

A total station tracks the progress of a Commander III on a barrier wall project in Belgium. The project was slipformed with the Leica 3-D stringless guidance system.







The mold on this Commander III can be hydraulically telescoped up to 11.8 in. (300 mm) for easy positioning and setup.

Read more about this project in GOMACO World 36.3.

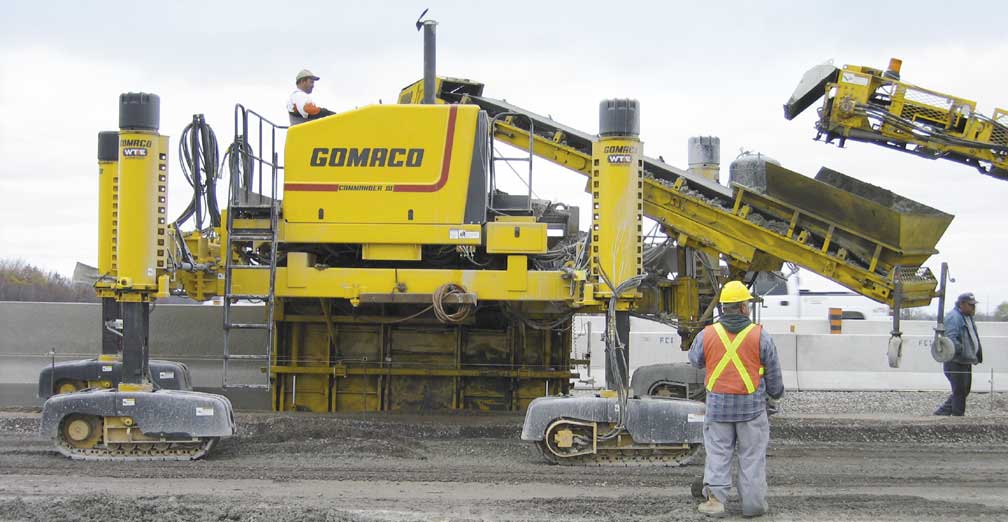

A four-track Commander III slipformed variable barrier as tall as six feet (1.8 m) high on this project in Ontario, Canada.

Read more about this project in GOMACO World 33.1.

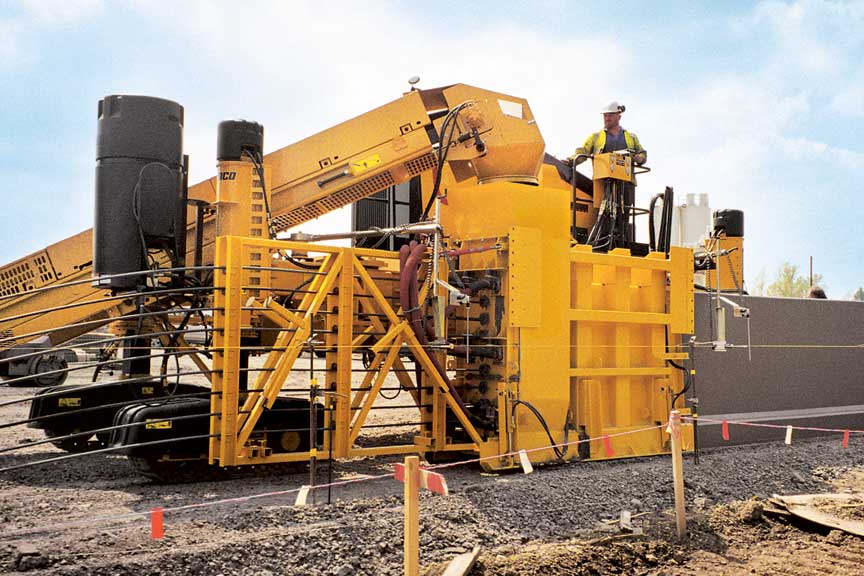

This four-track Commander III is equipped with a side-mounted barrier package. All-Track Positioning (ATP) allows the four legs to be put in various positions to permit the sidemounting of the variable barrier mold.

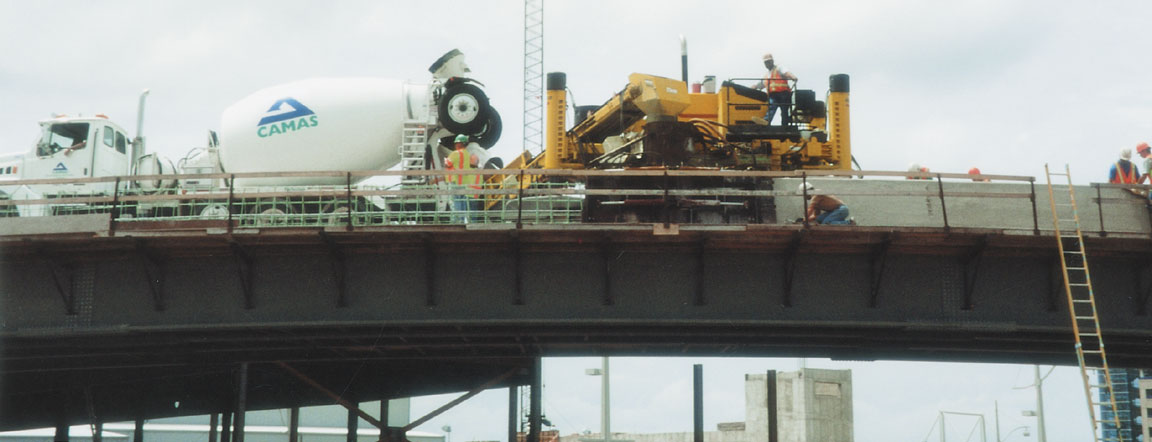

A Commander III slipformed parapet on this bridge on the Minneapolis-St. Paul International Airport. The parapet was slipformed 34 inches (864 mm) tall and the back wall had a seven inch (178 mm) overhang.

Read more about this project in GOMACO World 29.2.







A Commander III slipformed this variable wall over steel reinforcement in Arkansas.

Read more about this project in GOMACO World 32.2.







The tracks on this Commander III are spun around so the machine thinks it's moving forward, when it's actually running in reverse on this unique bridge parapet project.

Read more about this project in GOMACO World 34.1.

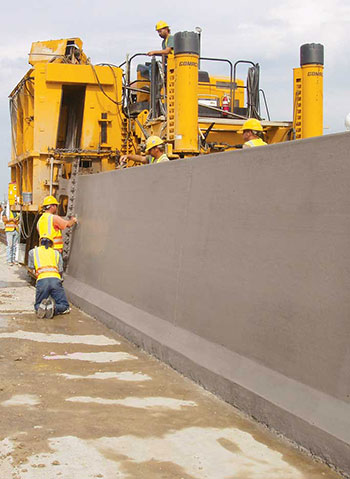

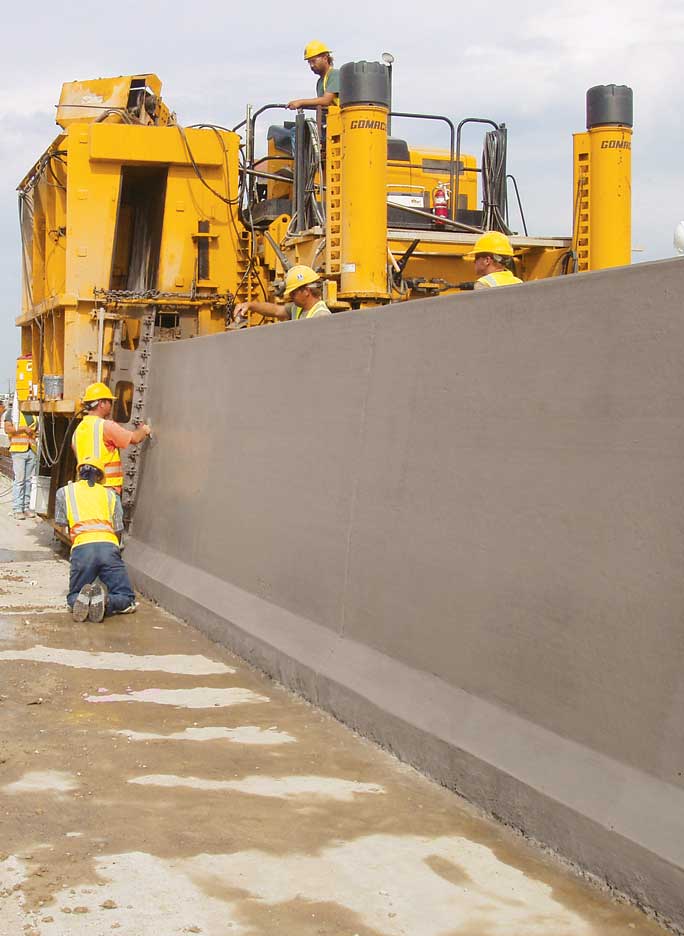

This contractor in St. Louis, Missouri, is slipforming variable barrier wall up to 7 ft. (2.1 m) tall.







This variable barrier ranged in height from 42 inches (1067 mm) all the way up to 84 inches (2134 mm) on this project in Grand Rapids, Michigan.

Read more about this project in GOMACO World 29.1.

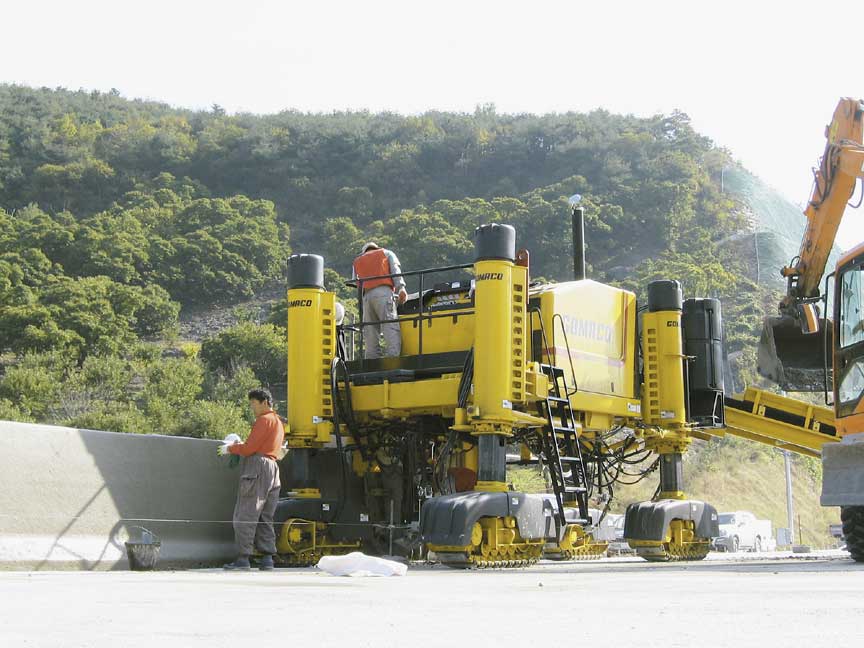

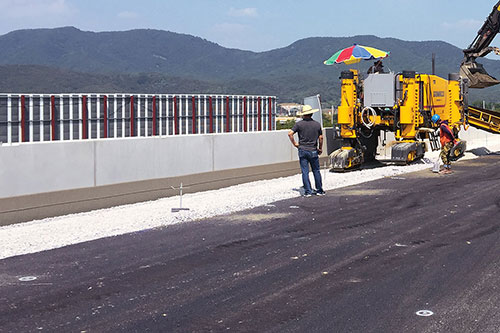

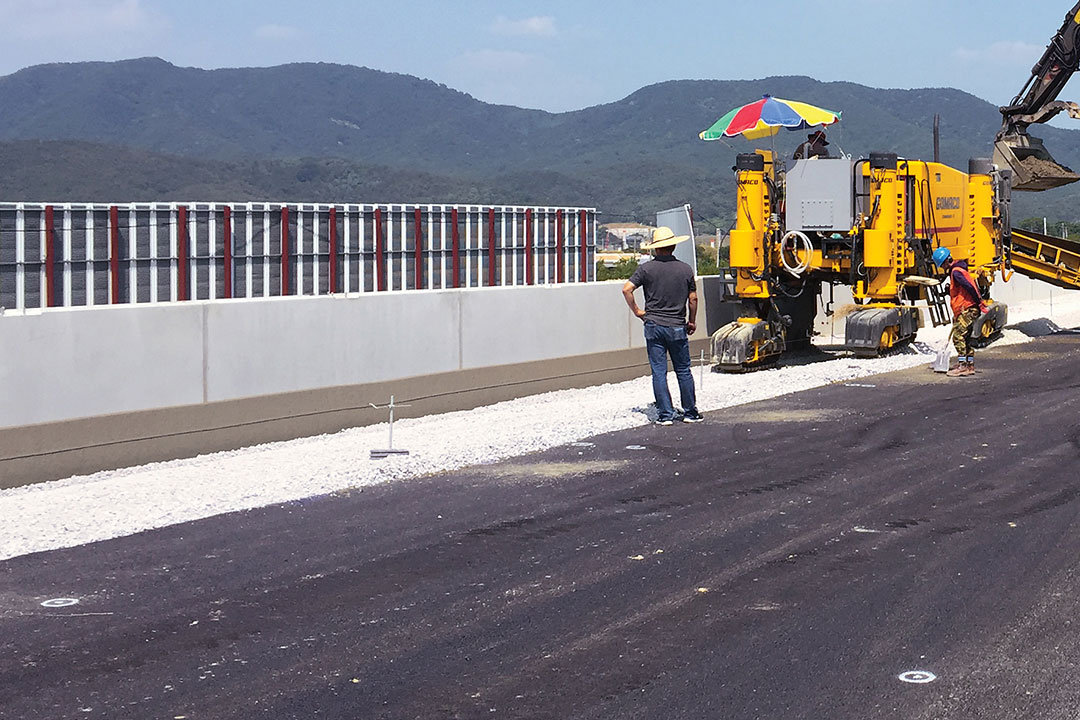

This four-track Commander III is slipforming barrier wall on a project in Korea.

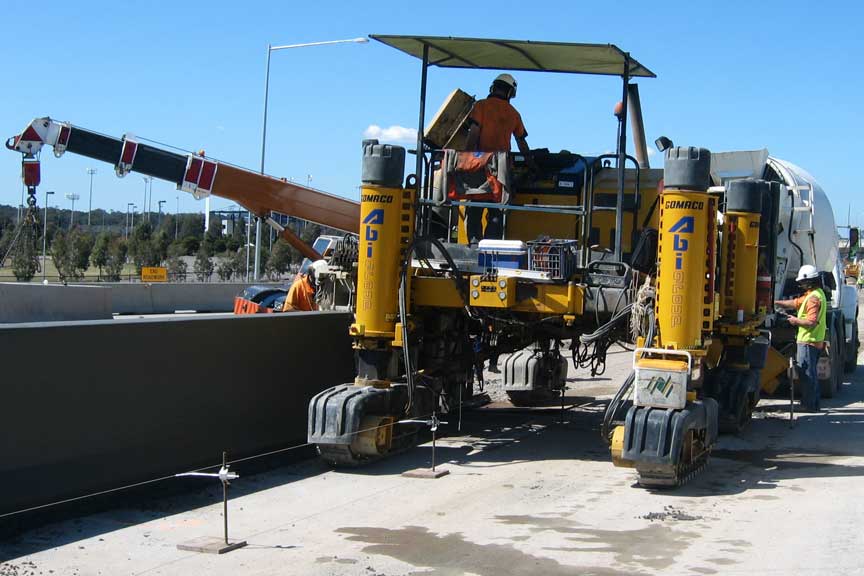

Barrier wall is being slipformed on the M7 Motorway near Sydney, New South Wales, Australia, by this four-track Commander III.
