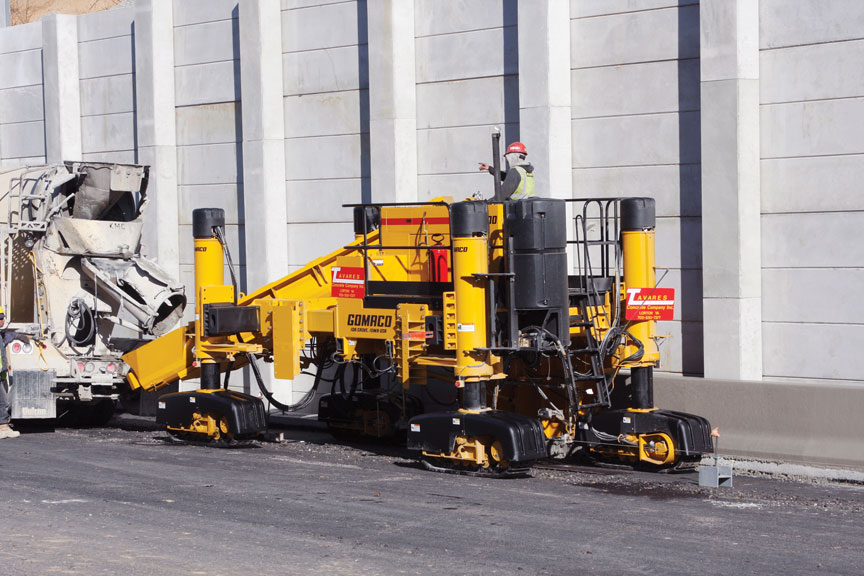

GOMACO Introduces the All New 4400, the Ultimate Barrier Machine
Ida Grove, Iowa -- GOMACO Corporation introduced the world to the new 4400 ultimate barrier machine at CONEXPO-CON/AGG 2011, March 22-26, in Las Vegas, Nevada, USA. The 4400 features a totally new frame design for right-side and left-side slipforming. Its new Glide control console slides from side-to-side, for ultimate operator control and visibility of the paving operation. It features GOMACO’s proprietary G+ controls, which are positively simple to understand and capable of operating in multiple languages.
The new 4400 was built around the design concept of a left-side and right-side slipforming capable machine with symmetric steering and minimal set-up changes for switching profiles from side-to-side. It has the new GOMACO Barrier Hook-and-Go mold mounting system to quickly mount barrier molds up to 39.4 inches (1000 mm) tall on either side of the machine. An optional sidemount attachment is available for barrier taller than 39.4 inches (1000 mm) or existing barrier molds. The GOMACO barrier mold itself is designed for proper vibration and consolidation of material, with the GOMACO-exclusive trailing stainless steel for superior finishing.
The barrier machine features the new 4400 series, 16 inch (406 mm) diameter auger, with the pitch and speed designed specifically for transporting low slump concrete. Its four-way hydraulic positioning capability allows the auger to be placed perfectly for concrete receiving and delivery to the mold on either side of the machine.
The 4400 features a Cummins QSB3.3, 99 horsepower, Tier 3 diesel engine. The engine is power-optimized for fuel efficiency and approximately 18 hours of continuous barrier slipform paving. The high-capacity cooling package was designed for noise reduction and provides one of the quietest working platforms in the industry. The new G+ control system coordinates the speed of the hydraulic fan with engine and hydraulic oil temperature. The tractive system on the 4400 features super low, allowing for the minimum speed and smooth crawl necessary for a vertical wall. The new G+ speed dial turns to adjust in deviations of one percent increments and speed display feedback allows for smooth, precision paving speed control.
Its unique GOMACO U-shaped operator’s platform, with vibration isolation, puts the operator comfortably on top of the action. The U-shaped platform and side-to-side sliding console accommodate right-side and left-side pour and provide a 360 degree view of the entire paving operation. Safety is first in all of GOMACO’s design considerations. The 4400 features track guards and ground level emergency stops to keep everyone safe while working around the machine.
GOMACO Corporation (www.gomaco.com) is the worldwide leader in concrete construction equipment with headquarters in Ida Grove, Iowa. GOMACO equipment will slipform concrete streets and highways, airport runways, curb and gutter, sidewalks and recreational trails, safety barrier, bridge parapet, and irrigation canals. Support equipment includes grade trimmers, concrete placers, concrete placer/spreaders, and texturing and curing machines. We also offer equipment to finish flat slabs, bridges, and slopes. GOMACO will consult on equipment for large or unique concrete paving projects. GOMACO products are offered through a worldwide distributor network for local sales, parts and service expertise.
