GOMACO Will Display the 3300 Multi-Application Paver Designed for the European Market at Intermat 2018

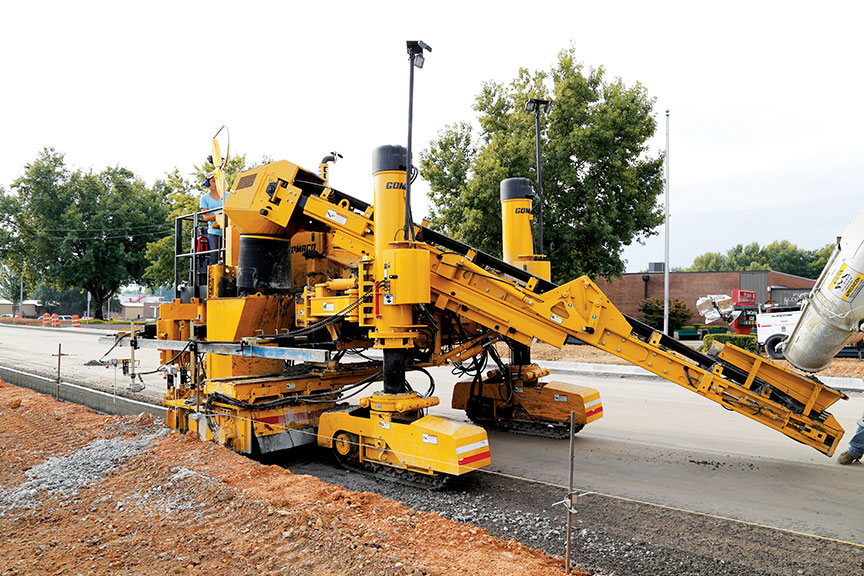

A GOMACO 3300 slipforms right-side pour curb and gutter.

Ida Grove, IA, USA – GOMACO’s new 3300 multi-application slipform paver, designed for the European market, will be on display at Intermat 2018 in Paris, France. GOMACO has re-engineered the original GT-3300 with the latest in technology, including the G+ control system and GOMACO Remote Diagnostics (GRD). The 3300 features true right-side or left-side paving capabilities with extreme steering, Smart Leg and Track Positioning, and a Smart Telescoping Mold mounting system. The GOMACO 3300 is capable of slipforming multiple applications, including curb and gutter, safety barrier, sidewalk and undermounted paving.

GOMACO’s 3300 has been specifically designed for European-style paving with its right-side and left-side pour capabilities. It has a symmetrical design and a U-shaped operator’s platform that provides a complete view of the entire paving operation from anywhere on the platform and either side of the paver. The control console easily slides from side-to-side to accommodate the direction of the pour. The 3300’s design includes a 6.1 meter long conveyor with four-way hydraulic positioning for perfect placement of the concrete into the hopper from either side of the 3300. The conveyor hydraulically folds to reduce the overall transport length of the paver to help accommodate international shipping requirements. The 3300 is also available with a 5.2 meter long charging auger for receiving concrete.

The 3300’s Extreme Steering is accomplished with rotary sensored slew drives on the tracks and G+ controls. The 3300’s two front legs are mounted on parallelogram-style pivot arms and the rear leg has power slide for positioning. Their smart leg positioning is accomplished with smart cylinders. Another unique feature on the 3300 is the Smart Telescoping Mold mounting system for reference to G+ for repeatable mold offset. It has the GOMACO Hook-and-Go mold mounting system to quickly and efficiently change from one mold profile to the next. The trimmerhead and mold sideshift and vertically-adjust to clear obstacles, which allows the 3300 to pave right up to obstacles.

The G+ control system easily interfaces with stringline or a 3D guidance system for the 3300 multi-application paver. The 3300 will be on display at Intermat 2018 in Paris, France, from April 23-28, as a right-side pour curb and gutter machine. It will feature the latest in GOMACO Remote Diagnostics (GRD). GRD is more than telematics, giving owners the visibility of how, when, and where their equipment is being used. It’s a powerful extension to GOMACO’s existing service capabilities. It allows technicians a diagnostic review of a GOMACO machine from corporate headquarters in Ida Grove, Iowa, USA, at the owner’s shop, or on the job site. GRD will transmit G+ settings, configuration and fault history for an immediate and complete diagnosis. GRD also allows software updates, fleet management, service indicators and more.

GOMACO Corporation (www.gomaco.com) is the worldwide leader in concrete construction equipment with headquarters in Ida Grove, Iowa, USA. GOMACO equipment will slipform concrete streets and highways, airport runways, curb and gutter, sidewalks and recreational trails, safety barrier, bridge parapet, and irrigation canals. Support equipment includes grade trimmers, concrete placers, concrete placer/spreaders, and texturing and curing machines. The company also offers equipment to finish flat slabs, bridges, and slopes. GOMACO will consult on unique concrete paving applications and equipment needs. Products are offered through a worldwide distributor network for local sales, parts and service expertise.
