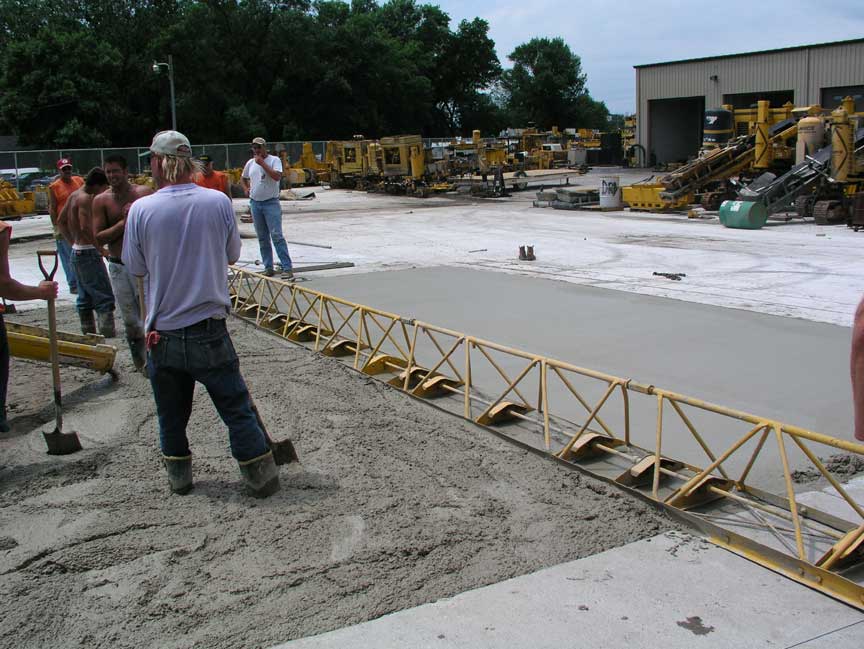

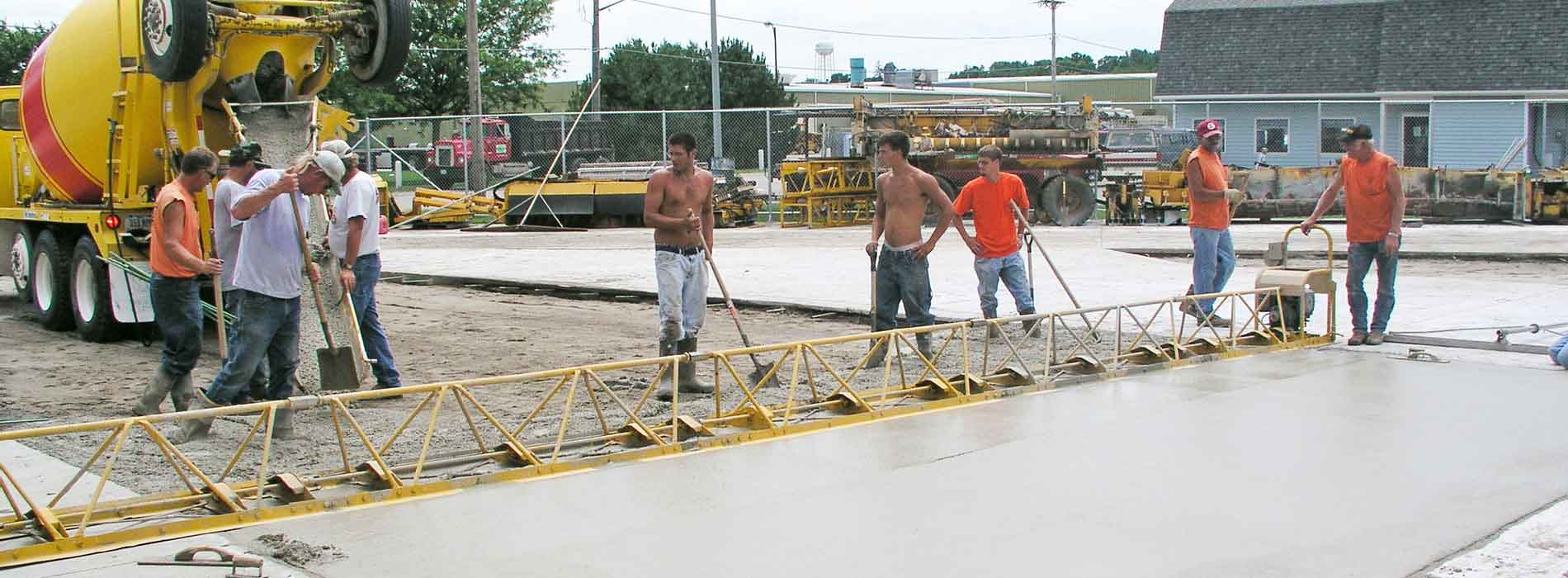

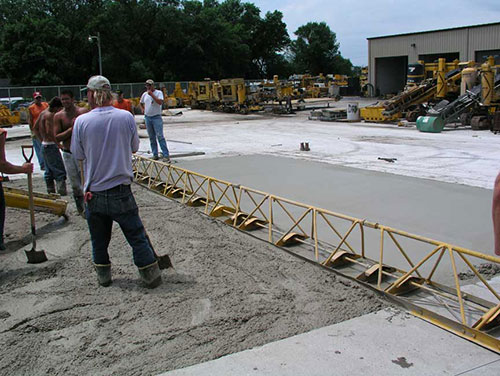

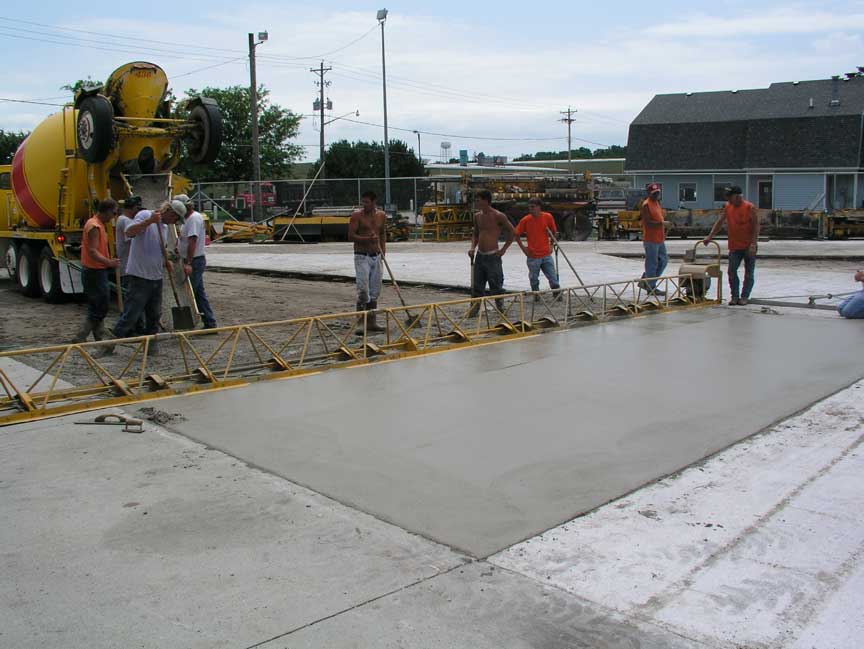

The GOMACO Hawkeye Screed is designed for finishing a variety of projects, including driveways, streets, ramps or any flat slab.

The truss system on the MV-18 model is manufactured out of high tensile tubular steel in an 18 in. (457 mm) equilateral triangle.

This screed is built to last in concrete job-site conditions.



Hawkeye screed model MV-18 is an engine-powered screed that eliminates the need for an air compressor on the job site. It is equipped with an 8.5 hp (6.3 kW) gasoline engine.

Truss sections for the MV-18 screed are available in 5 ft. (1.52 m) and 7.5 ft. (2.29 m) lengths. All sections feature rigid stainless steel finishing screeds.

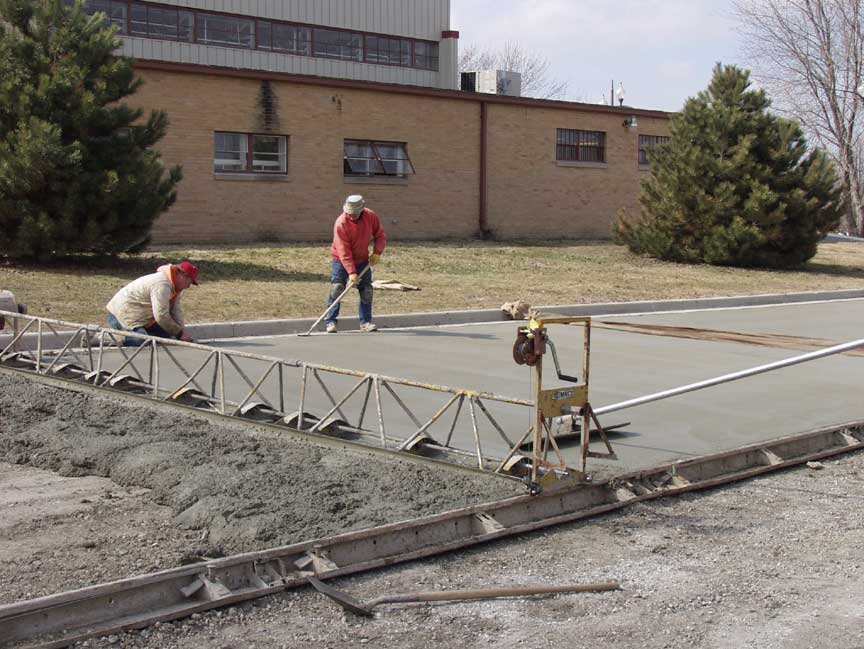

Two 2,500 lb. (1,134 kg) capacity hand winches are included and 65 ft. (19.81 m) of 1/8 in. (3.2 mm) diameter aircraft cable with necessary pulleys and hooks. Optional hydraulic-powered or air-powered winches are available.

Crowning connectors and locknuts are electroplated to prevent rust and corrosion. They are accurately machined to assure positive crown adjustment, uniform grade control and easy assembly.

The MV-18 can accommodate both winches at one end, allowing one man to move the screed forward.

The MV-18 includes a 3/4 in. (19 mm) rustproof vibrator shaft with ball bearings on 30 in. (762 mm) centers.

Eccentric weights clamp on the shaft. Heavier weights for finishing low-slump concrete are easily installed without disassembly of the line shaft.

The standard width of the MV-18 screed is 11.5 ft. (3.51 m) and weighs 312 lbs. (141.5 kg). The maximum frame width is 49 ft. (14.94 m).

The optional AV-18 is 12.5 ft. (3.81 m) wide and weighs 270 lbs. (122.5 kg).







Hawkeye Screed

Two 2,500 lb. (1,134 kg) capacity hand winches are included and 65 ft. (19.81 m) of 1/8 in. (3.2 mm) diameter aircraft cable with necessary pulleys and hooks. Optional hydraulic-powered or air-powered winches are available.







Hawkeye Screed

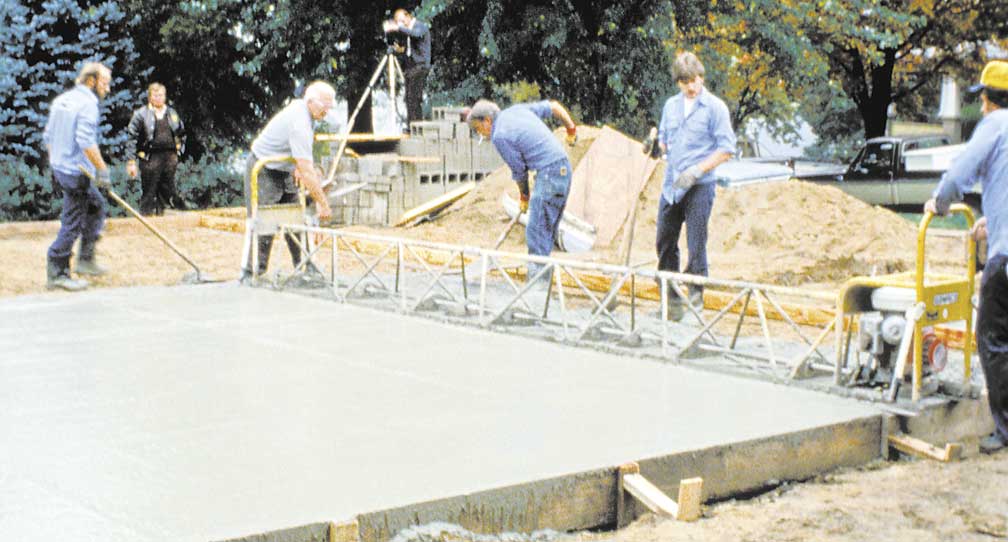

The Hawkeye screed is constructed of high tensile tubular steel that provides a rigid truss.







Hawkeye Screed

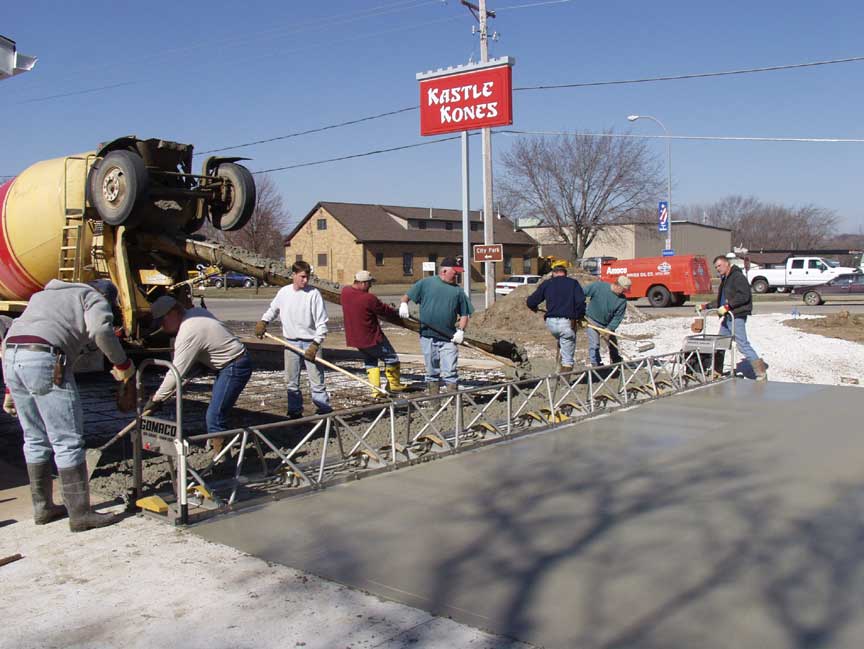

Truss sections for the MV-18 screed are available in 5 ft. (1.52 m) and 7.5 ft. (2.29 m) lengths. All sections feature rigid stainless steel finishing screeds.







Hawkeye Screed

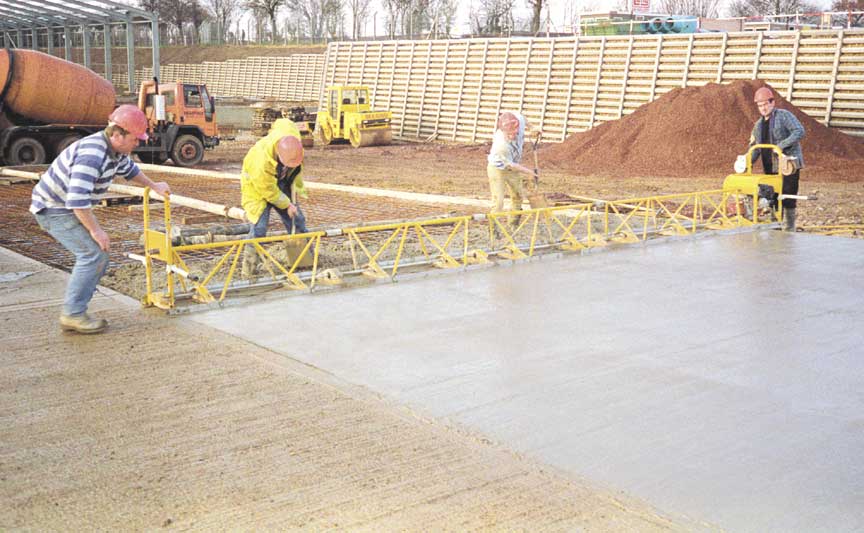

The GOMACO Hawkeye screed is also available with an optional aluminum frame.







Hawkeye Screed

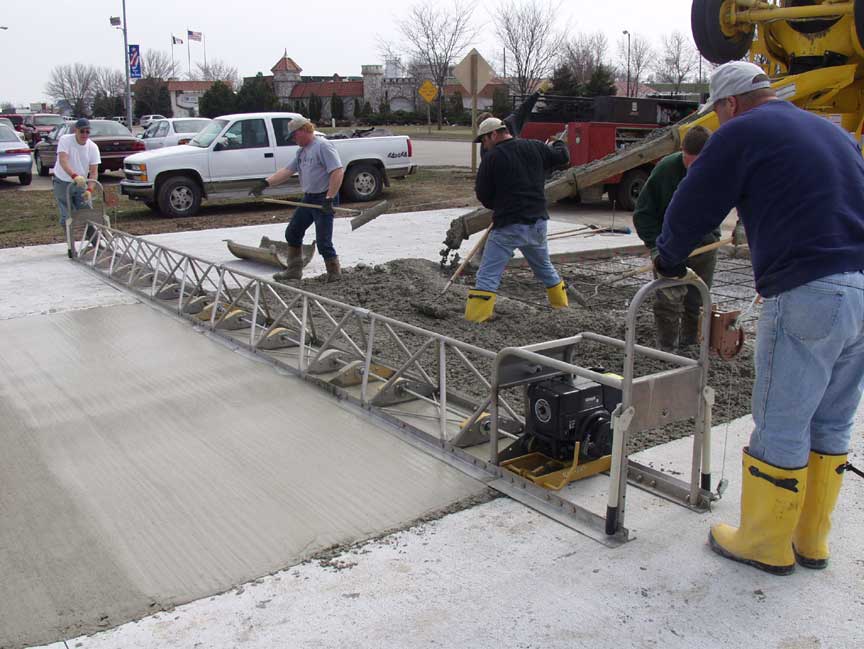

The MV-18 includes a 3/4 in. (19 mm) rustproof vibrator shaft with ball bearings on 30 in. (762 mm) centers.







Hawkeye Screed

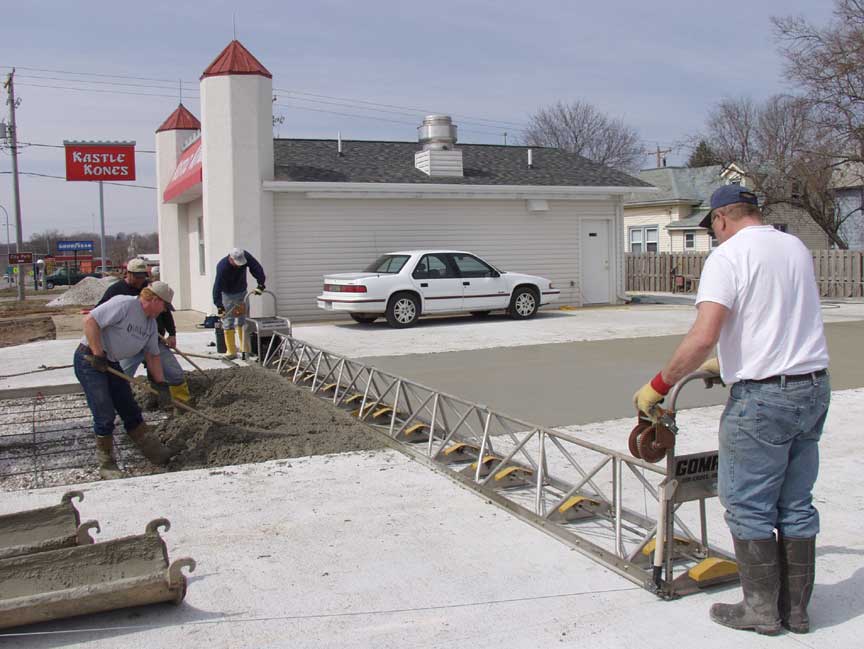

Eccentric weights clamp on the shaft. Heavier weights for finishing low-slump concrete are easily installed without disassembly of the line shaft.







Hawkeye Screed

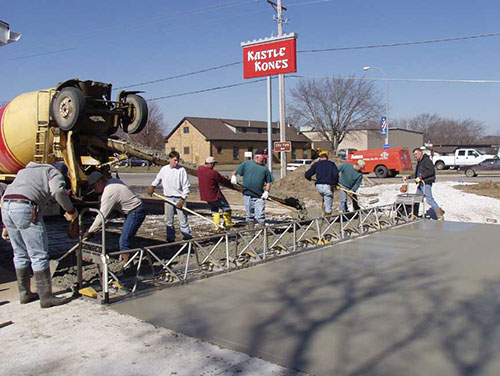

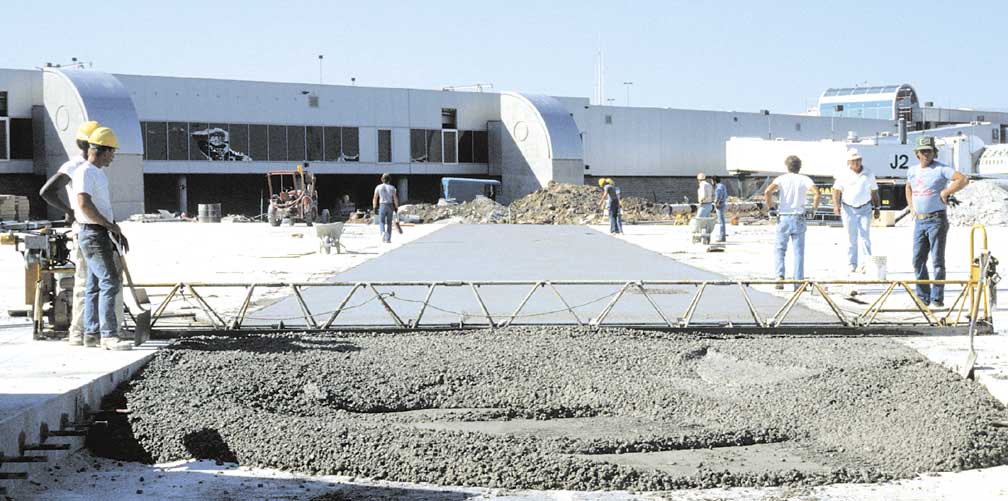

The GOMACO Hawkeye screed is designed for finishing a variety of projects, including driveways, streets, airport aprons or any flat slab.







Hawkeye Screed

Crowning connectors and locknuts are electroplated to prevent rust and corrosion. They are accurately machined to assure positive crown adjustment, uniform grade control and easy assembly.







Hawkeye Screed

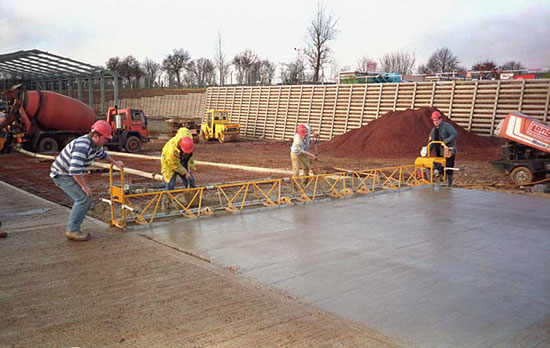

The standard width of the MV-18 screed is 11.5 ft. (3.51 m) and weighs 312 lbs. (141.5 kg). The optional AV-18 is 12.5 ft. (3.81 m) wide and weighs 270 lbs. (122.5 kg).
