GP-2600 Two-Track Applications



two track GP-2600

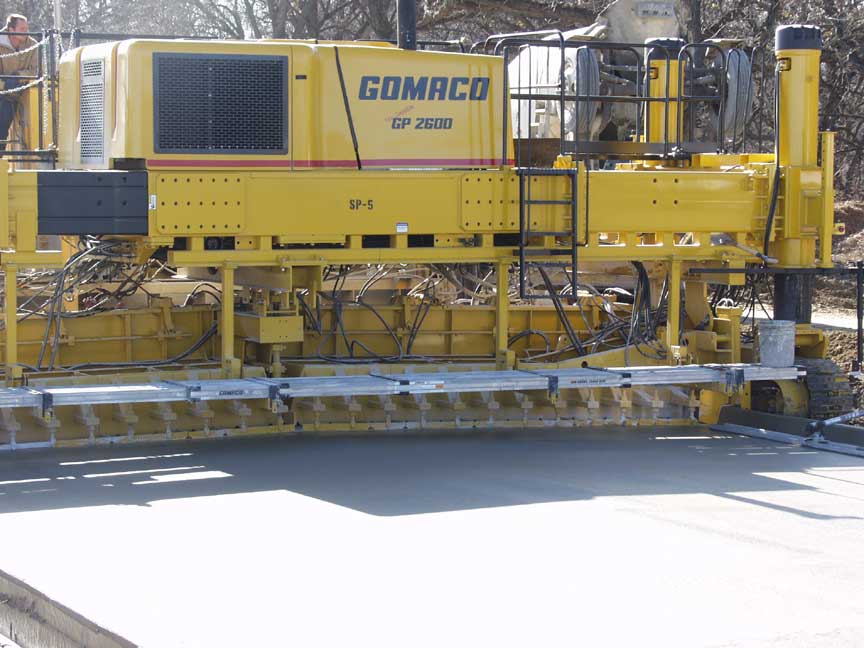

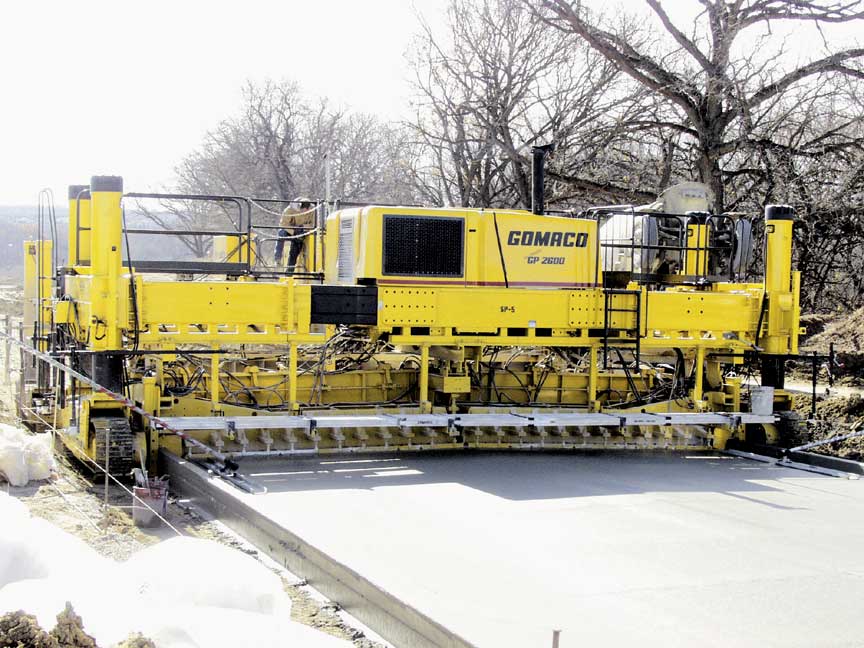

The GP-2600 has a modular telescoping frame that extends 6.5 feet (1.98 m) on the left side.







two track GP-2600

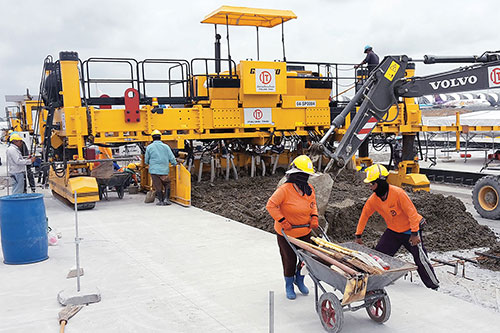

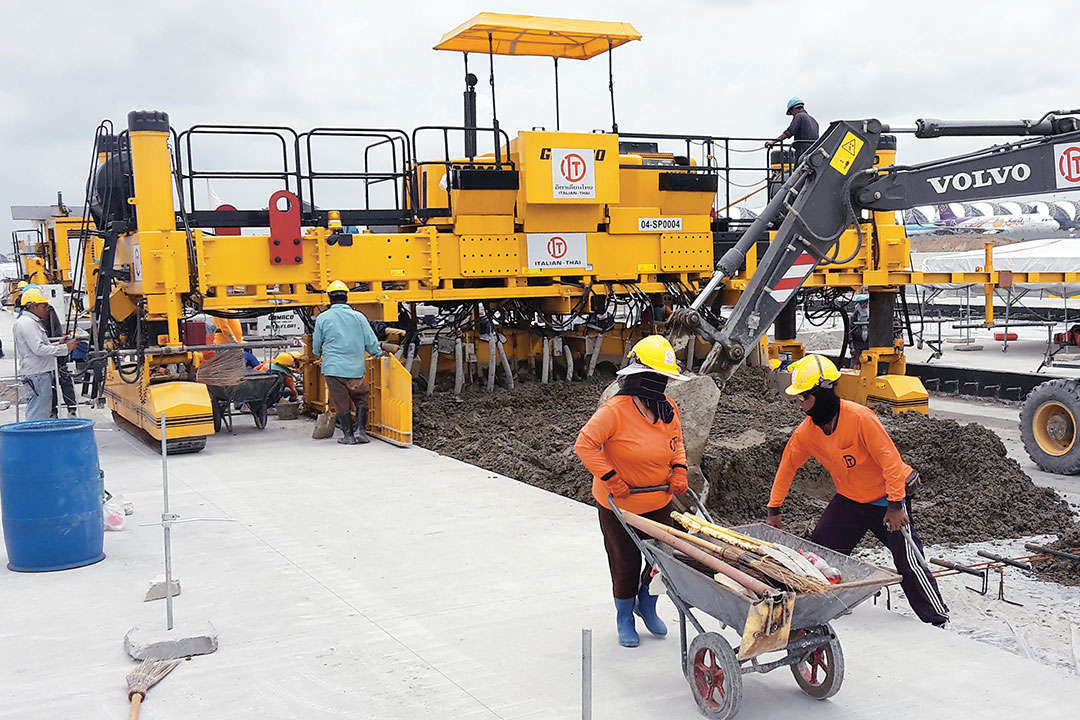

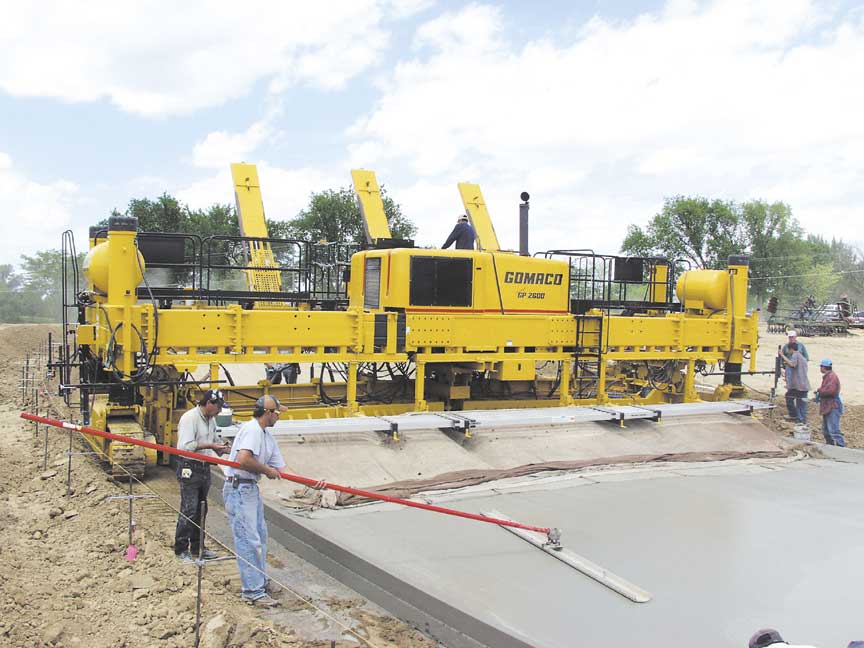

The expansion project continues at Suvarnabhumi Airport in Bangkok, Thailand. A two-track GOMACO GP-2600 slipforms a new 500 millimeter (19.7 in) thick apron at the airport as part of the expansion.







two track GP-2600

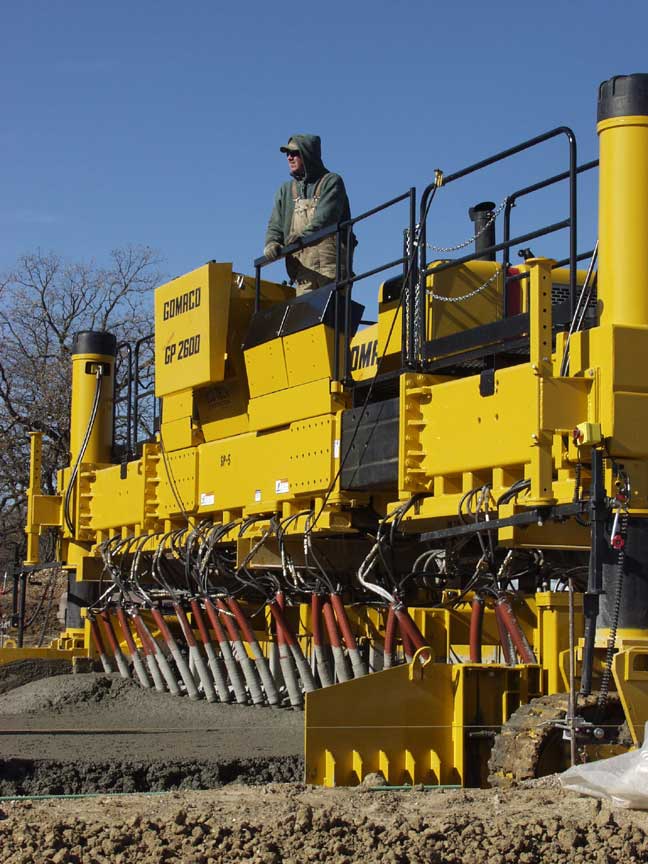

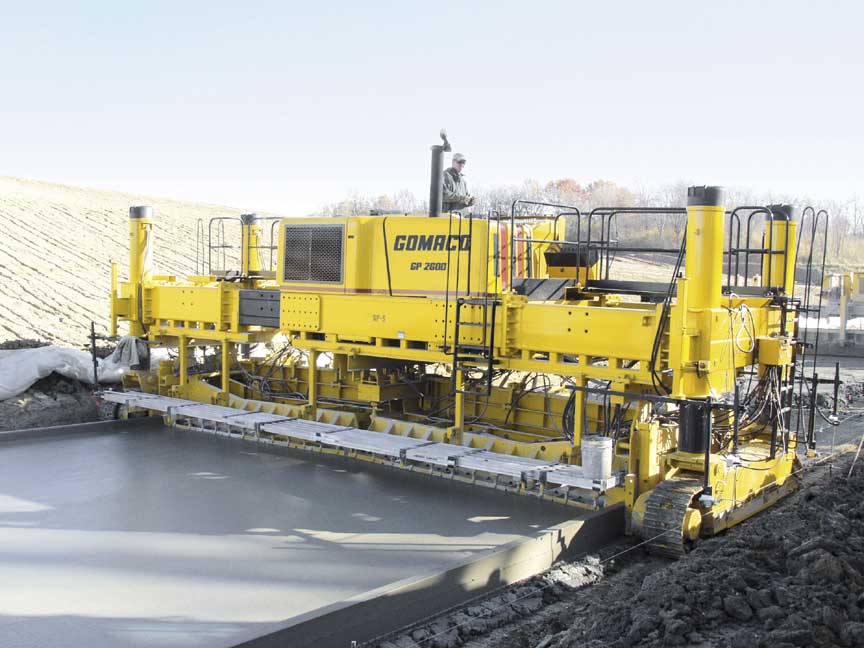

Hydraulically pressure-compensated sideplates provide edge control and consistent depth.







two track GP-2600

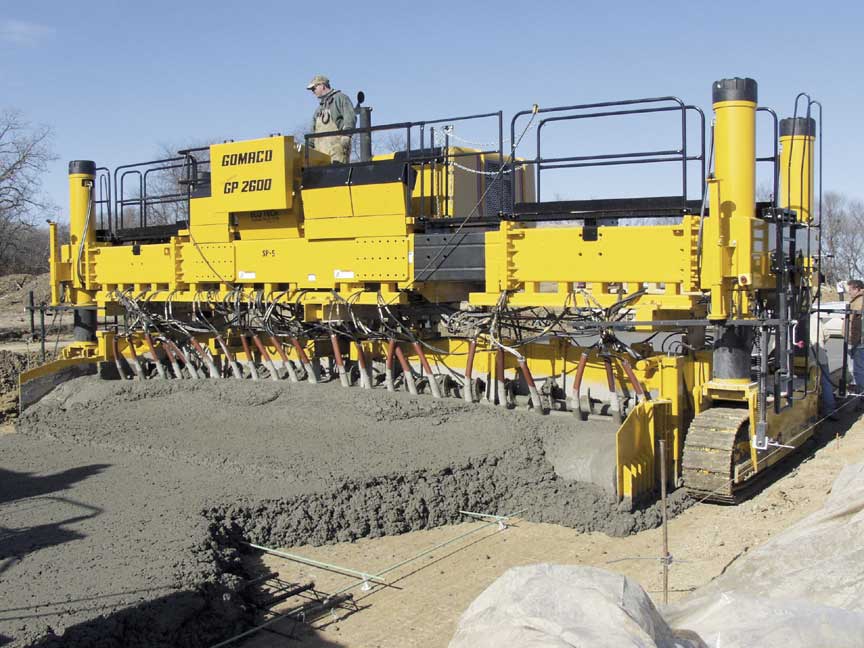

Three frame-mounted bar inserters on the front of this machine accurately place the transverse bars for the longitudinal joints. The inserters place the bars behind the vibrators. The front split auger on the GP-2600 spreads the concrete to a predetermined width. Both the right-hand and left-hand drive sections are independently controlled with variable speeds up to 62 rpm, for quick and accurate spreading of the concrete.







two track GP-2600

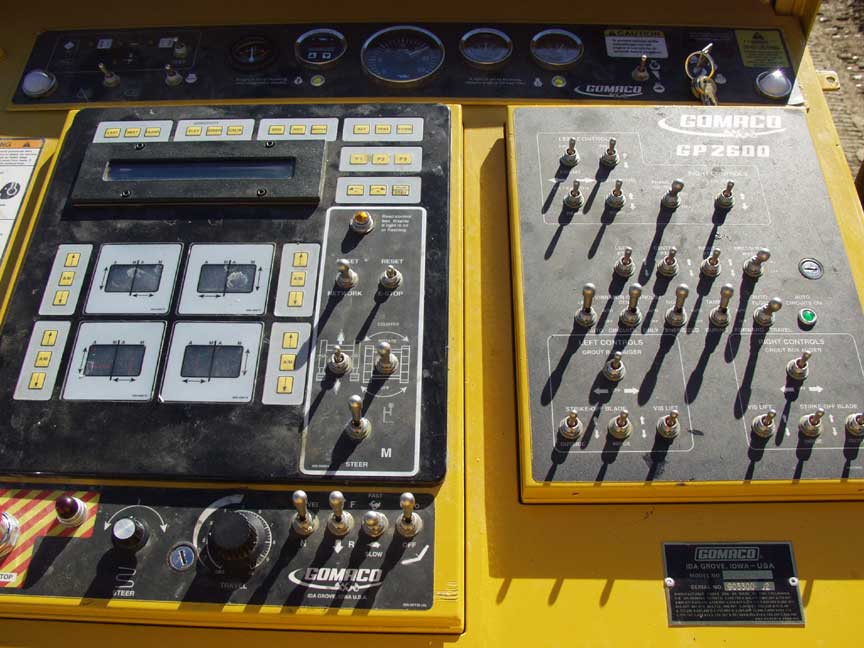

The G+ control system allows GOMACO’s slipform pavers, trimmers, and placer/spreaders to be controlled by an automated 3D machine control system and not by stringline. The 3D control system is adaptable to the G+ control system.







two track GP-2600

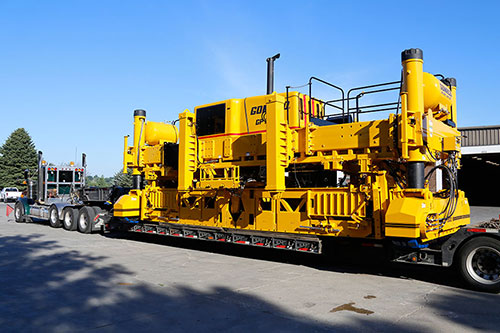

This GP-2600 two-track paver is shipping with the 5400 series mold attached. The machine is equipped with outtrigers to lift the machine for adjustments. The GP-2600 features a removable auger/strike-off, 5400 series tie bar inserter (TBI), and a manual trailing form side bar inserter (SBI).







two track GP-2600

A two-track GP-2600 slipforms a new roadway for a housing colony in Indore, India.

Read more about this project in GOMACO World 36.1.







two track GP-2600

This contractor's GOMACO RTP-500 rubber-tracked placer and two-track GP-2600 paver slipforms sugar beet pads in North Dakota.

Read more about this project in GOMACO World 39.1.







two track GP-2600

A GOMACO GP-2600 paver is equipped with a 5000 series open front, auger forward mold and three 5400 series bar inserters. It was used to pour 28 blocks of city street with integral curb in Windom, Minnesota.

Read more about this project in GOMACO World 42.1.







two track GP-2600

This contractor slipforms an airport project with their two-track GP-2600 paver in Oujda, Morocco. The paving passes were 24.6 ft. (7.5 m) wide and 13 in. (330 mm) thick.







two track GP-2600

GOMACO GP-2600 two-track pavers slipform side-by-side on an airbase project in Afghanistan. The pavers are followed by two T/C-600 texture/cure machines.







two track GP-2600

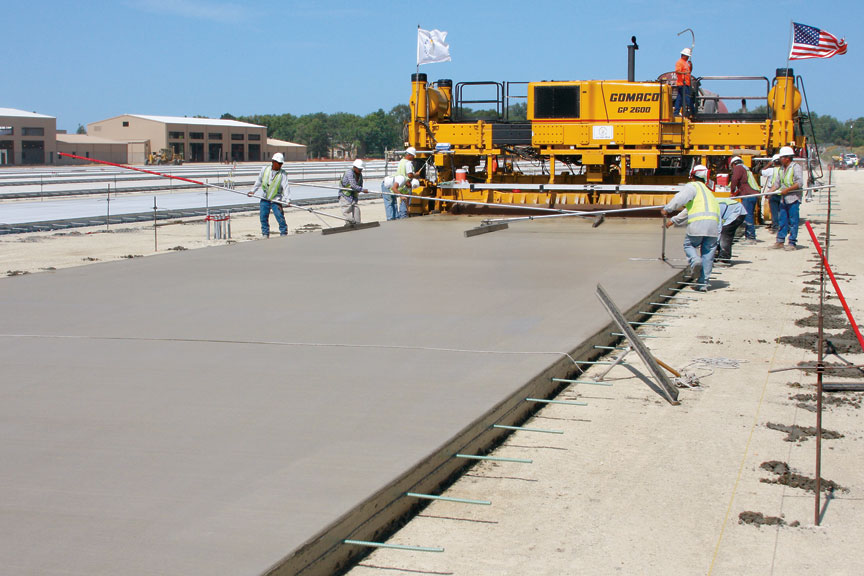

This 15 acre (6.1 ha) vehicle maintenance parking area will hold approximately 700 of Fort Riley's HMMWVs, or High Mobility Multipurpose Wheeled Vehicles.

Read more about this project in GOMACO World 36.3.







two track GP-2600

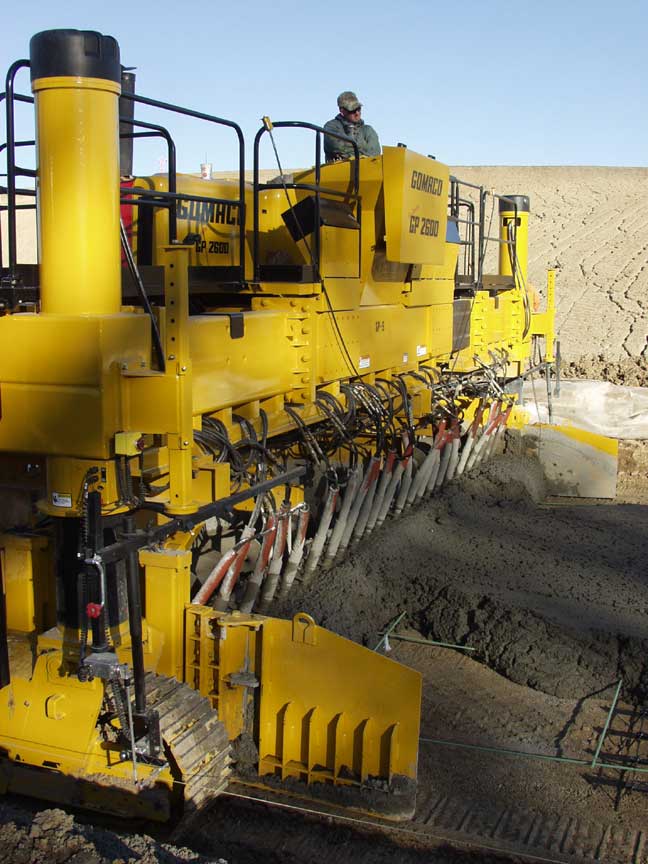

The GP-2600 has a unique telescoping frame and forward-mounted vibrator modules which tilt in to reduce shipping width.







two track GP-2600

The segmented fiberglass shroud provides ease in serviceability. One section lifts up to allow easy access to the engine and service points.







two track GP-2600

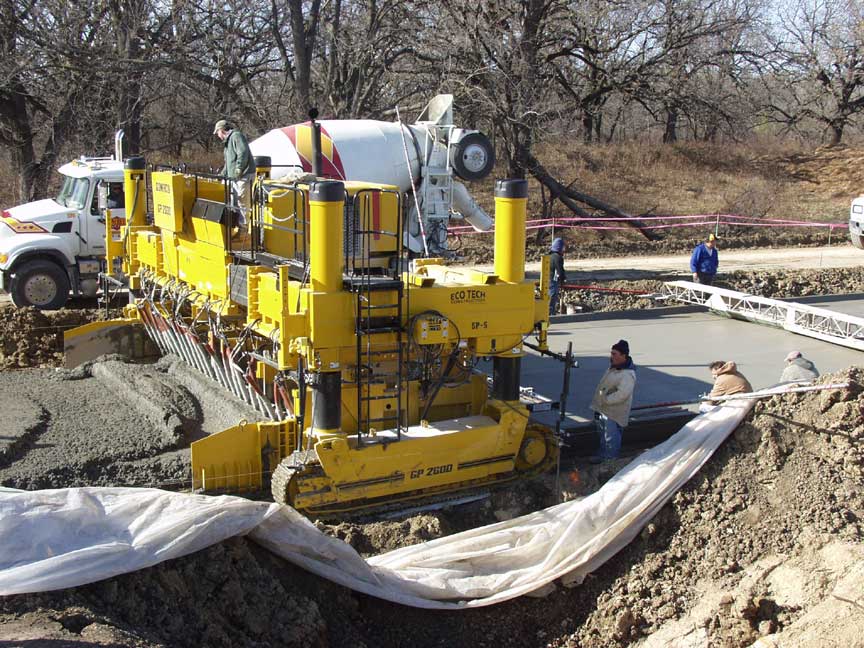

The two-track GP-2600 is slipforming a cul-de-sac with a 95 foot (29 m) inside radius. This machine is equipped with three frame-mounted bar inserters. This street in Wayne, Nebraska, is being slipformed full width with integral curb on both sides.







two track GP-2600

This contractor slipformed a new roadway complete with a roundabout, six percent grade, and a tank crossing through Fort Riley with a new GP-2600 paver.

Read more about this project in GOMACO World 36.3.







two track GP-2600

Superior rideability results have been job-proven time and time again by contractors throughout the world.

Read more about this project in GOMACO World 32.2.







two track GP-2600

Transportability is an important feature in the design of the GP-2600. The two-track will transport under 12 ft. (3.66 m) wide. The transport height is less than 10 ft. (3 m) without the mold and slightly over 10 ft. (3 m) with the mold attached.







two track GP-2600

The GP-2600 slipform paver is designed to meet the worldwide rideability standards in new and reconstruction of highway, streets, parking lots and airport pavements.







two track GP-2600

The GP-2600 paver slipforms a street 26 feet (7.92 m) wide with six inch (152 mm) integral curb on both sides of the street.
