GT-3200 slipform paver

GT-3200 Applications



GOMACO GT-3200 sidewalk paver

The GT-3200 will slipform curb and gutter, barrier wall, and flat slabs. Its hydraulically telescoping frame allows up to 36 inches (914 mm) of lateral right leg movement to accommodate changing job-site requirements and profiles.





GT-3200 slipform paver

The GT-3200 features a 5.8 foot (1.77 m) long GOMACO-designed charging auger for concrete delivery to the hopper.





GT-3200 slipform paver

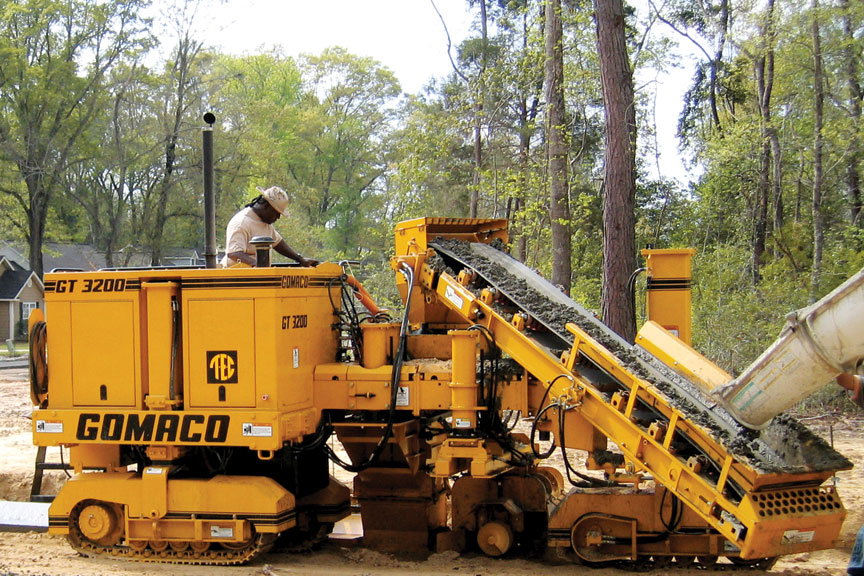

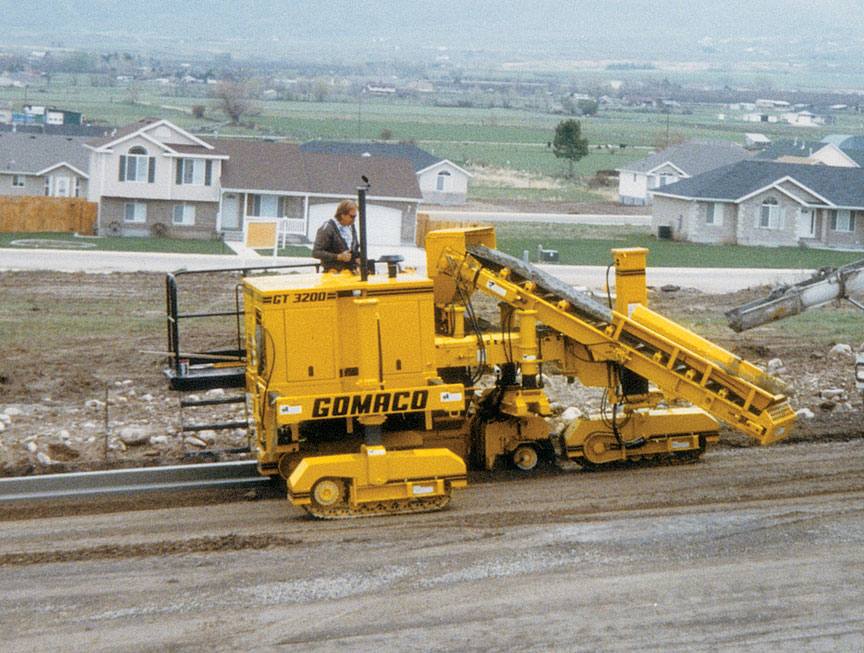

GOMACO’s GT-3200 can also be equipped with an optional 13.5 foot (4.1 m) long charging conveyor to move concrete to the hopper.





GT-3200 slipform paver

The operator’s platform provides an ample view of the entire slipforming operation.





GT-3200 slipform paver

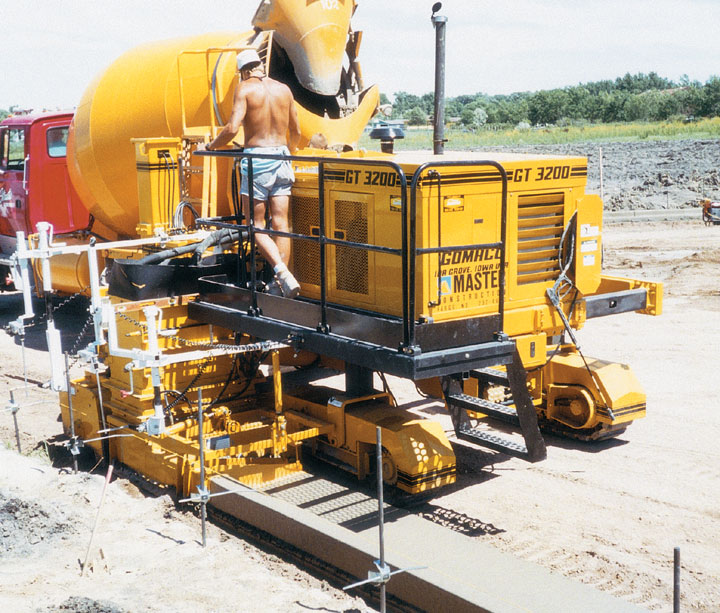

The GT-3200 features smooth G+ controlled travel for slipforming curb and gutter.





GT-3200 slipform paver

A high-pressure or low-pressure water system is available for easy cleanup.





GT-3200 slipform paver

The auger features a latched clean-out door at the receiving end of the hopper.





GT-3200 slipform paver

The GT-3200 can be equipped with three pneumatic tires.





GT-3200 slipform paver

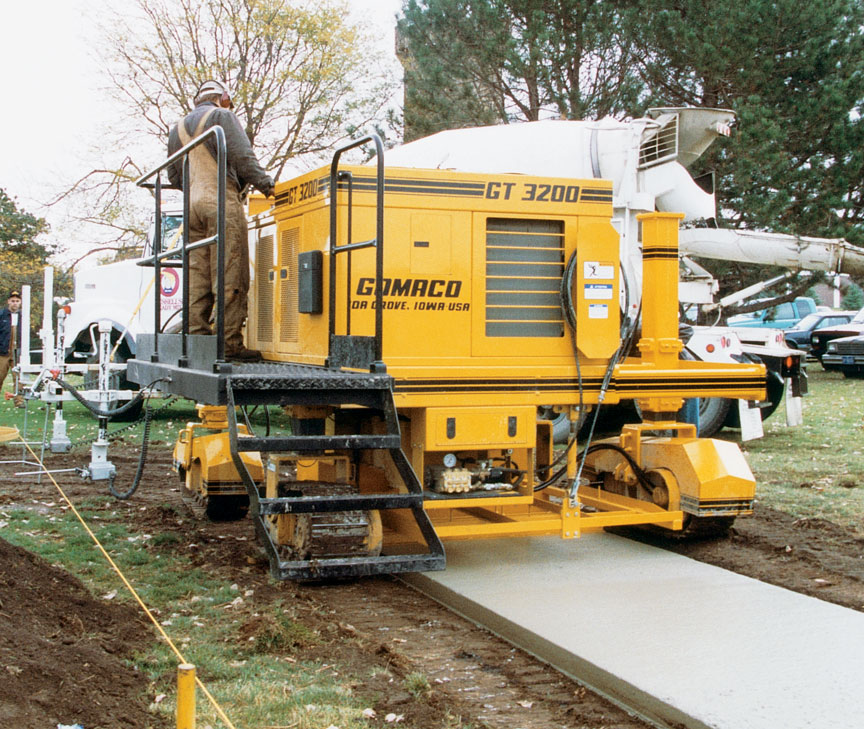

The GT-3200 can be purchased as a minimum-clearance sidewalk paver.





GT-3200 slipform paver

Stand-up curb is the first step for this street rehabilitation project.





GT-3200 slipform paver

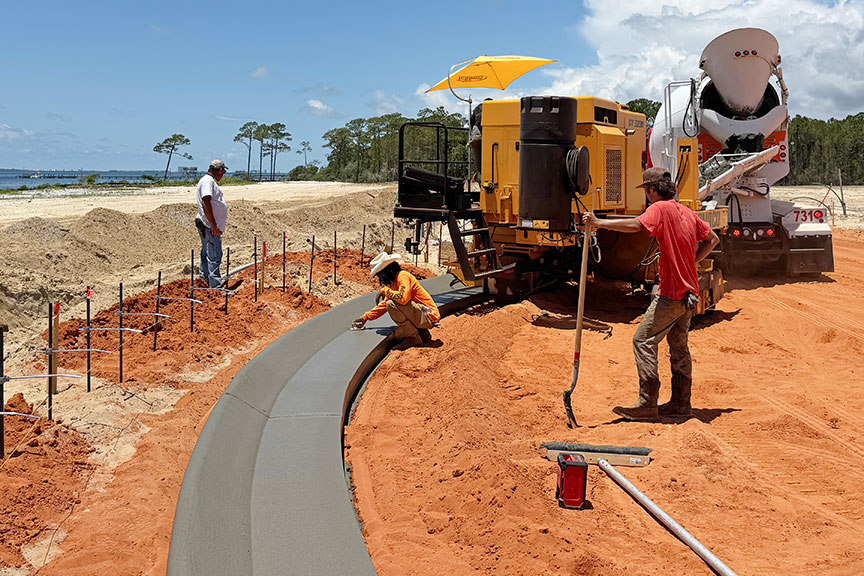

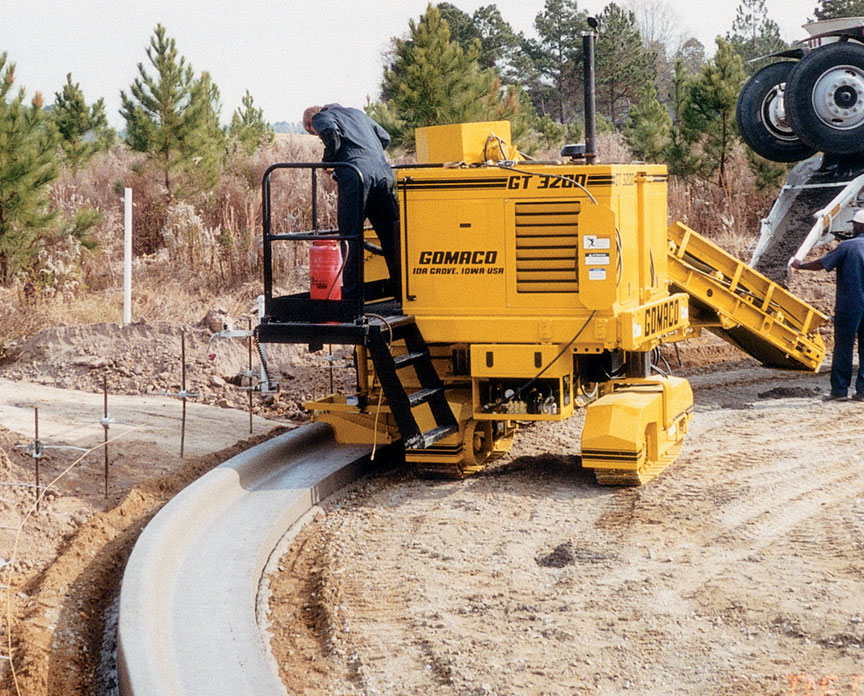

The GT-3200 slipforms curb and gutter around a radius on a subdivision project.





GT-3200 slipform paver

The GT-3200 slipforms a walking trail with an undermounted mold.





GT-3200 slipform paver

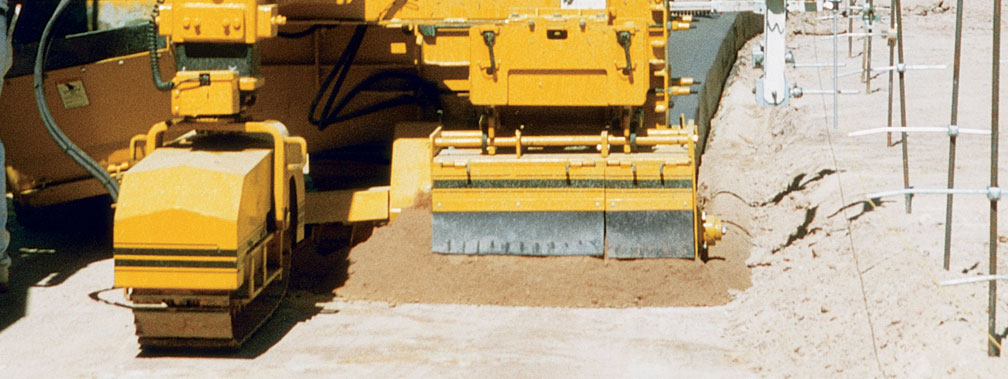

The trimmerhead has ample power to trim crushed gravel base.





GT-3200 slipform paver

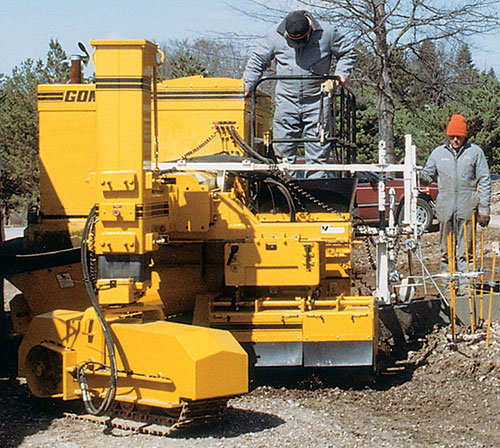

The operator has an excellent view of both the trimmerhead and mold when using the simultaneous trim/pour concept.





GT-3200 slipform paver

The GT-3200 can be controlled with 3D stringless machine guidance.





GT-3200 slipform paver

Roll-over curb is one of the many profiles a GT-3200 can slipform.





GT-3200 slipform paver

The GT-3200’s small size makes it ideal for parking lot and subdivision projects.





GT-3200 slipform paver

The GT-3200’s mold can be equipped with an optional curb depressor when slipforming curb and gutter.





GT-3200 slipform paver

GOMACO’s GT-3200 features the simultaneous trim/pour concept for maximum concrete utilization. The trimmerhead has 36 inches (914 mm) of sideshifting and 14 inches (356 mm) of hydraulic vertical lift adjustment capabilities.





GT-3200 slipform paver

An optional 13.5 foot (4.1 m) long conveyor is available instead of an auger.





GT-3200 slipform paver

The molded fiberglass shroud on the GT-3200 is lightweight and provides easy access to the engine and other components. Overall width of the machine is only 8.5 feet (2.59 m).





GT-3200 slipform paver

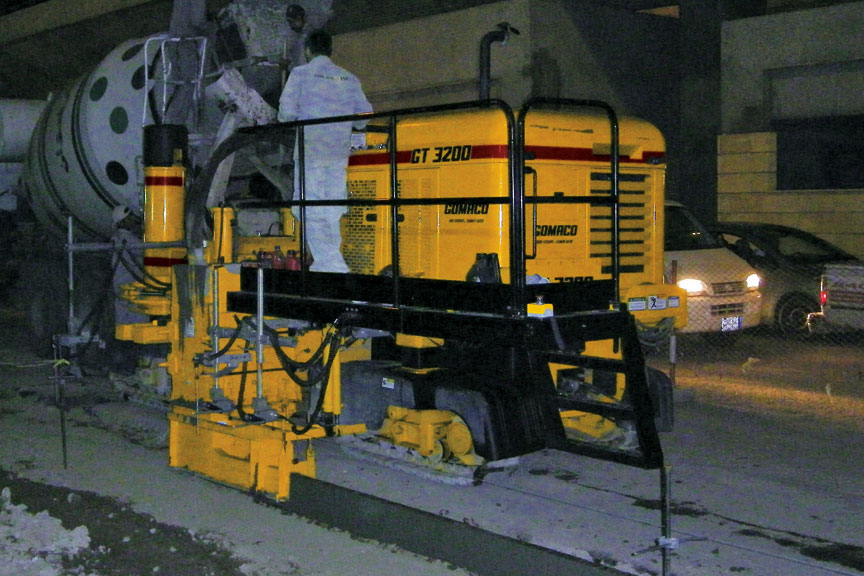

This contractor slipforms stand-up curb with their new GT-3200 curb and gutter machine in Jeddah, Saudi Arabia.





GT-3200 slipform paver

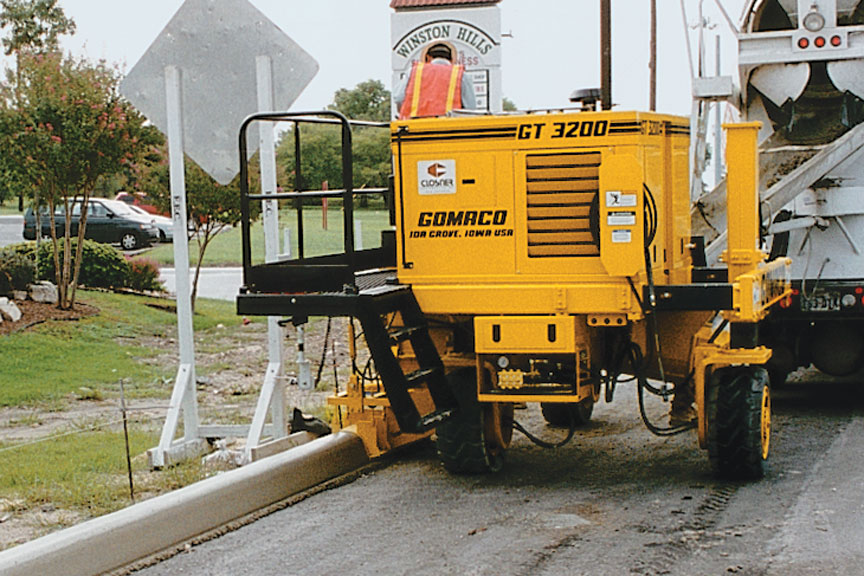

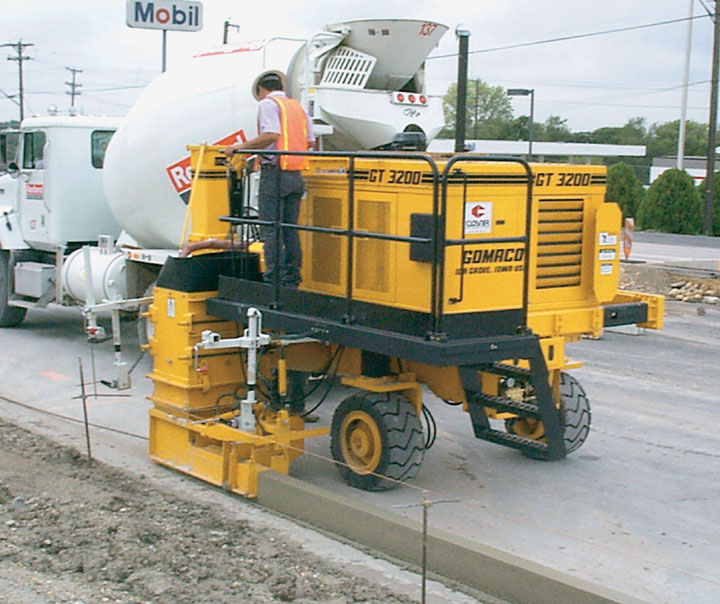

Optional rubber tires are available instead of the gear-driven crawler tracks.





GT-3200 slipform paver

New curb and gutter goes around a radius for a brand new roadway project.





GT-3200 slipform paver

The GT-3200 is equipped with a 91 hp (67.9 kW) Tier III C4.4T Caterpillar® diesel engine, providing more horsepower than any machine in its class.





GT-3200 slipform paver

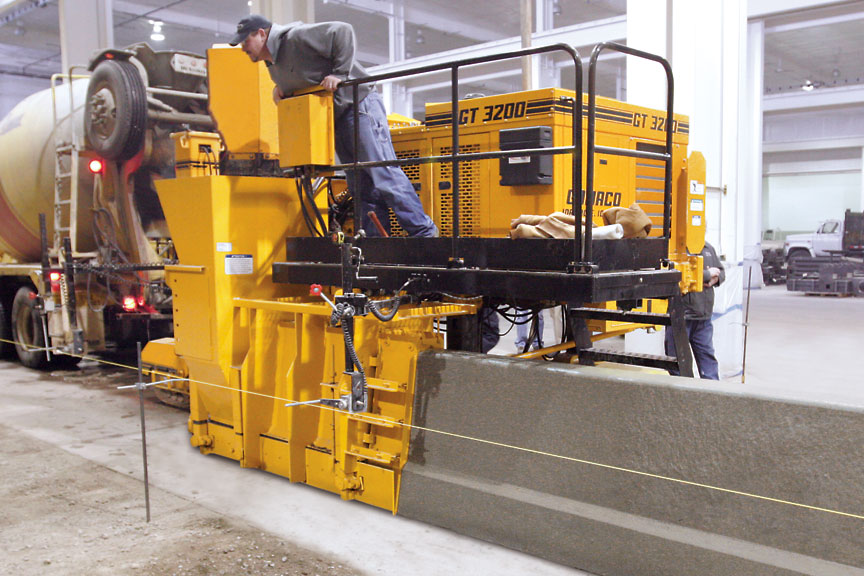

The GT-3200 is capable of slipforming safety barrier up to 40 in. (1 m) tall.





GT-3200 slipform paver

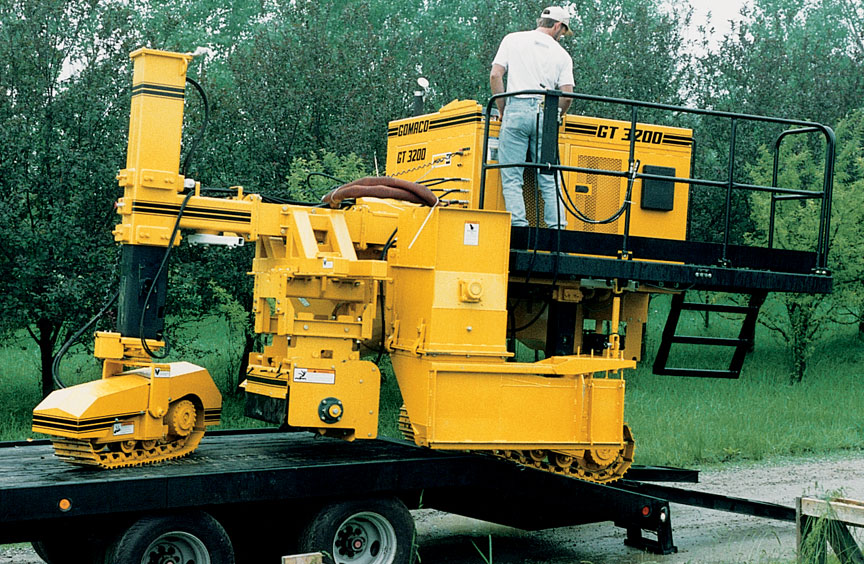

Compact size and maneuverability make the GT-3200 very easy to transport from one job site to another. The GT-3200, with the mold attached, loads onto a standard trailer and transports under legal haul limits.







GT-3200 slipform paver

The front track on the GT-3200 features a unique rotary actuator system which allows the track to turn up to 80 degrees either side of the straight-ahead line and does not operate on hydraulic cylinders. This feature provides excellent maneuverability and tight radius capability.







GT-3200 slipform paver

The GT-3200 is carefully designed to give years of dependable and safe service.
