RTP-500 Placing Conveyor Provides High-Production Results

High-production results are achieved with the versatility of the long placing conveyor.

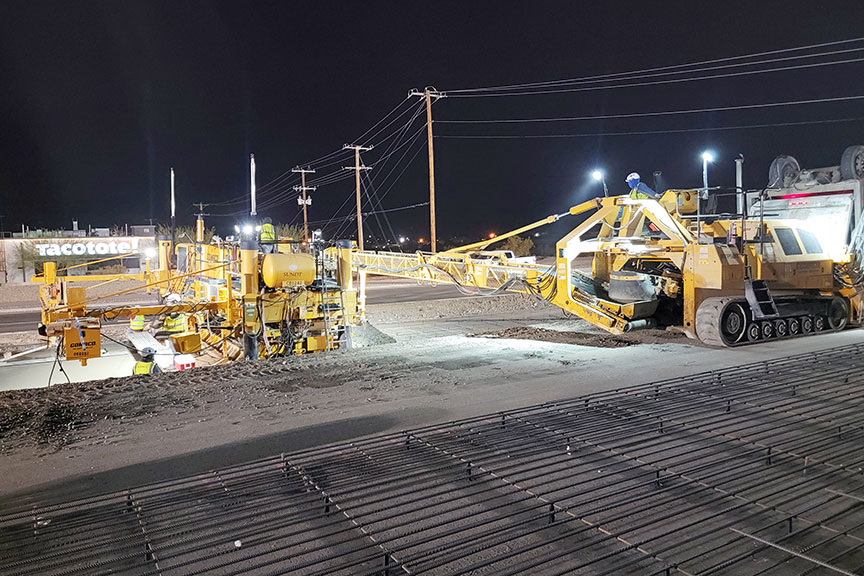

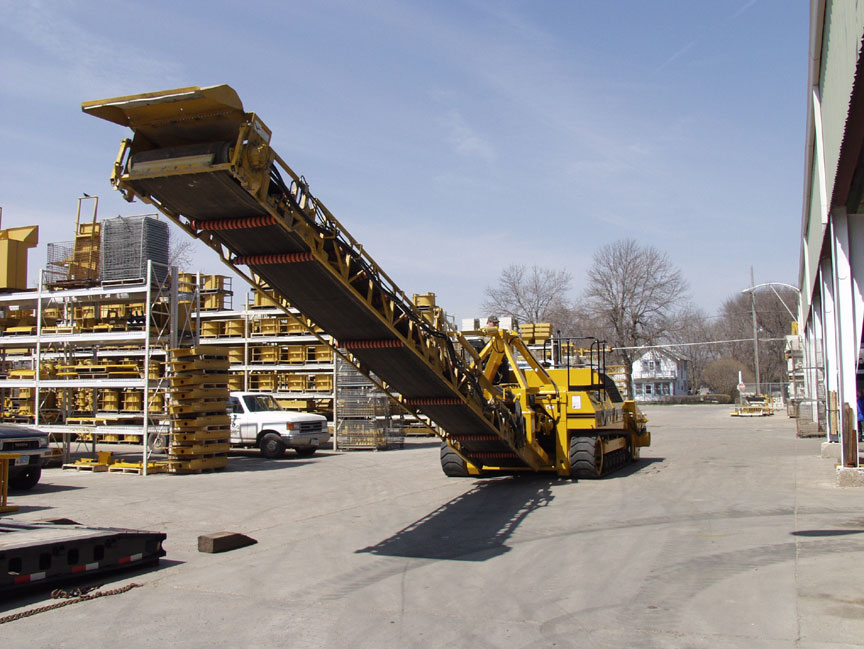

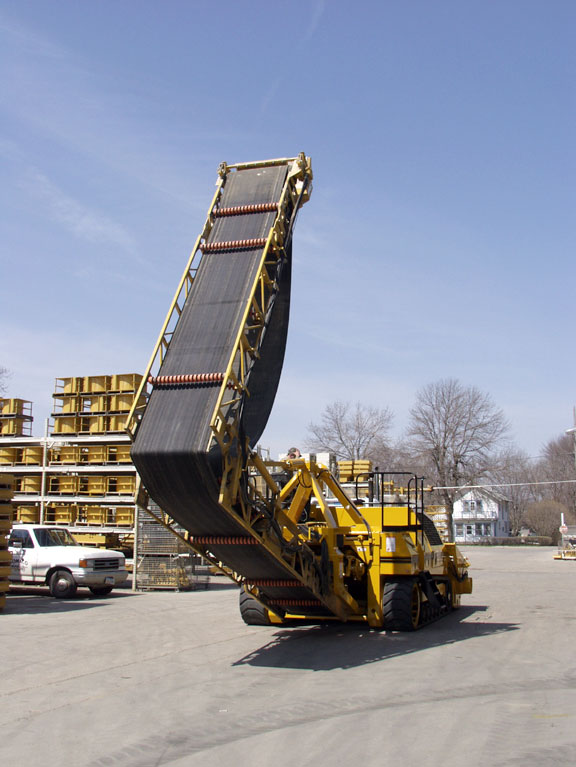

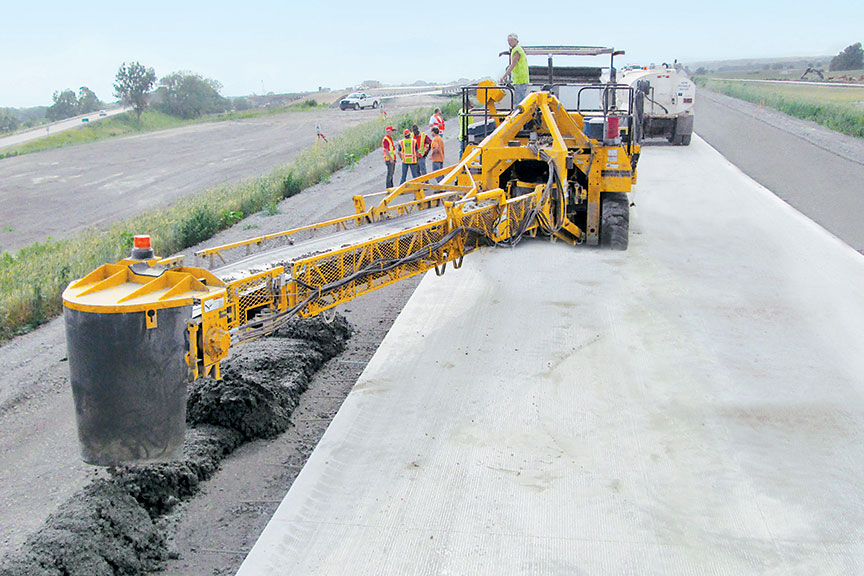

The conveyor is 35 feet (10.67 m) long and 36 inches (914 mm) wide, with 170 degree hydraulic swing, and 12 feet (3.66 m) of hydraulic elevation adjustment.

The placing conveyor allows for fast and accurate material placement from the haul road, over the stringline or other obstacles, and reaches across the grade. The conveyor deflector directs the flow of concrete at the discharge end of the conveyor.

























GOMACO RTP-500 Rubber-Tracked Placer
7 minutes 52 seconds





GOMACO Rock Hopper With GOMACO RTP-500 Rubber-Tracked Placer
6 minutes 40 seconds





GOMACO RTP-500 Rubber-Tracked Placer
Detroit Metropolitan Wayne County Airport; Romulus, Michigan
12 minutes 21 seconds

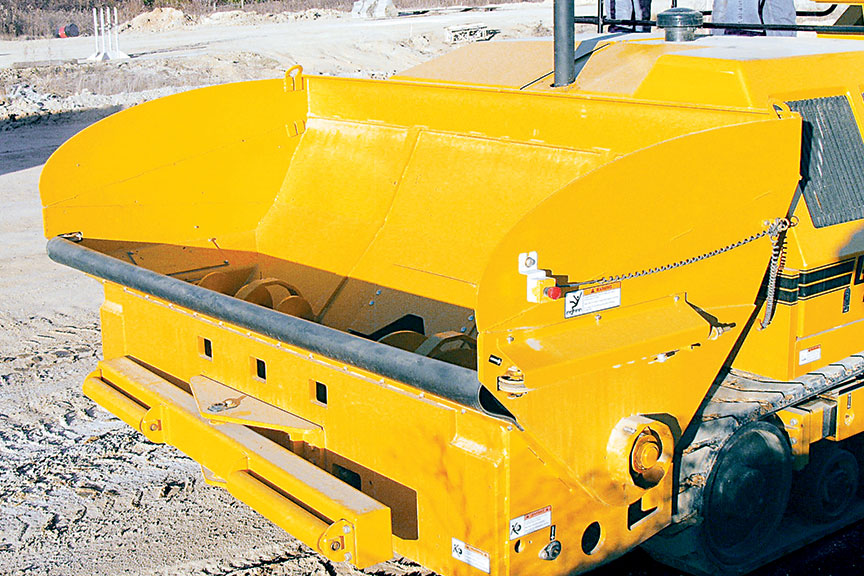

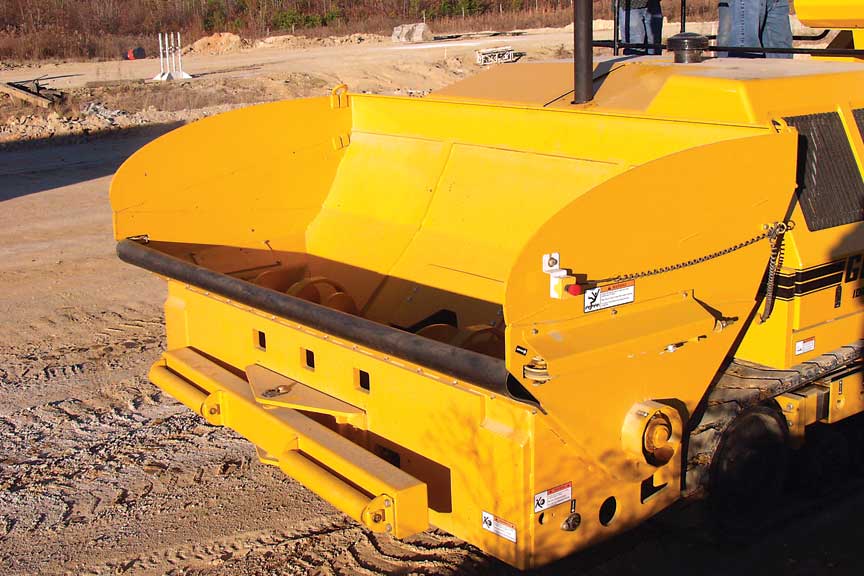

Receiving Hopper Designed For Maximum Throughput

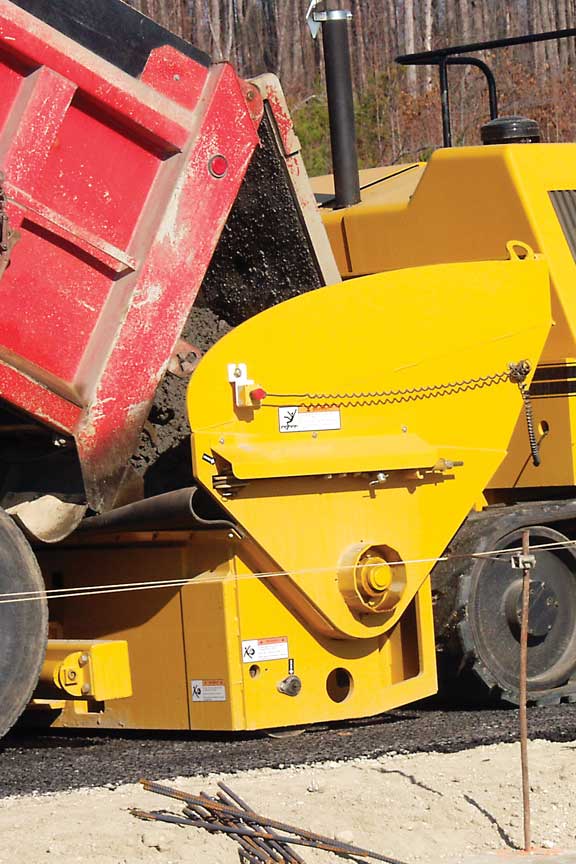

The auger-style receiving hopper is 10.75 feet (3.28 m) wide, and has a working capacity of 4.75 yd3 (3.63 m3). It’s built with the strength and durability for handling high-volume throughput for end-dump paving operations. The hopper features a 12 inch (305 mm) hydraulic vertical adjustment to allow for variable gate height on dump trucks. A 14 inch (356 mm) diameter auger with split flighting and speeds up to 88 rpm quickly moves the material to the transfer conveyor. Shaft-mounted eccentric vibrators provide vibration for emptying the hopper after each load and increased flowability. The hopper/truck seal is supported by a hydraulically tensioned cable for consistent sealing on a wide variety of dump truck bodies. The 36 inch (914 m) wide, 16.6 foot (5.06 m) long transfer conveyor moves material to the rear placing conveyor at speeds up to 608 feet per minute (185 mpm). Both conveyors are activated with a single switch and have individual speed controls.





RTP-500 Rubber-Tracked Placer

The hopper features a 12 inch (305 mm) hydraulic vertical adjustment to allow for variable gate height on dump trucks. The hopper/truck seal moves out for additional cleaning.







RTP-500 Rubber-Tracked Placer

The RTP-500 has tractive power for pushing trucks and its rubber tracks go where tires do not dare.







RTP-500 Rubber-Tracked Placer

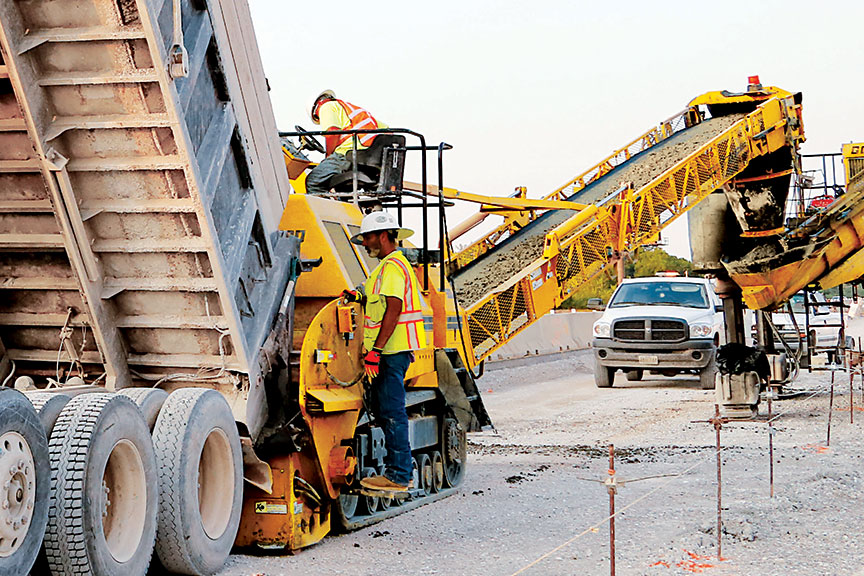

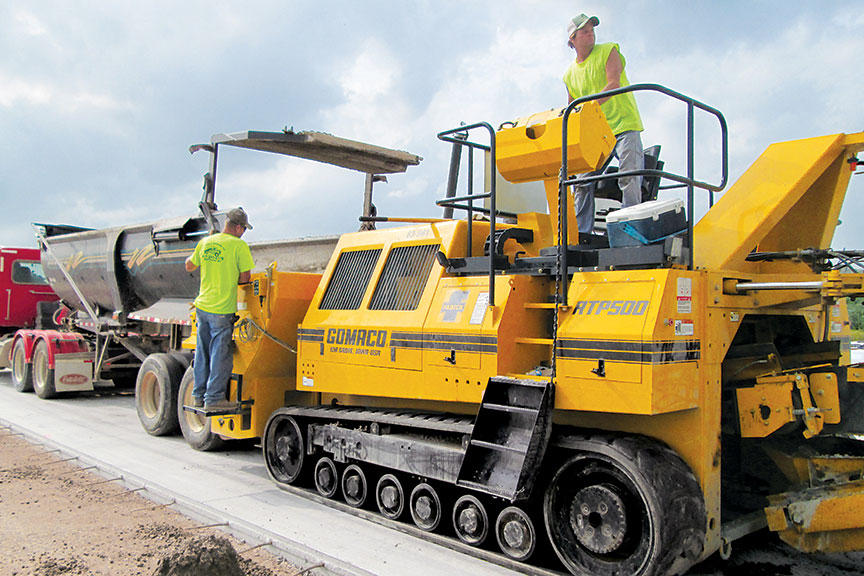

The step on the side of the hopper provides a spot for the truck control coordinator to monitor the hopper as concrete is dumped, along with being able to guide the trucks as they back into position for the RTP-500. The hopper remote control allows the truck control coordinator to raise and lower the hopper, turn the vibrators on or off, adjust the variable gate height, operate the hitch lock, and turn the high-pressure water on or off.

Read more about this project in GOMACO World 42.1.







G+® Controls

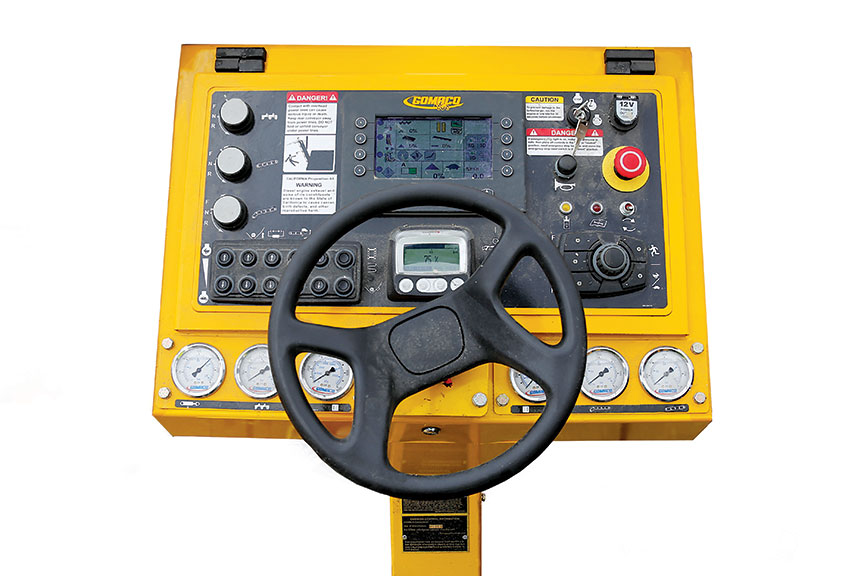

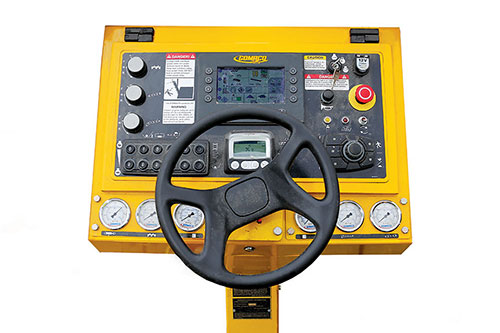

RTP-500 Rubber-Tracked PlacerA flat-panel 6.5 inch (165 mm) anti-glare display screen is provided with sensor-controlled backlight levels for superior visibility in all operating conditions. The screen is rugged and shock resistant in its construction to protect against dust, moisture, and rain. G+ provides a full color display on the control panel to illustrate the various aspects of the placer operation. Newly designed icons and color graphics make it easy to understand and identify the targeted functions. G+ controls feature a detailed fault history with the time stamp, date, and information to track when each fault occurred. GOMACO’s G+ control system has been proven around the world.

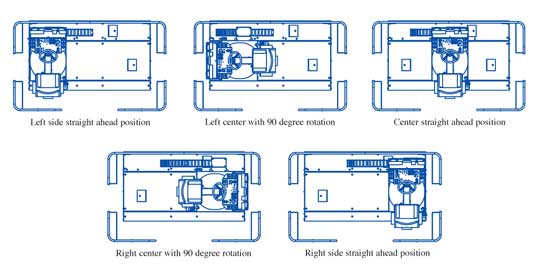

Console Positioning Versatility

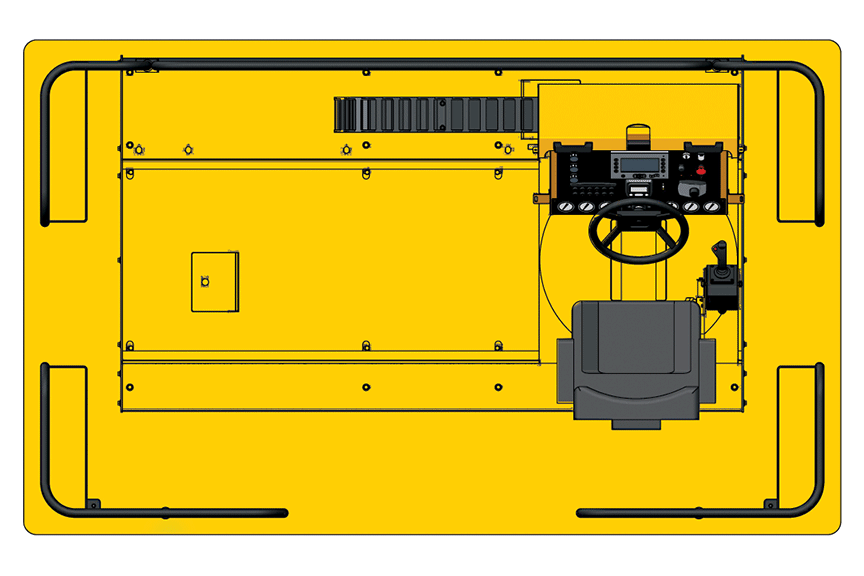

The operator’s platform provides a panoramic view of the entire operation. The console and chair roll from left to right on the platform to provide more comfort and visibility for the operator. The versatile console can be set at five different positions. It can be positioned straight forward or turned 90 degrees to the left or right.





RTP-500 Rubber-Tracked Placer

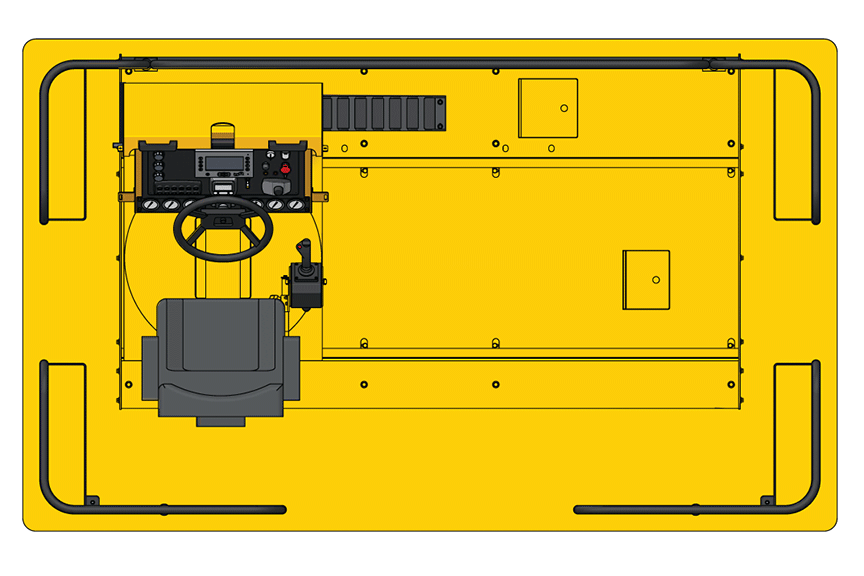

Left side straight ahead position





RTP-500 Rubber-Tracked Placer

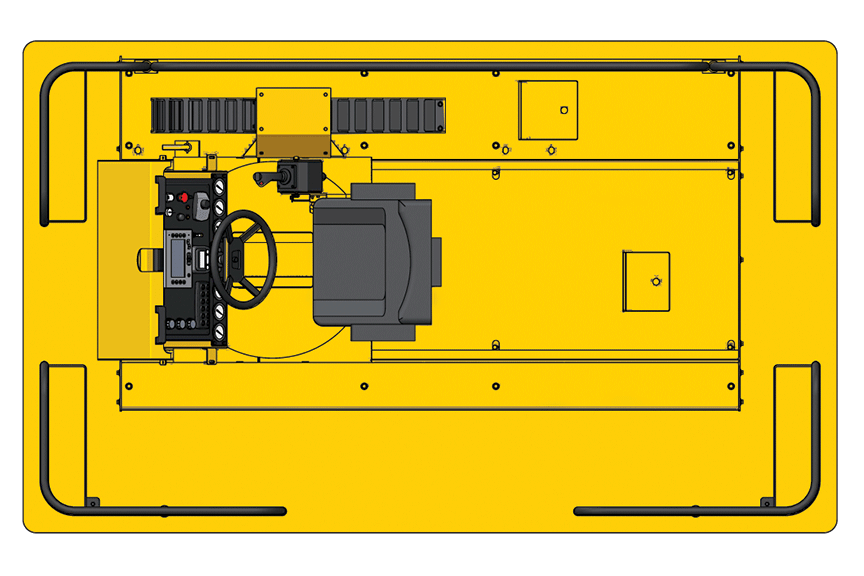

Left center with 90 degree rotation





RTP-500 Rubber-Tracked Placer

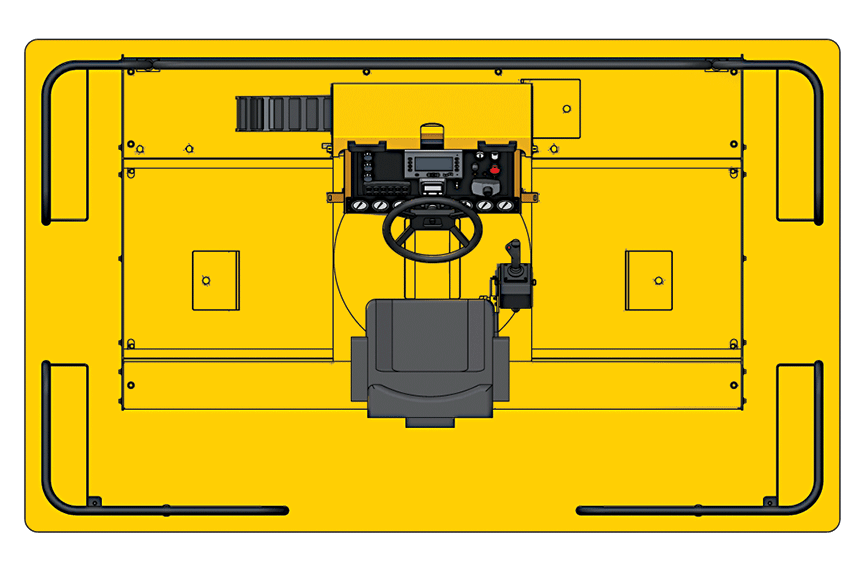

Center straight ahead position





RTP-500 Rubber-Tracked Placer

Right side straight ahead position





RTP-500 Rubber-Tracked Placer

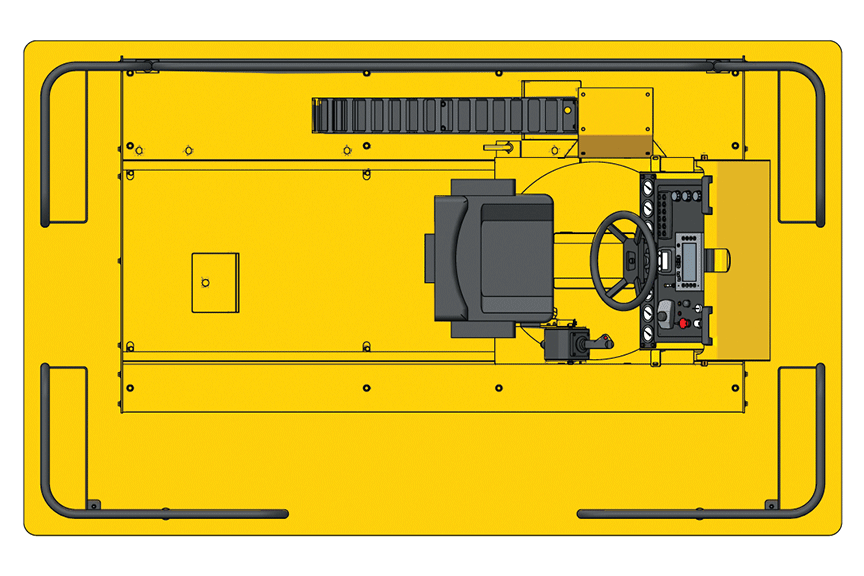

Right center with 90 degree rotation



















RTP-500 Rubber-Tracked Placer

The RTP-500 with its 19 inch (483 mm) wide and 13.5 feet (4.11 m) long rubber placer tracks can traverse any terrain to get the job done





RTP-500 Rubber-Tracked Placer

Placing accuracy with the discharge conveyor is accomplished with joystick control next to the operator’s chair.









High-Volume Placing With High-Speed Mobility

RTP-500 Rubber-Tracked Placer

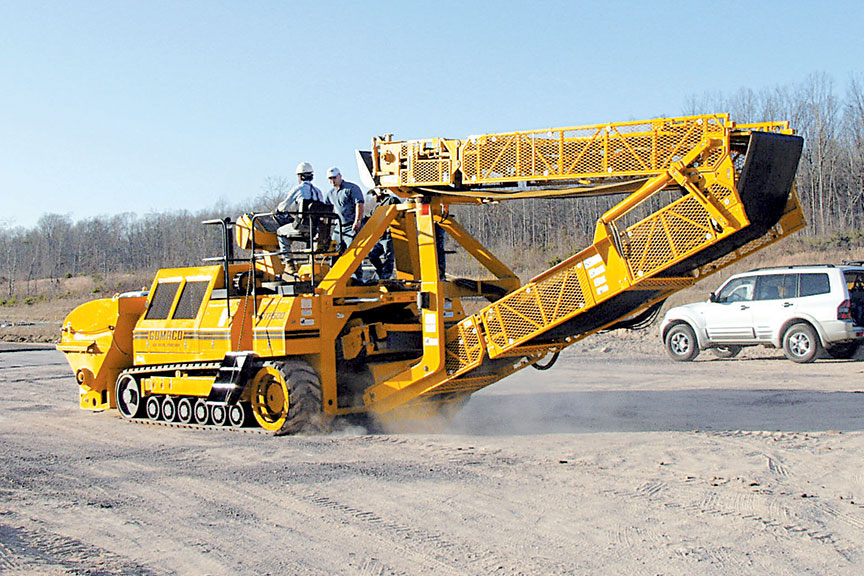

Fast Job-Site Mobility with Rubber Tracks

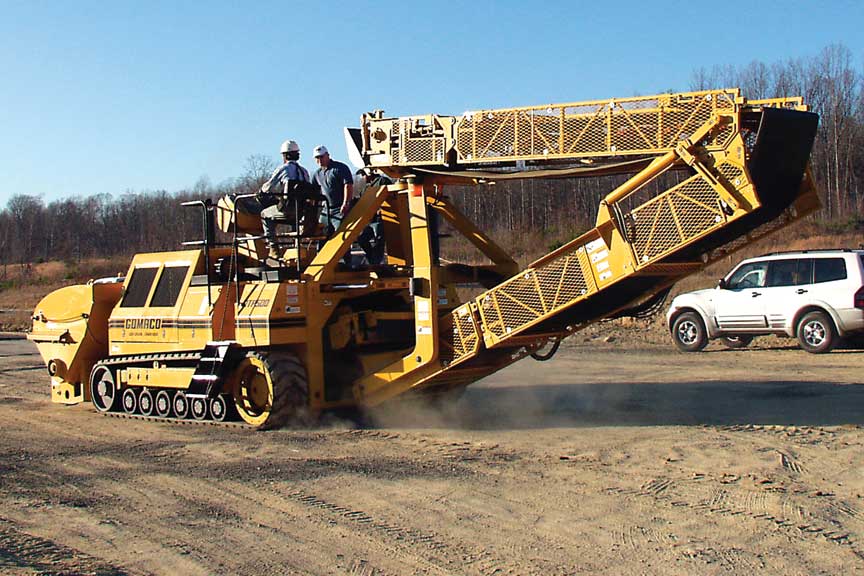

The GOMACO RTP-500, powered by a John Deere 6068H turbocharged diesel engine, has fast job-site mobility, with a travel speed up to seven miles per hour (11 kph), and an operating speed up to 110 feet per minute (33.5 mpm). The rubber tracks can go where rubber tires don’t dare.







RTP-500 Rubber-Tracked Placer

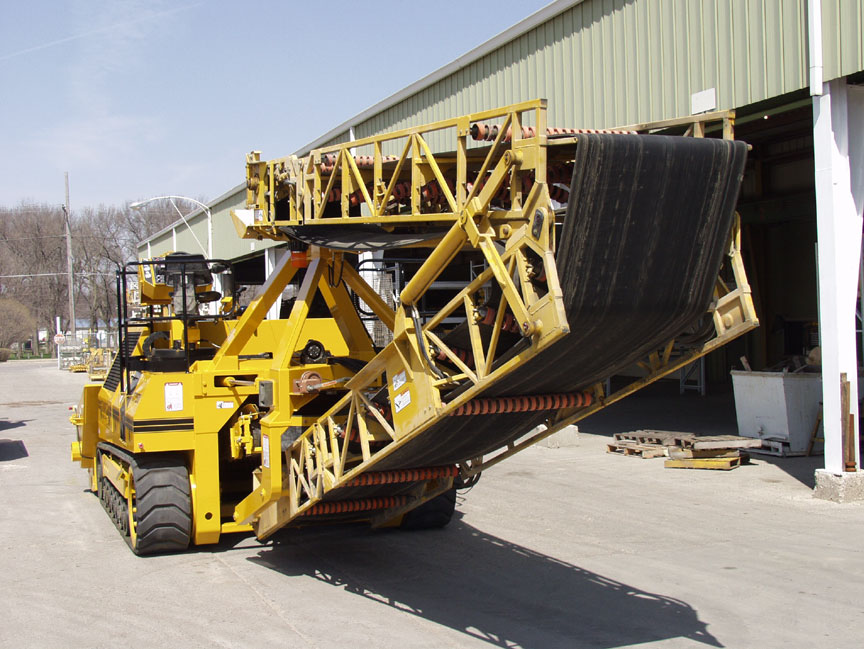

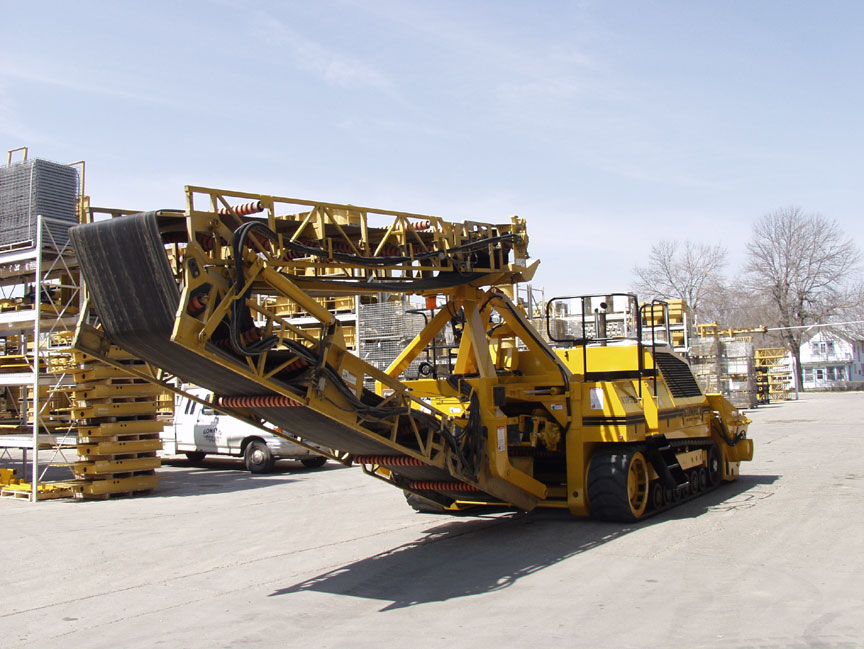

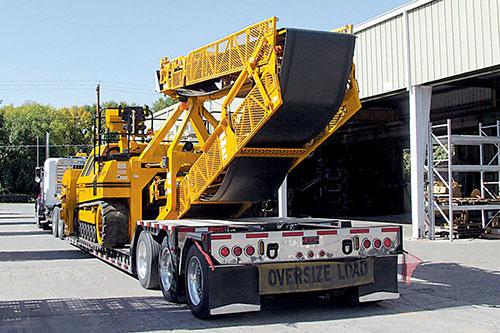

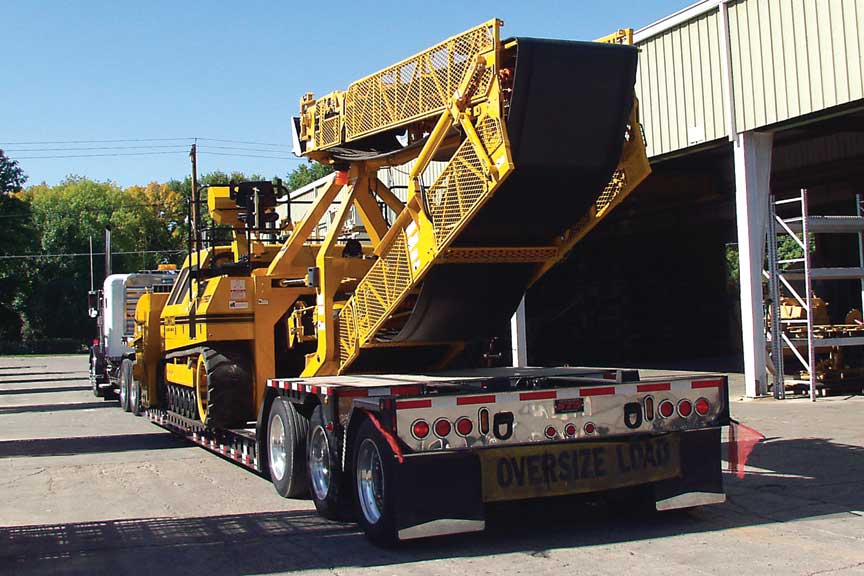

Hydraulically Folding Rear Conveyor Minimizes Transport Requirements

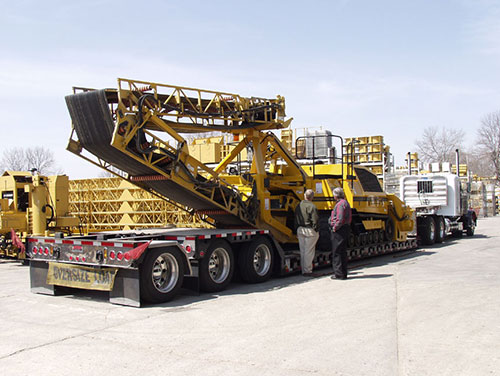

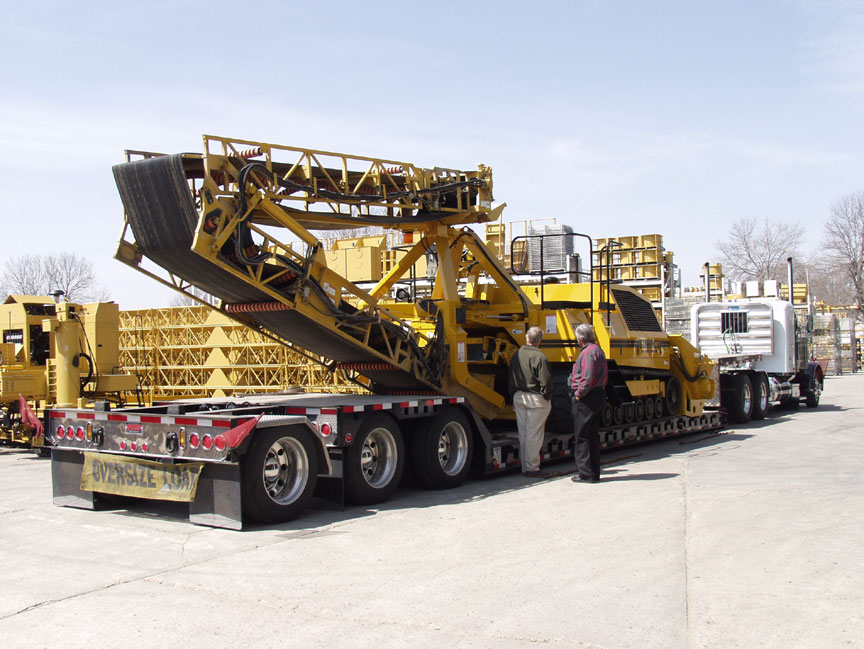

The hydraulically folding rear conveyor minimizes the transport requirements on the RTP-500. The overall shipping length is 37.25 feet (11.35 m), width is 11.8 feet (3.6 m) with the hopper attached, 10.3 feet (3.14 m) without the hopper, and a height of 11.7 feet (3.57 m) with the conveyor folded.











Versatility

GOMACO’s RTP-500 rubber-tracked placer provides more versatility by being able to place a variety of materials for different applications.



RTP-500 Rubber-Tracked Placer

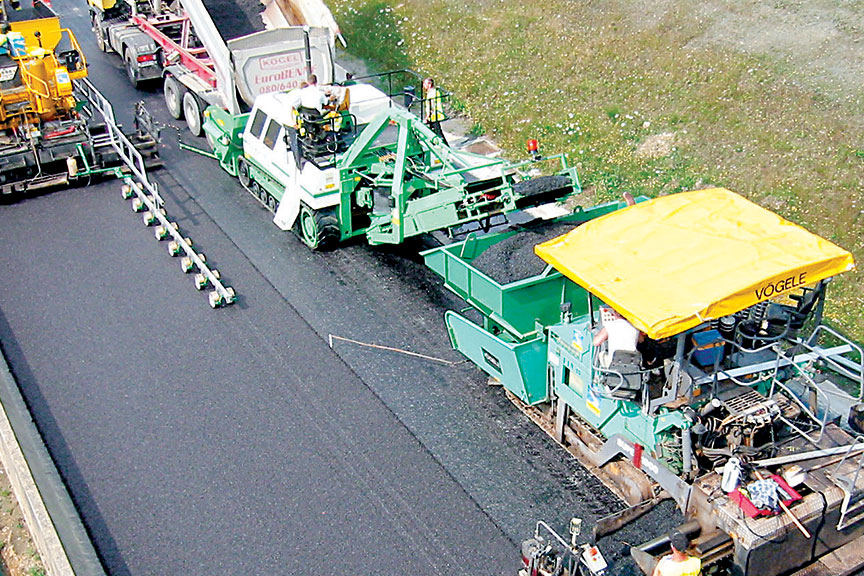

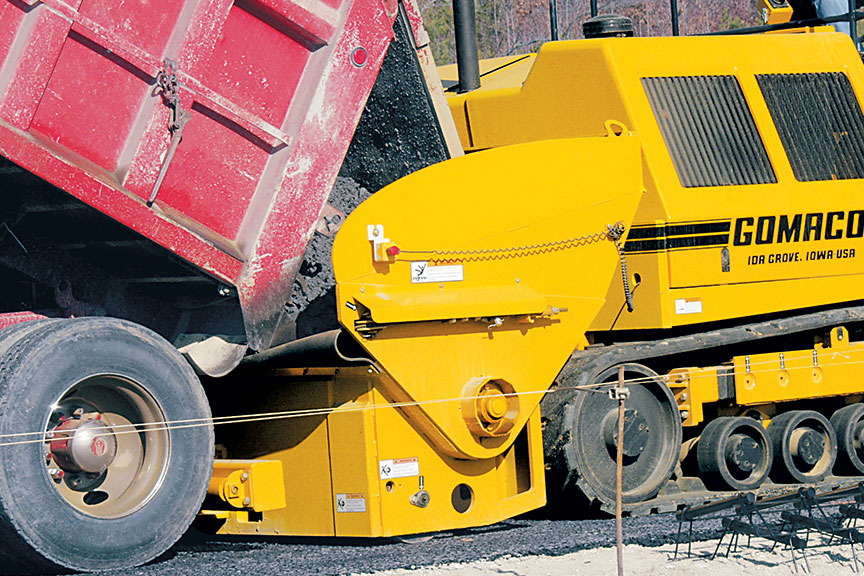

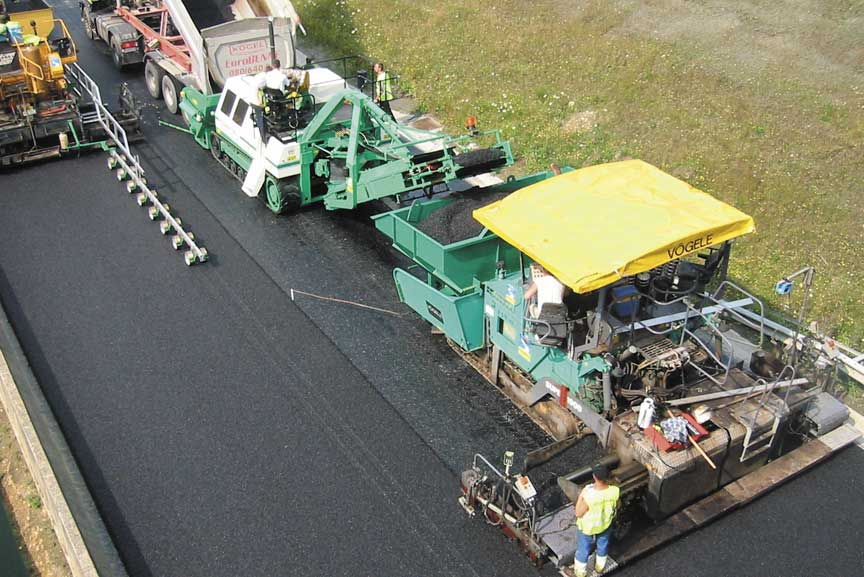

This RTP-500, equipped with heat-resistant belts, is used in the placement of asphalt on this mainline paving project.







RTP-500 Rubber-Tracked Placer

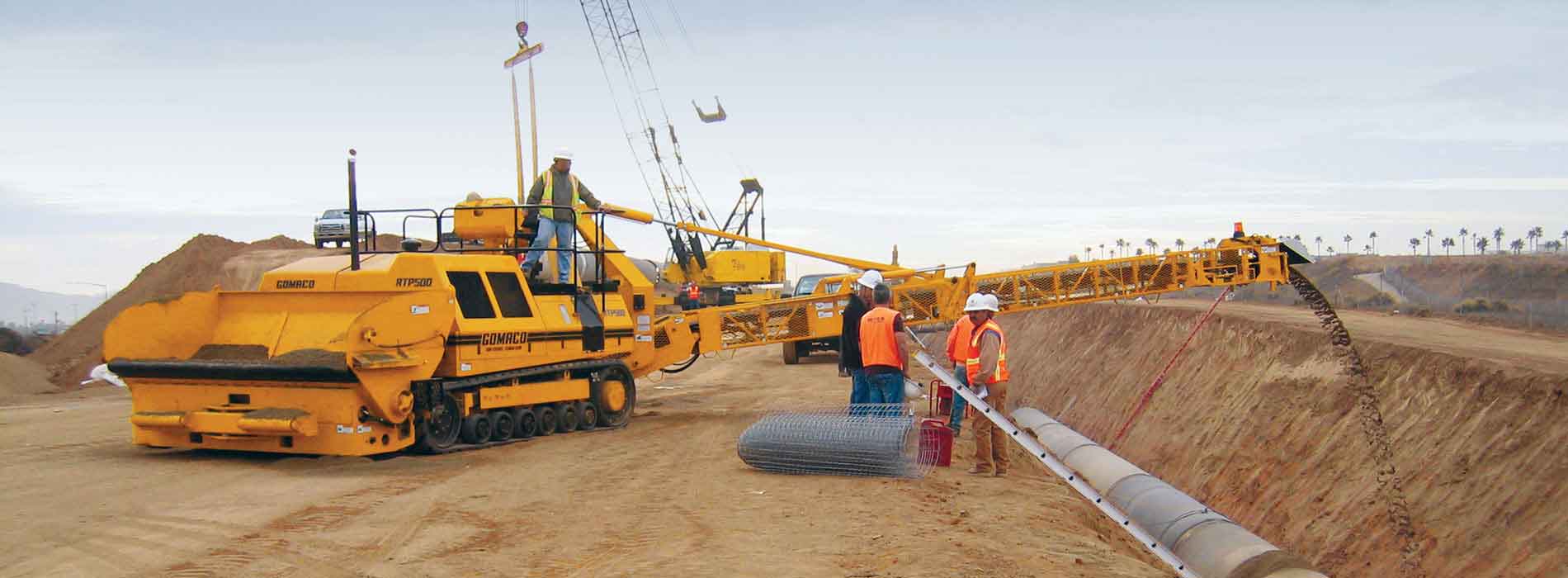

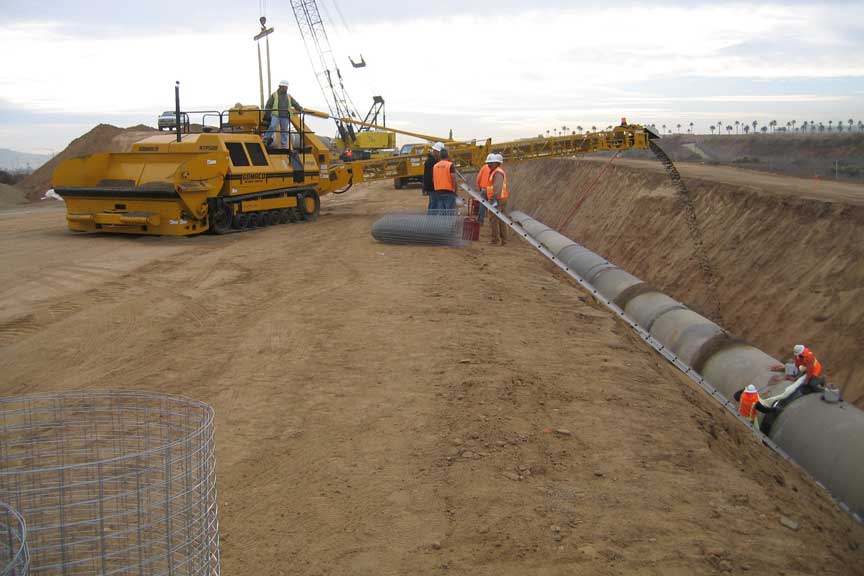

The GOMACO RTP-500 places material in a trench to fill in around a large pipeline.







RTP-500 Rubber-Tracked Placer

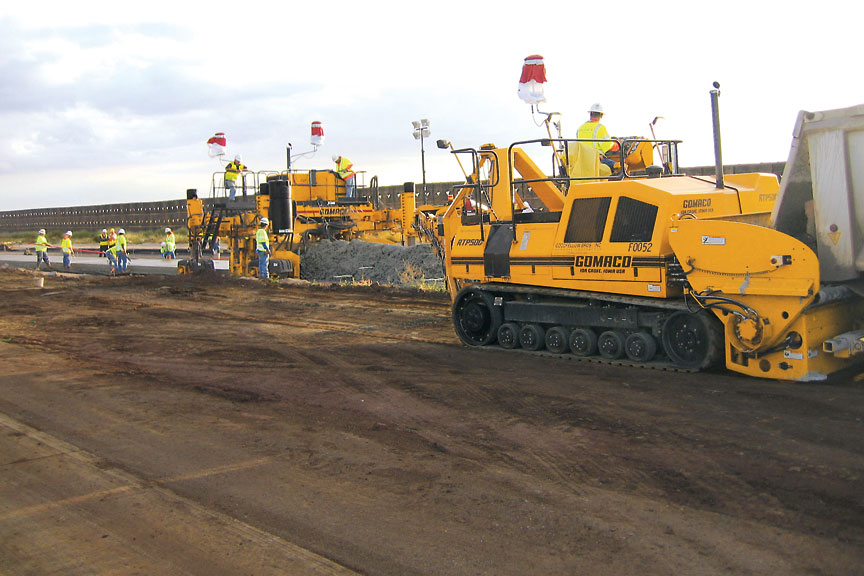

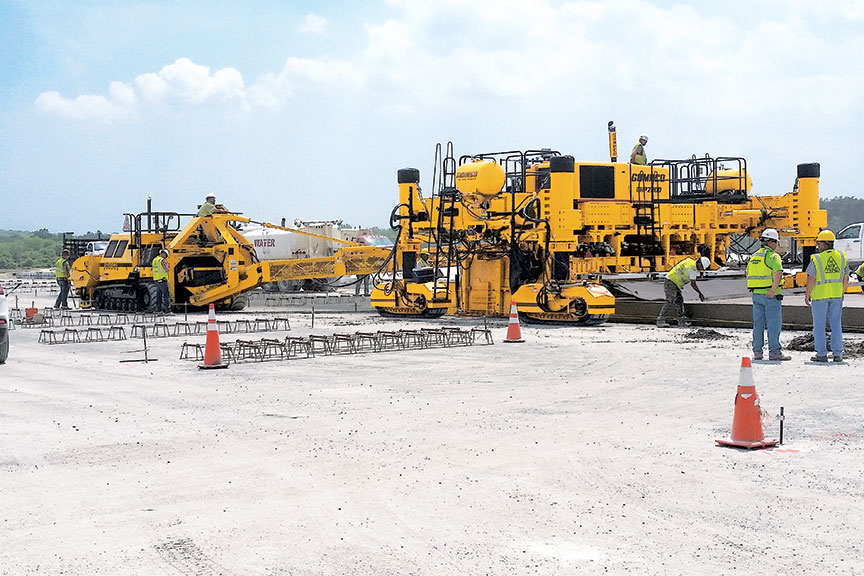

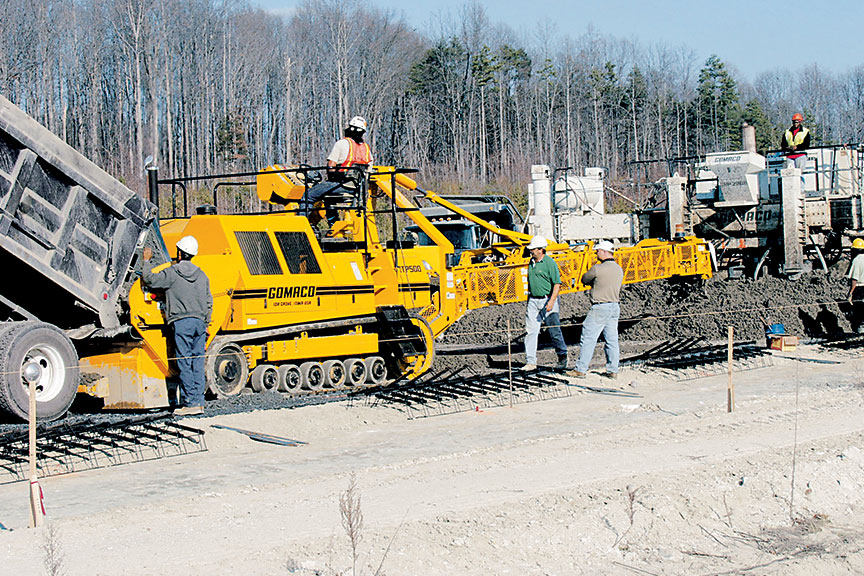

A GOMACO RTP-500 places concrete in front of a GHP-2800 paver at work on the Baltimore/Washington International Thurgood Marshall Airport in Baltimore, Maryland.







RTP-500 Rubber-Tracked Placer

The placing conveyor allows for fast and accurate material placement from the haul road, over the stringline or other obstacles, and reaches across the grade. The conveyor deflector directs the flow of concrete at the discharge end of the conveyor.







RTP-500 Rubber-Tracked Placer

A high volume of concrete was needed to slipform this wall on this Arkansas project. End-dump trucks and an RTP-500 kept the Commander III supplied.

Read more about this project in GOMACO World 32.2.







RTP-500 Rubber-Tracked Placer

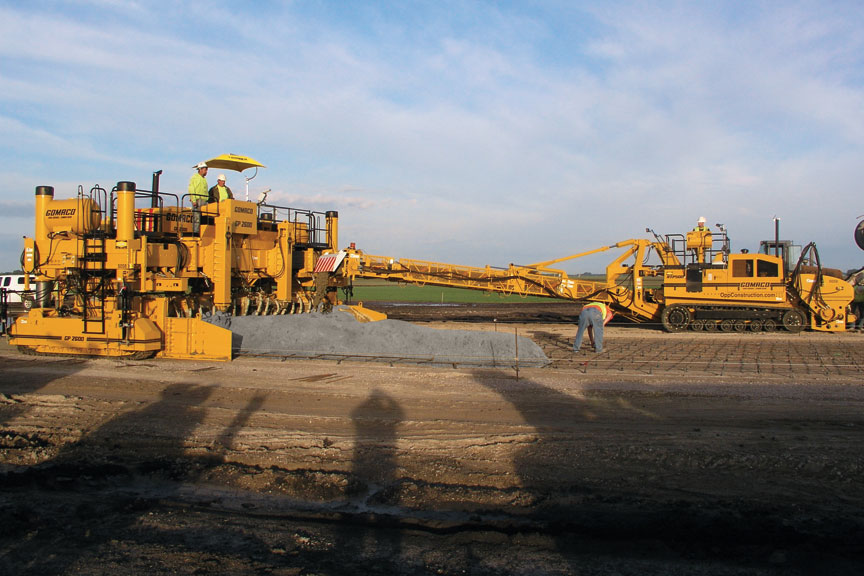

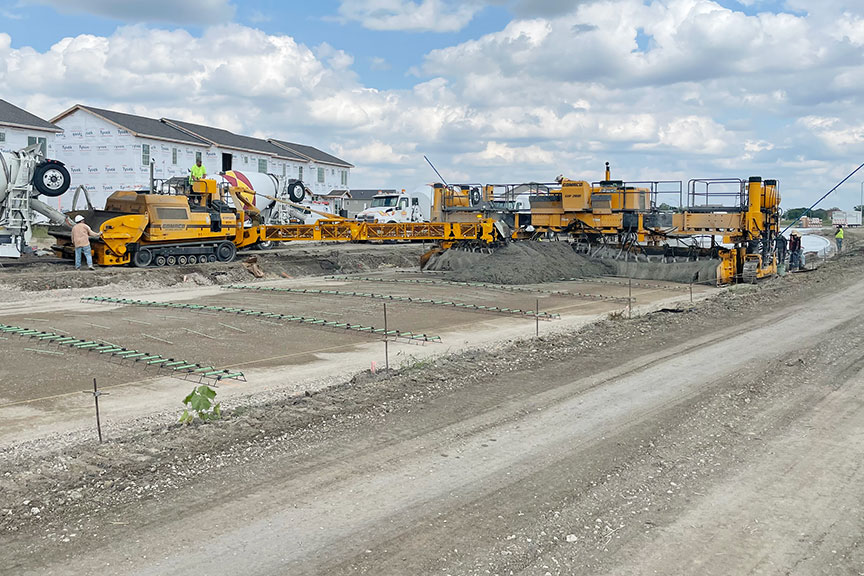

This contractor's GOMACO RTP-500 rubber-tracked placer and two-track GP-2600 paver slipforms sugar beet pads in North Dakota.

Read more about this project in GOMACO World 39.1.



RTP-500 Rubber-Tracked Placer

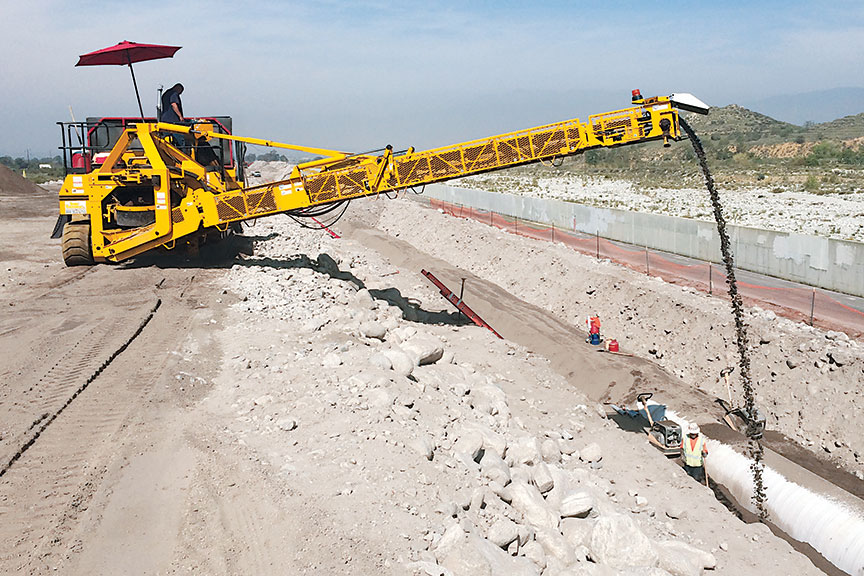

This RTP-500 is placing backfill material for a water supply pipeline in Bell Gardens, California.







RTP-500 Rubber-Tracked Placer

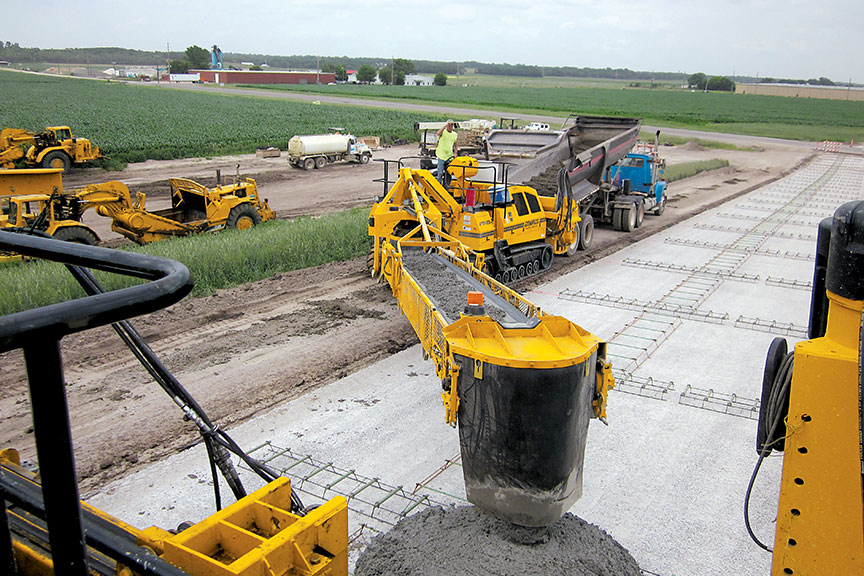

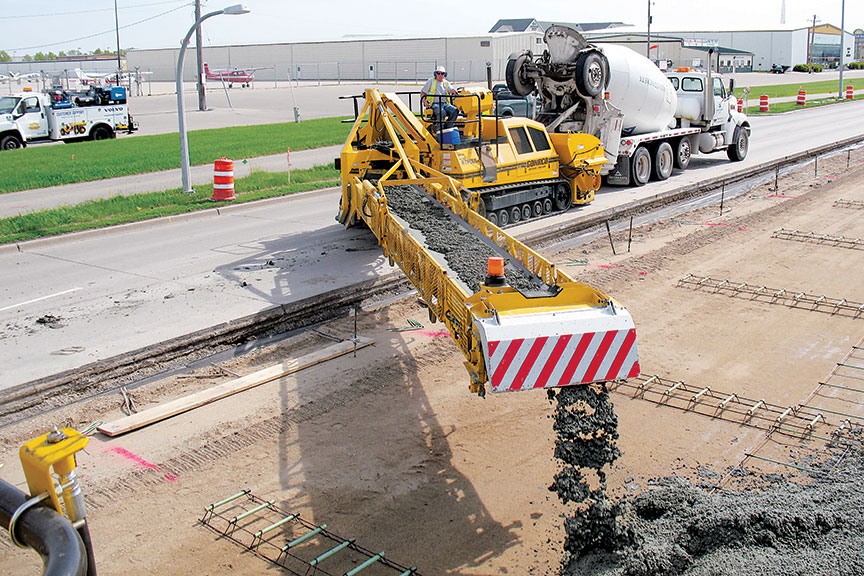

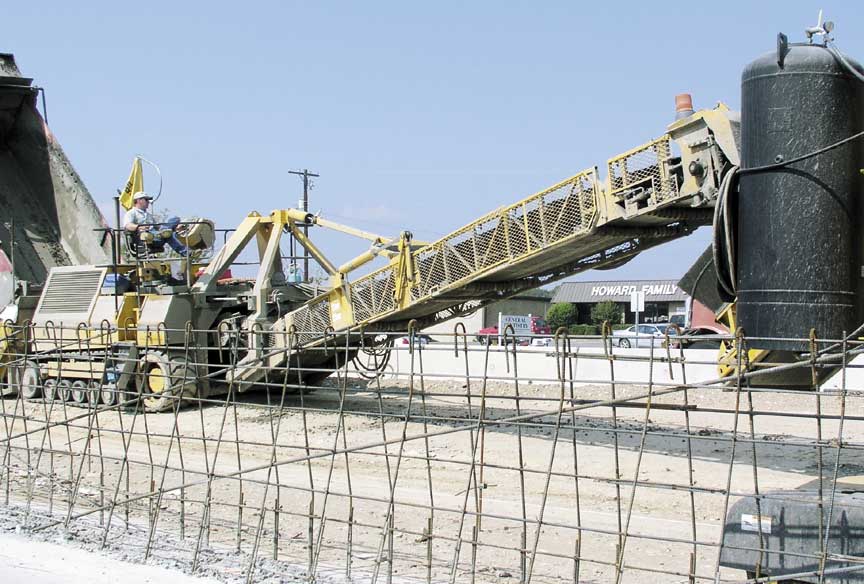

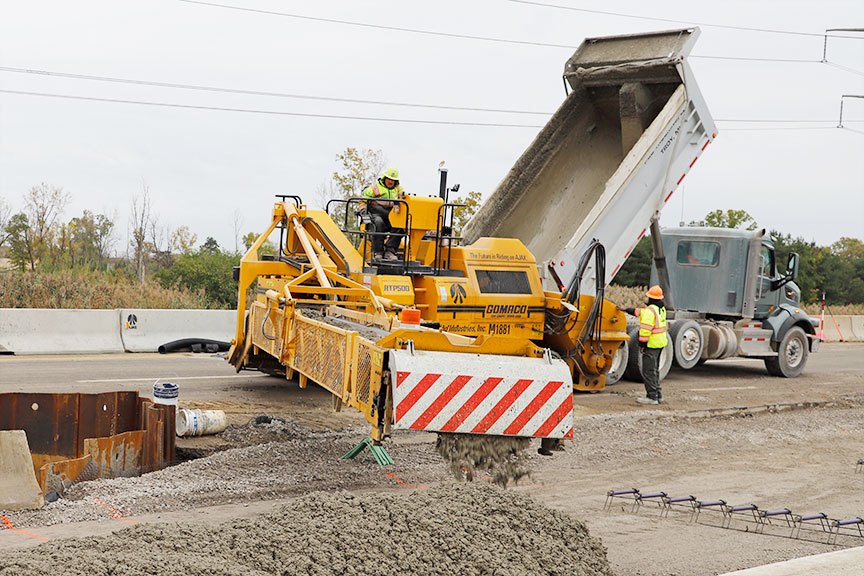

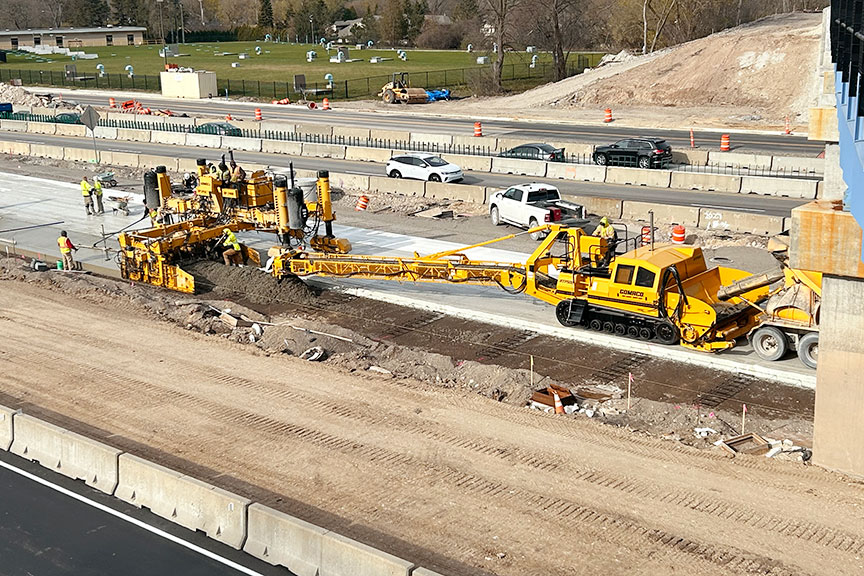

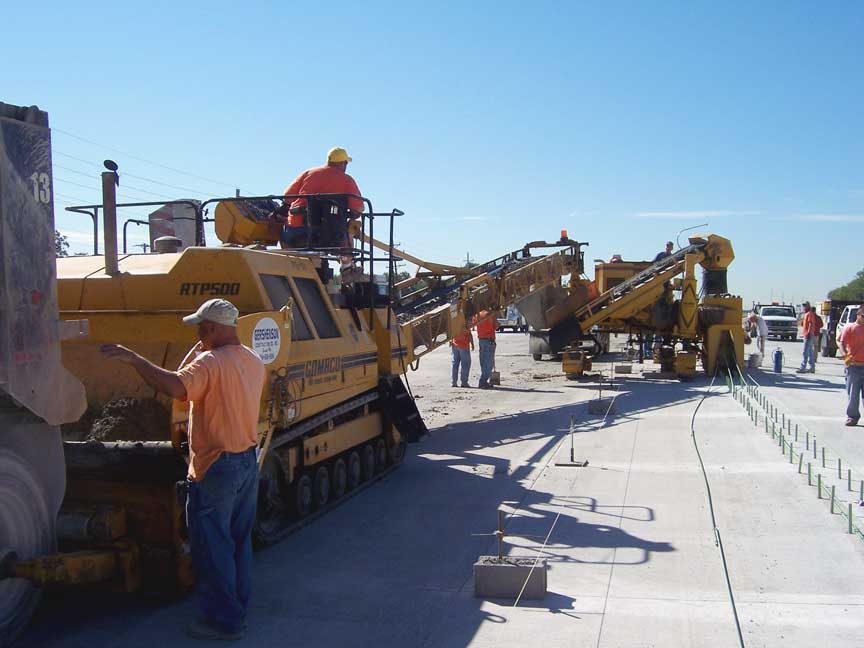

An RTP-500 rubber-tracked placer works from the haul road placing concrete on the grade and over preset dowel baskets.

Read more about this project in GOMACO World 37.2.







RTP-500 Rubber-Tracked Placer

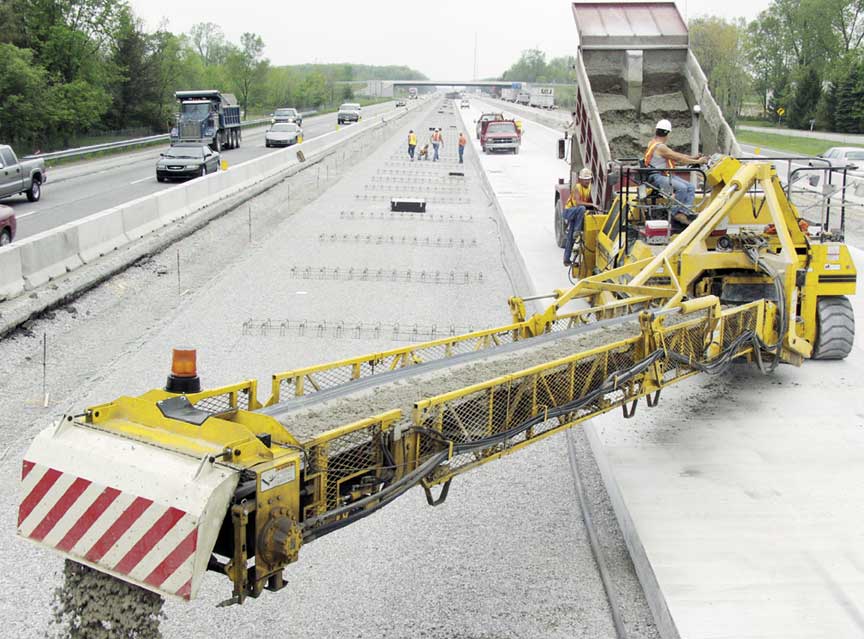

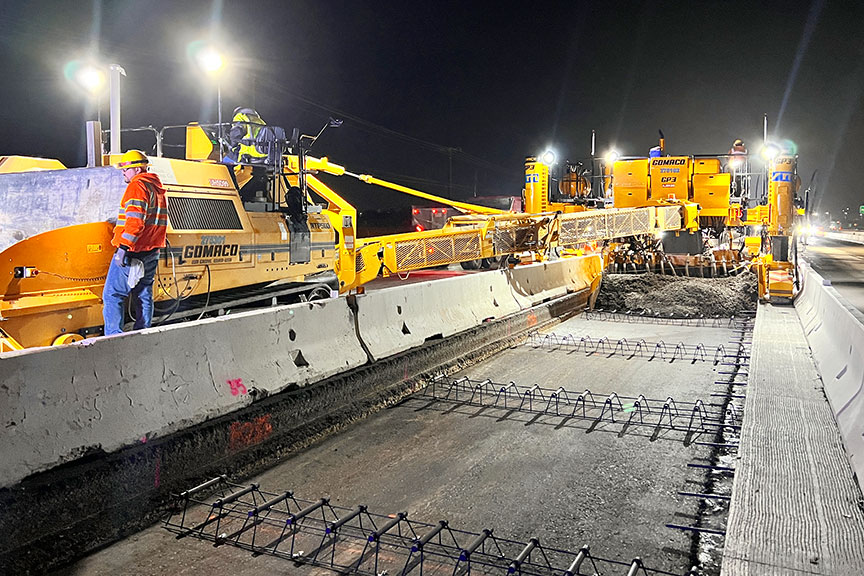

This RTP-500 runs on the new pavement, off to the side of the grade, placing concrete in front of a Commander III on this project in Indiana.

Read more about this project in GOMACO World 33.2.







RTP-500 Rubber-Tracked Placer

This RTP-500 is placing concrete on the conveyor of a GT-3600 slipforming barrier wall in St. Louis, Missouri.

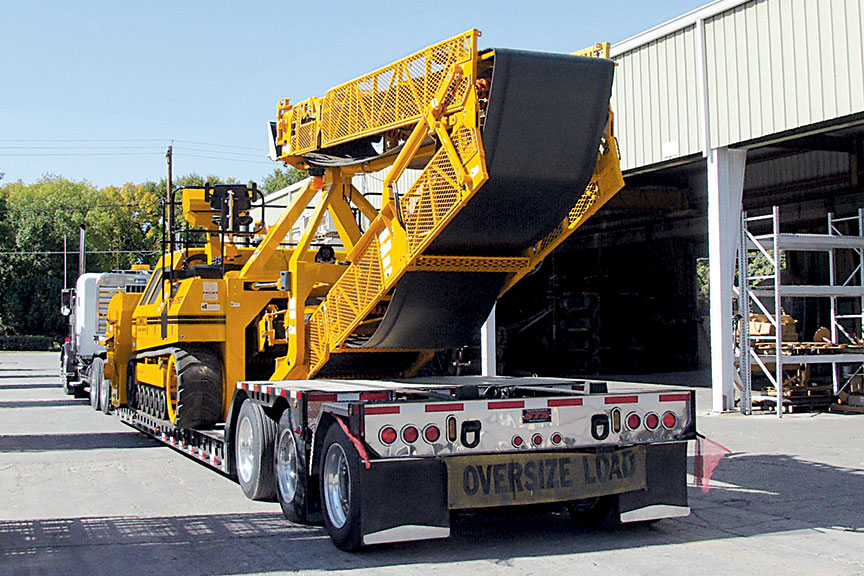

The hydraulically folding rear conveyor minimizes the transport requirements on the RTP-500. The overall shipping length is 37.25 feet (11.35 m), width is 11.8 feet (3.6 m) with the hopper attached, 10.3 feet (3.14 m) without the hopper, and a height of 11.7 feet (3.57 m) with the conveyor folded.



RTP-500 Rubber-Tracked Placer



RTP-500 Rubber-Tracked Placer



RTP-500 Rubber-Tracked Placer



RTP-500 Rubber-Tracked Placer



RTP-500 Rubber-Tracked Placer

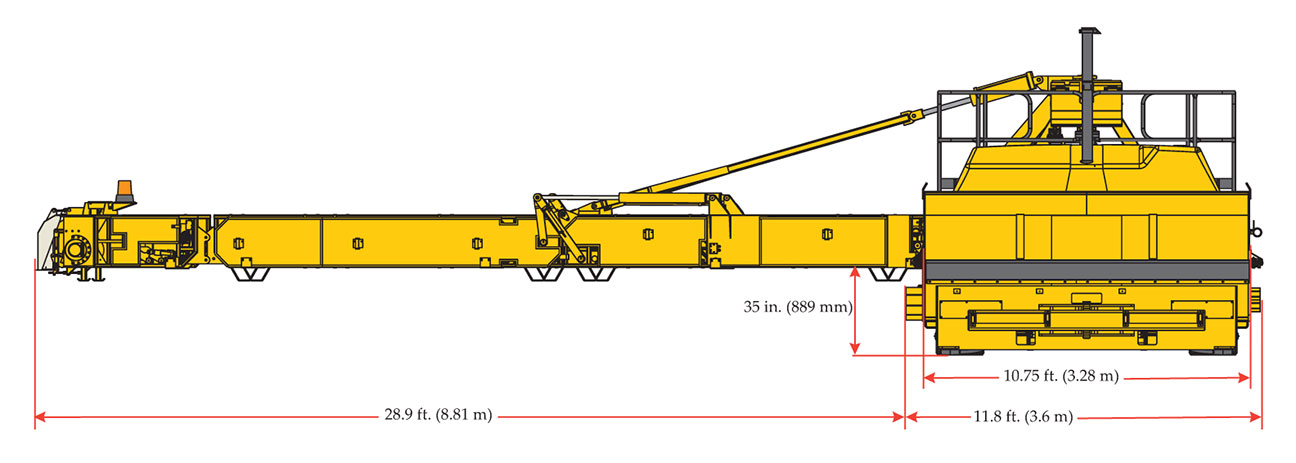

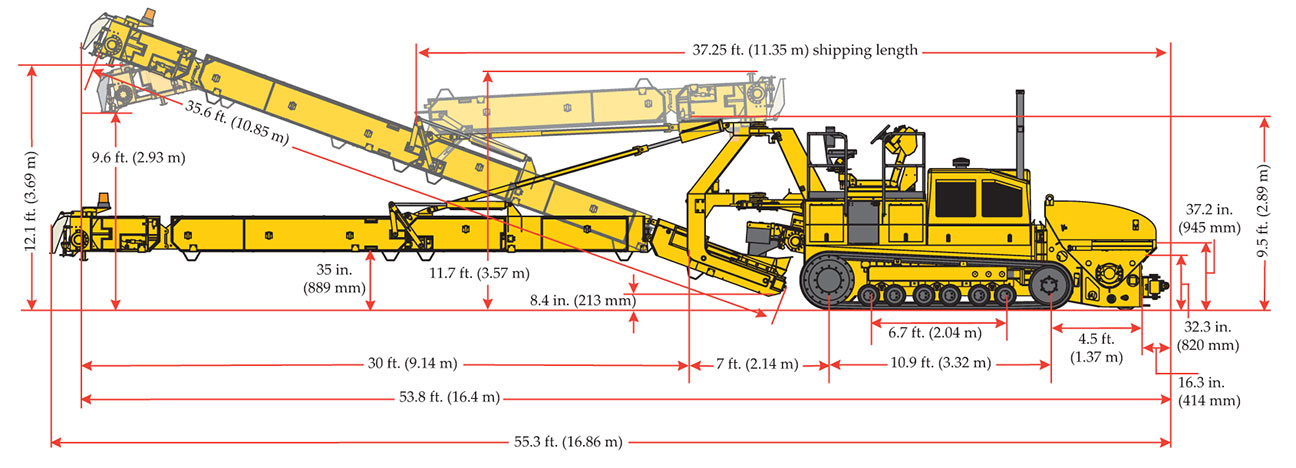

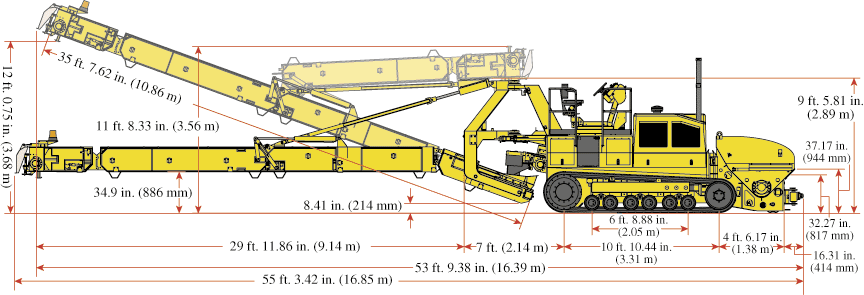

RTP-500

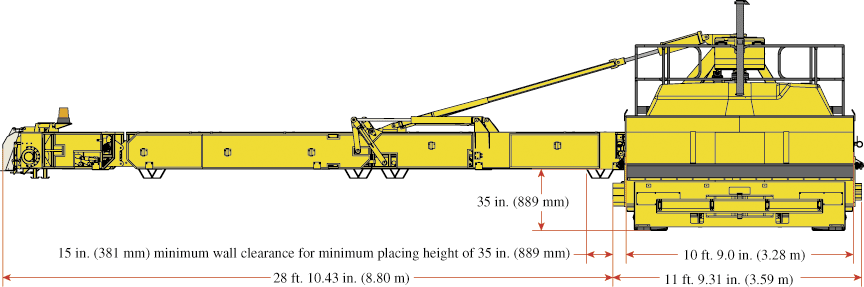

*All dimensions are nominal.



RTP-500 Rubber-Tracked Placer









RTP-500 Rubber-Tracked Placer









Safety Features

RTP-500 Rubber-Tracked PlacerThe conveyor must be centered and folded before G+® controls will allow for travel speed. There is no counter rotation of tracks in the travel speed. The steering sensitivity is programmed to provide balanced steering control at low or high speeds, preventing the operator from oversteering at high speeds. Five emergency stop (E-stop) buttons are located on strategic areas of the machine. G+ features control interlocks to prevent unexpected movements at start-up. The RTP-500 has many other safety features, including a flashing light on the end of the conveyor, a belt swing alarm, back-up alarm, operator horn, and the hopper remote control.



















RTP-500 Rubber-Tracked Placer Specifications



ENGINE
Type: Turbocharged diesel.
Make: John Deere 6068H.
Number of cylinders: 6.
Displacement: 6.8 L (415 in3).
Power: 250 hp (186.5 kW).



SERVICE CAPACITIES
Fuel reservoir: 85 gal. (322 L).
Hydraulic oil reservoir: 100 gal. (379 L).
Water tank: 130 gal. (492 L).



AUTOMATIC CONTROL SYSTEM
Type: Electronic-over-hydraulic.
G+ control system: Self-diagnostics and smart steer controls for ease of operation. Includes a graphic display controller with multi-language capability.
Operator’s console: Provides ultimate operator visibility during the entire operation. The operator’s console rolls from left to right on the platform to provide more comfort and visibility for the operator. The console can be set at five different positions. It can be positioned straight forward or turned 90 degrees to the left or right.



RECEIVING HOPPER
Type: Auger-style hopper.
Width: 10.75 ft. (3.28 m).
Working capacity: 4.75 yd3 (3.63 m3).
Truck pusher: Pivoting roller or optional quick hitch.
Hydraulic vertical adjustment: 12 in. (305 mm) hydraulic vertical adjustment to allow for gate height on dump trucks.
Vibration: Shaft-mounted eccentric vibrators provide vibration for emptying the hopper after each load and increased flowability.
Rubber hopper/truck seal: The hopper/truck seal is supported by a hydraulically tensioned cable for consistent sealing on a wide variety of dump truck bodies.



AUGER
Size: 14 in. (356 mm) diameter x 14 in. (356 mm) pitch.
Speed: Up to 88 rpm.
Flighting: Welded or bolt-on.



CONVEYORS (transfer conveyor and hydraulically folding rear conveyor)
Controls: Both conveyors are activated with a single switch and have individual speed controls.
Belt speed: 608 fpm (185 mpm).
Transfer conveyor width: 36 in. (914 mm).
Rear conveyor width: 36 in. (914 mm).
Rear conveyor length: 35 ft. (10.67 m).
Rear conveyor hydraulic elevation: 12 ft. (3.66 m).
Rear conveyor hydraulic swing: 170 degrees.



TRACK SYSTEM
Type: Two GOMACO friction drive rubber tracks.
Track width: 19 in. (483 mm).
Track length: 13.5 ft. (4.11 m).
Automatic tensioning: Hydraulic.
Bogie wheels: 13 in. (330 mm) diameter, 12 per track, steel/rubber, oscillating - 2 in. (51 mm) total vertical travel per wheel.
Idler wheels: 24 in. (610 mm) diameter, two per track, steel/rubber.
Final drive: Comer two-speed planetary with parking brake.
Pump and motors: Danfoss heavy-duty closed-loop.
Tractive effort: 20,000 lbf. (88,964 N).
Travel speed: Up to 7 mph (11 kph).
Work speed: Up to 110 fpm (33.5 mpm).
Ground pressure: 50,000 lb. (22,680 kg) empty: 10.1 psi (70 kPa).
64,000 lb. (29,030 kg) loaded: 13.2 psi (91 kPa).



DIMENSIONS
Shipping width with hopper: 11.8 ft. (3.6 m).
Shipping width without hopper: 10.3 ft. (3.14 m).
Shipping height with conveyor folded: 11.7 ft. (3.57 m).
Height without conveyor folded: 9.5 ft. (2.9 m).
Shipping length with conveyor folded: 37.25 ft. (11.35 m).
Machine weight: 50,000 lb. (22,680 kg).
Operational width: 11.8 ft. (3.6 m).
Operational length and height: Variable length and height depending on conveyor positioning.
