Versatility Is Provided With GOMACO’s Texturing/Curing Machines



Both the T/C-400 and T/C-600 frames permit width adjustment from 12 ft. 10 in. (3.91 m) up to 56 ft. 10 in. (17.32 m).

The T/C-400 is equipped with two end cars, each having two hydraulically powered, foam-filled rubber flotation tires, and the T/C-600 is equipped with two hydraulically powered, gear-driven crawler tracks.

The T/C-600 accomplishes tasks quickly because of its optional high travel speed. The 176 fpm (53.6 mpm) is the fastest in the industry.





















Versatility With One Machine

• Versatility with one machine...texturing, curing, poly-roll, burlap/astroturf drag.

• T/C-600 accomplishes the tasks quickly because of its optional high travel speed. The 176 fpm (53.6 mpm) is the fastest in the industry. This can allow your operator to keep up with the paving operation and time to tend to other responsibilities.

• The low-range power on the T/C-600 provides tractive effort around and over job-site obstacles and ease in negotiating inclines during loading. The low-range speed provides up to 66 fpm (20.1 mpm).

• The T/C-400 and T/C-600 frames permit width adjustment from 12 ft. 10 in. (3.91 m) to 56 ft. 10 in. (17.32 m). This GOMACO machine provides increased efficiency on any project where the surface of the concrete requires texturing and/or application of curing compound.

• Central operator station and power supply provides hydraulic control from one location. Job-proven, 60 hp (44.8 kW), four-cylinder, water-cooled CAT diesel engine, provides ample power for any project.

• Electronic-over-hydraulic forward and reverse steering and grade control is sensored off the same stringline as the paver. This provides ease of operation and accuracy in texturing and curing of the slab.

• Optional power transition adjuster (PTA) hydraulically adjusts for crown height and permits on-the-go crown adjustments.

• Curing assembly includes a reservoir with hydraulic motor, pump, and controls. The spray bar has nozzles spaced 12 in. (305 mm) apart and adjustable height above the surface of the concrete for even coverage. Transverse curing system is available. The transverse curing system allows you to simultaneously texture and cure, saving you time and money.

• Texturing assembly travels transversely across the width of the concrete slab. Carriage speed is variable up to 186 fpm (56.7 mpm). Texturing wire tine members are automatically pivoted to trail at the end of each pass. Adjustable pressure on surface contact between texturing member and concrete controls depth and angle of wire tines. Longitudinal texturing is available when required by project specifications.

• Versatility is provided as the optional burlap/astroturf drag or poly-roll (T/C-600) hydraulically lowers for the texturing process and raises off the slab for the curing operation.

• GOMACO’s T/C-400 and T/C-600 texture/cure machines are now available with a skewed tining option. It allows the travel of the tining bars to run a skewed path, while the frame of the machine is square to the slab. It simplifies the ability to transverse tine on newly paved streets and highways requiring a skew texture.





T/C-400 Texture/Cure MachineSkewed Tining Option

GOMACO’s T/C-400 and T/C-600 texture/cure machines are available with a skewed tining option. It allows the travel of the tining bars to run a skewed path, while the frame of the machine is square to the slab. It simplifies the ability to transverse tine on newly paved streets and highways requiring a skew texture.

In the past, the frame of the texture/cure machine had to be skewed and incorporated the use of a secondary crawler track mount with a center pivot, which added length to the machine. The skewed frame had to be broken down for transport.

With the skewed tining option, the tine rake on the texture/cure is gear driven, and as the rake travels across the slab, it moves longitudinally in a sliding mechanism through the mount. The final tining pattern is accomplished simply by sliding only the rake. No matter where the broom starts or stops, it always has the same skewed pattern, because it is timed off the carriage’s back and forth travel. The sliding movement is controlled by a timing chain that runs from end panel to end panel. The direction of the skew can easily be changed by moving the timing chain either over or under the main drive sprocket on the upper carriage.

The skewed tining option was designed for simplicity. There are no electronic controls with the texture/cure’s skewed tining option. The sprockets, chains and mechanical items are ordinary pieces that are easily replaceable and can be purchased at the local hardware store.









Skewed Concrete Tining For GOMACO Texture/Cure Machine
1 minutes 15 seconds







T/C-400 Texture/Cure Machine

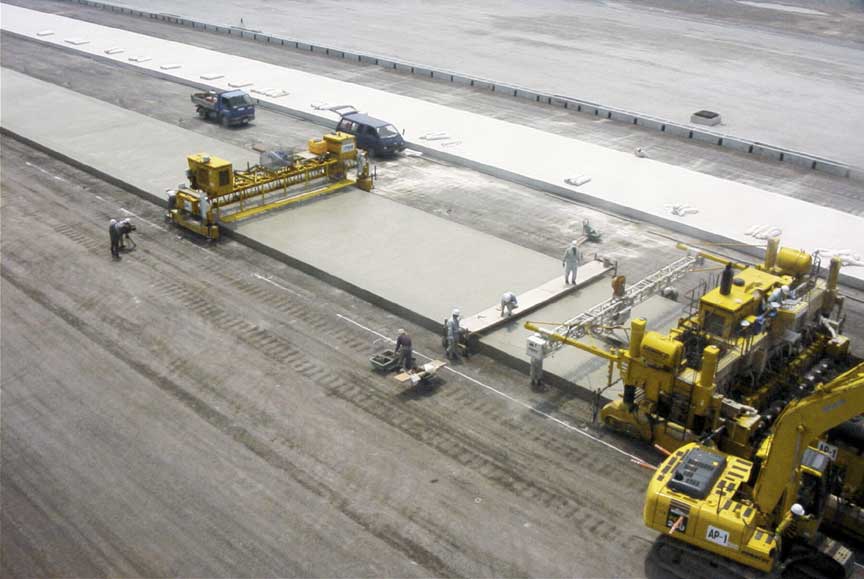

A T/C-400 applies a transverse tine to this runway on the Central International Airport in Japan. The runway was 24.6 feet (7.5 m) wide and thickness varied between 16.5 to 18.1 inches (420 to 460 mm).

Read more about this project in GOMACO World 32.1.







T/C-400

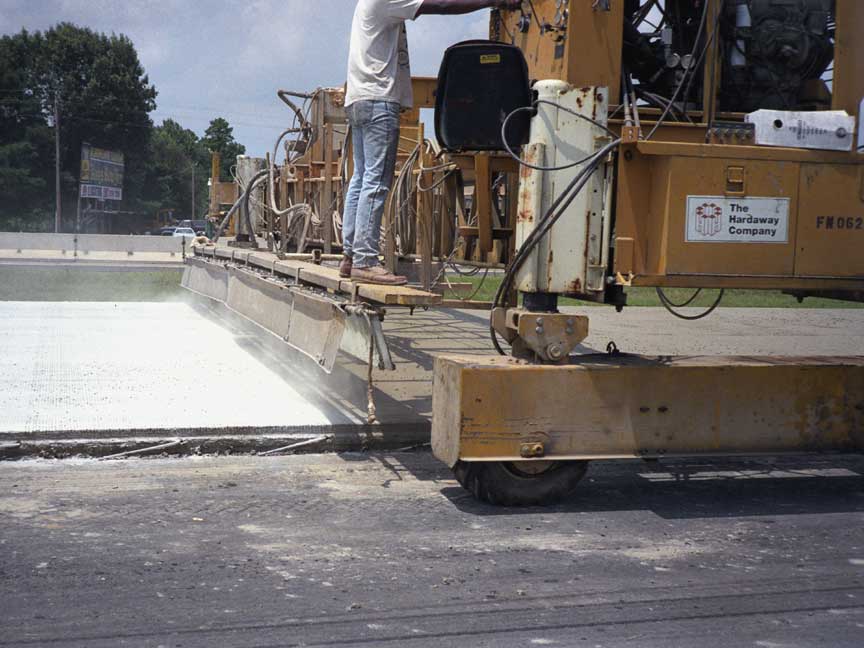

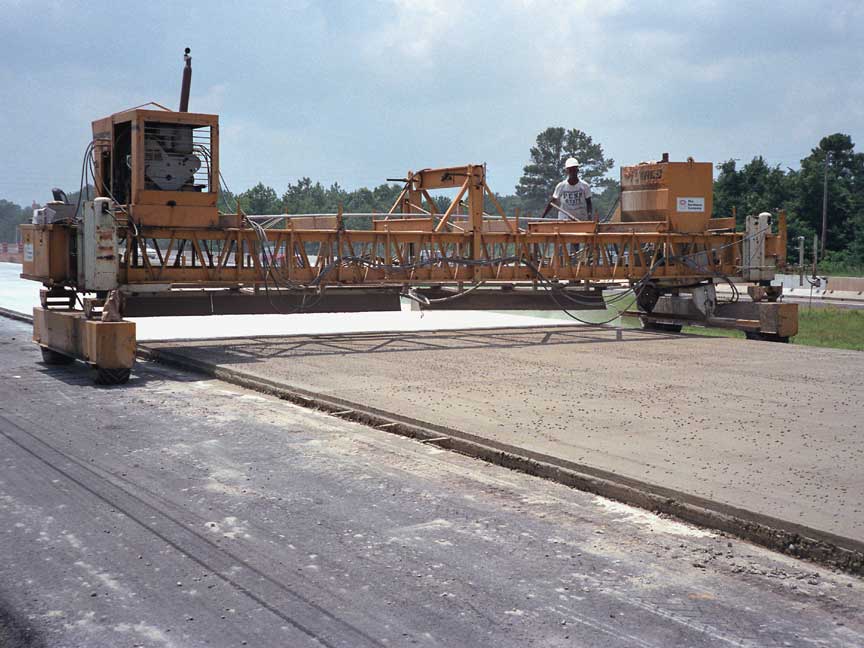

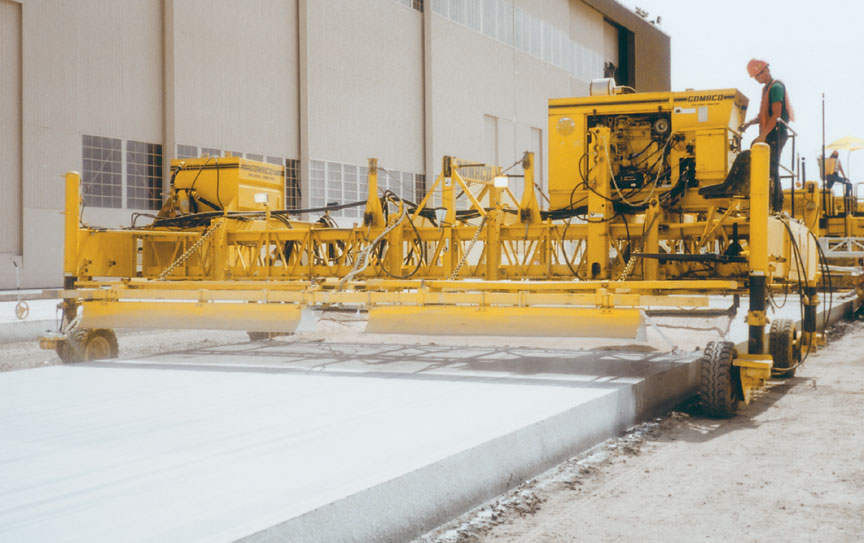

This GOMACO T/C-400 is curing a slab at a job site in Texarkana, Arkansas.





T/C-400 Texture/Cure Machine

The skewed tining option simplifies the ability to transverse tine on newly paved streets and highways requiring a skew texture.







T/C-400 Texture/Cure Machine

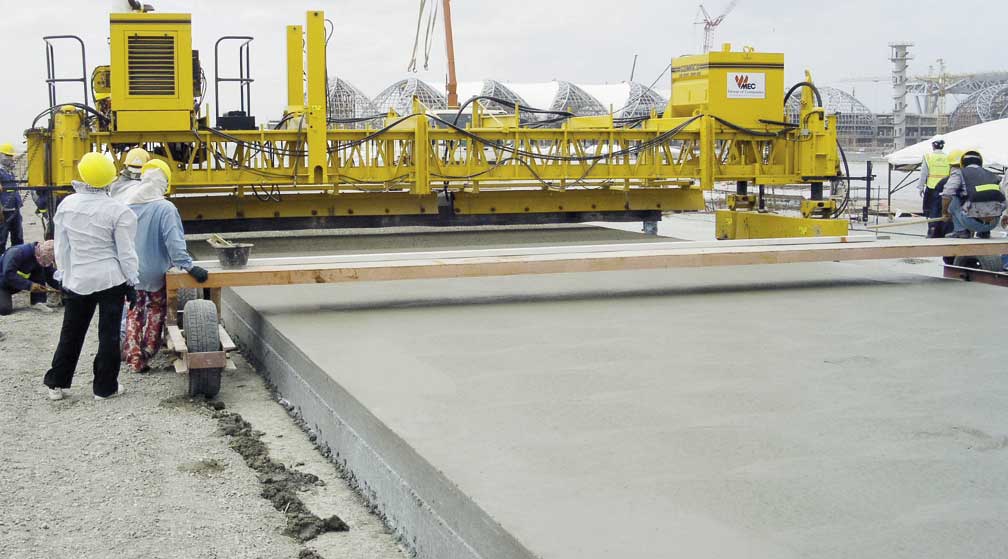

A T/C-400 works behind a paver applying a horizontal tine and spray cure on the New Bangkok International Airport in Thailand.

Read more about this project in GOMACO World 32.2.







T/C-400 Texture/Cure Machine

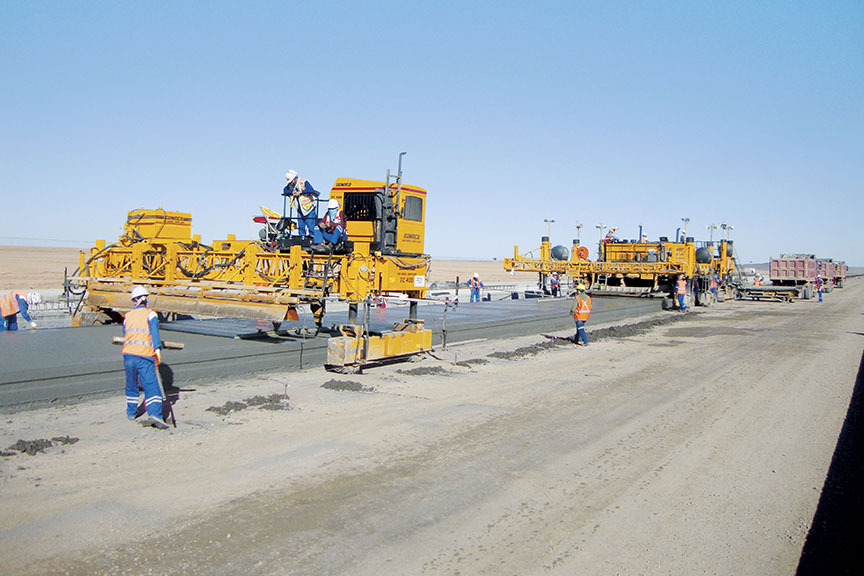

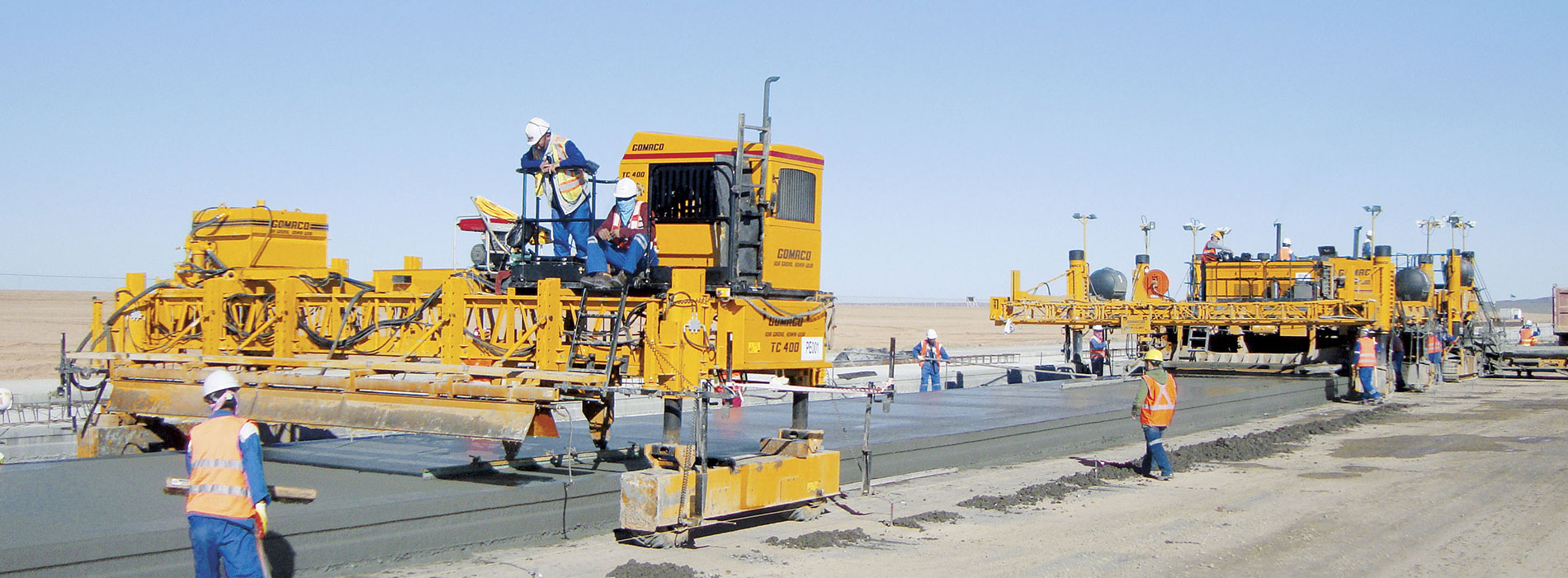

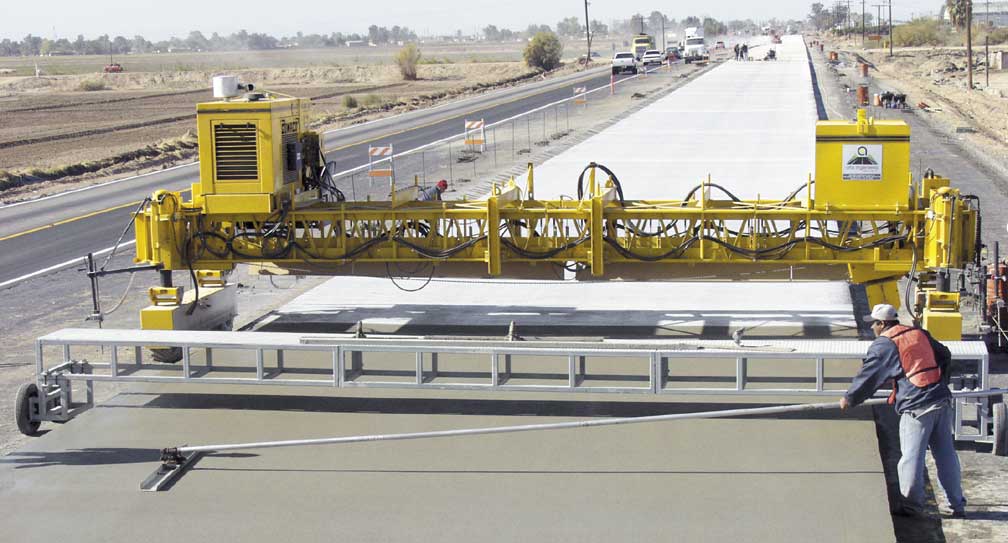

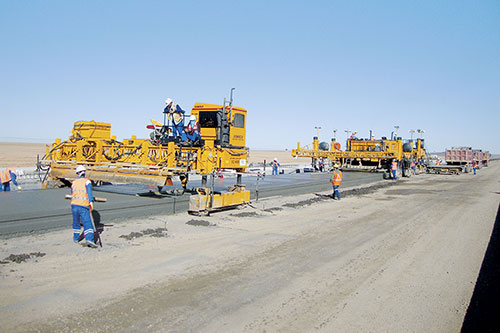

This T/C-400 is following behind the paver applying a transverse tine finish and curing compound in Baja California, Mexico.

Read more about this project in GOMACO World 32.1.







T/C-400 Texture/Cure Machine

A GOMACO T/C-400 followed this GHP-2800 and applied a transverse texture and cure on the London Heathrow Airport.

Read more about this project in GOMACO World 32.1.







T/C-400 Texture/Cure Machine

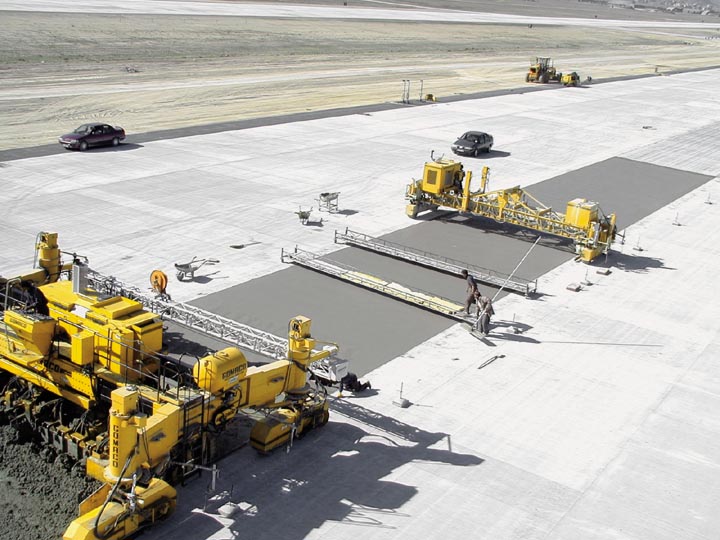

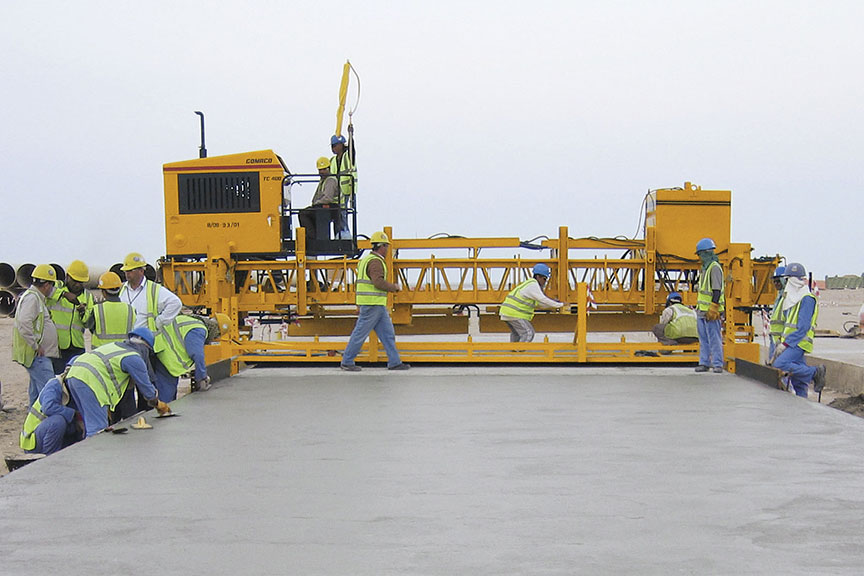

This T/C-400 texture/cure machine completed a GOMACO paving train on this airport project in Turkey. It put the final textured surface on the runway.

Read more about this project in GOMACO World 28.1.







T/C-400 Texture/Cure Machine

Curing assembly includes a 250 gal. (946 L) reservoir with hydraulically driven cure pump, filter, gauges and controls. The spray bar has nozzles spaced 12 in. (305 mm) apart and 18 in. (457 mm) above the surface of the concrete.

Read more about this project in GOMACO World 29.2.







T/C-400 Texture/Cure Machine

A T/C-400 finished and cured this airport runway on the Kirtland Air Force Base in Albuquerque, New Mexico.

Read more about this project in GOMACO World 29.2.







T/C-400 Texture/Cure Machine

GOMACO's T/C-400 is equipped with two end cars, each having two hydraulically powered, foam-filled rubber flotation tires.







T/C-400 Texture/Cure Machine

Wire tines for texturing travel across the width of the concrete slab. Adjustable pressure on surface contact between the texturing member and concrete controls depth and angle of wire tines.







T/C-400 Texture/Cure Machine

Longitudinal tining is available when required by project specifications.







T/C-400 Texture/Cure Machine

The console and operator station provide easy operation and overall visibility.







T/C-400 Texture/Cure Machine

The control box is strategically positioned to provide easy steering control and safety with the emergency stop switch.







T/C-400 Texture/Cure Machine

Full-width spray bar for curing has nozzles spaced 12 in. (305 mm) apart and adjustable height above the surface of the concrete for even coverage.







T/C-400 Texture/Cure Machine

Transverse cure system allows for simultaneous texturing and curing.







T/C-400 Texture/Cure Machine

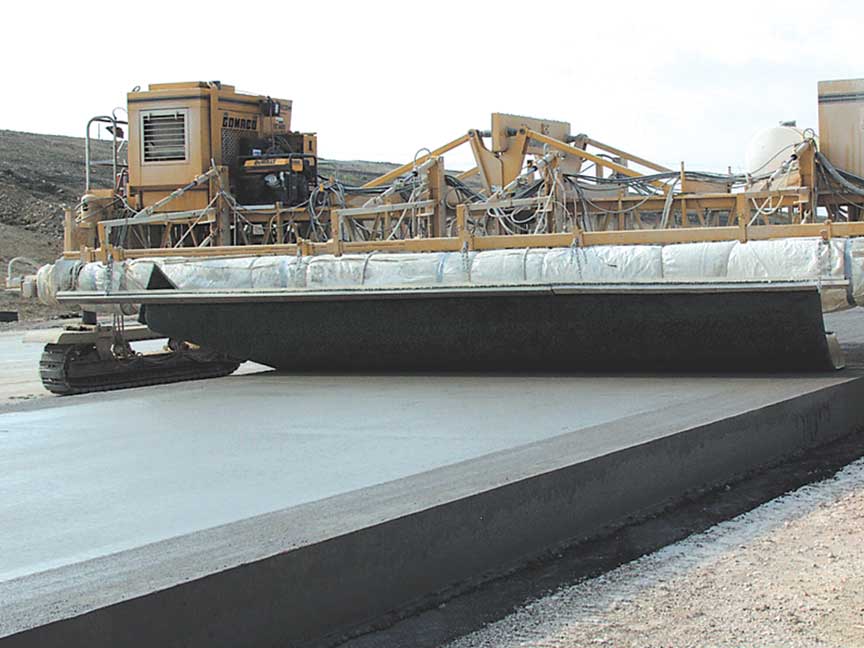

Versatility is provided as the burlap/astroturf drag or poly-roll hydraulically lowers for the texturing process and raises off the slab for the curing process.











T/C-400 Specifications



ENGINE
Type:
CAT diesel.
Power: 60 hp (44.8 kW) @ 2800 rpm.



SERVICE CAPACITIES
Fuel reservoir:
33 gal. (124.9 L).
Hydraulic oil reservoir: 57 gal. (215.8 L).



HYDRAULIC SYSTEM
Pumps:
One double-stage main pump provides 37 gpm (140 Lpm) @ 2150 rpm.
One main lift pump provides 11 gpm (41.6 Lpm) @ 2150 rpm.
Oil cooler: One electric fan forced-air oil cooler mounted on top of engine shroud.
Filtration: One twenty-five micron main filter.



AUTOMATIC CONTROL SYSTEM
Type:
Electronic-over-hydraulic.
Controls: GOMACO’s control system features forward and reverse steering and grade control and is sensored off the same stringline as the paver. This provides ease of operation and accuracy in texturing and curing.



TRACTION SYSTEM
Type: Two end cars, each having two hydraulically powered, foam-filled rubber flotation tires.
Tire size: 12 in. (305 mm) x 26 in. (660 mm).



FRAME
Construction:
All-steel welded frame, pin-connected main frame sections.
Width: Adjustable from 12 ft. 10 in. (3.91 m) up to 56 ft. 10 in. (17.32 m). Standard width is 32 ft. 10 in. (10 m).
Optional frame extensions: Available in 2 ft. (.61 m), 4 ft. (1.22 m), 8 ft. (2.44 m) and 12 ft. (3.66 m) lengths.
Optional power transition adjuster: Hydraulically adjusts for crown height and permits on-the-go crown adjustments.
Optional: Offset jack mounts, four to allow 2 ft. (.61 m) more between end cars without extending the main frame.



OPERATOR’S PLATFORM ASSEMBLY
Operator’s platform assembly is standard on both machines.



TEXTURING ASSEMBLY
10 ft. (3.05 m) wide with 5 in. (127 mm) long wire tines spaced to meet specification requirements.
Optional: Wire tine texturing members, fast change and built to specifications.



CURING ASSEMBLY
250 gal. (946.4 L) reservoir, pump with hydraulic motor and controls. Includes spray bar, windshield and work platform.
Optional: 350 gal. (1324.9 L) reservoir.
Optional: Platform assembly for reusable totes provides a quick cure tote exchange.
Optional: Spray bar, windshield and work platform extensions are available in 2 ft. (.61 m), 4 ft. (1.22 m), 8 ft. (2.44 m) and 12 ft. (3.66 m) lengths.



TRANSPORT AXLE (optional)
The transport axle is hydraulically powered with 6.7 in. (170 mm) x 15 in. (381 mm) 12 ply tires and removable towing tongue for job-site use only.

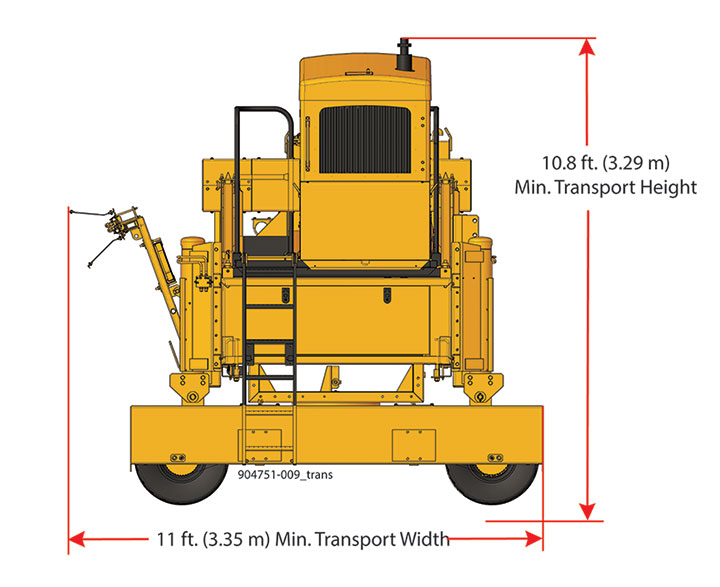

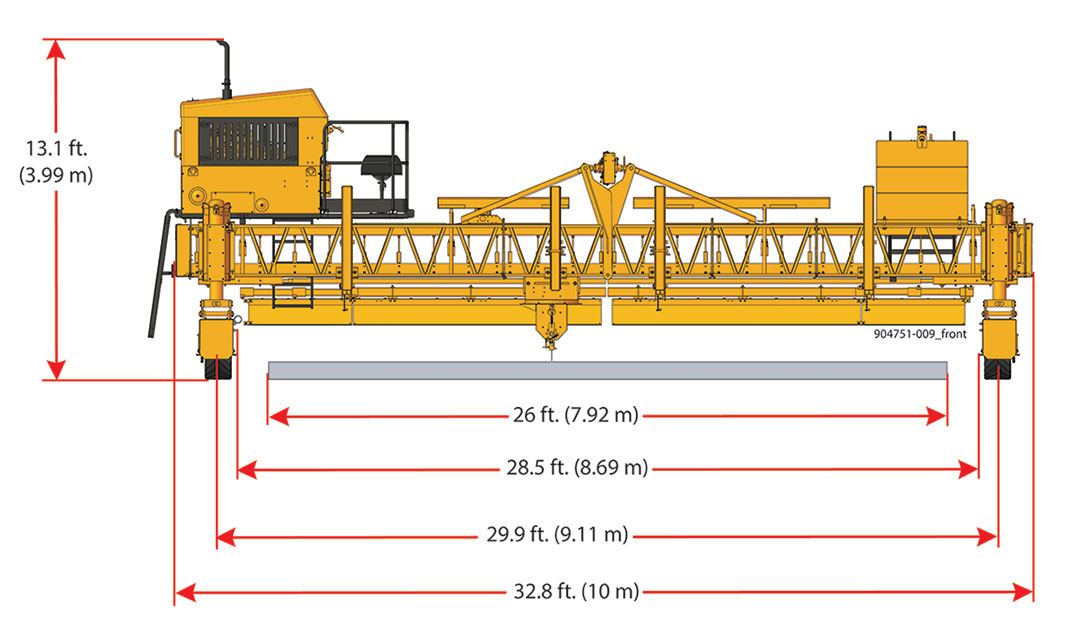

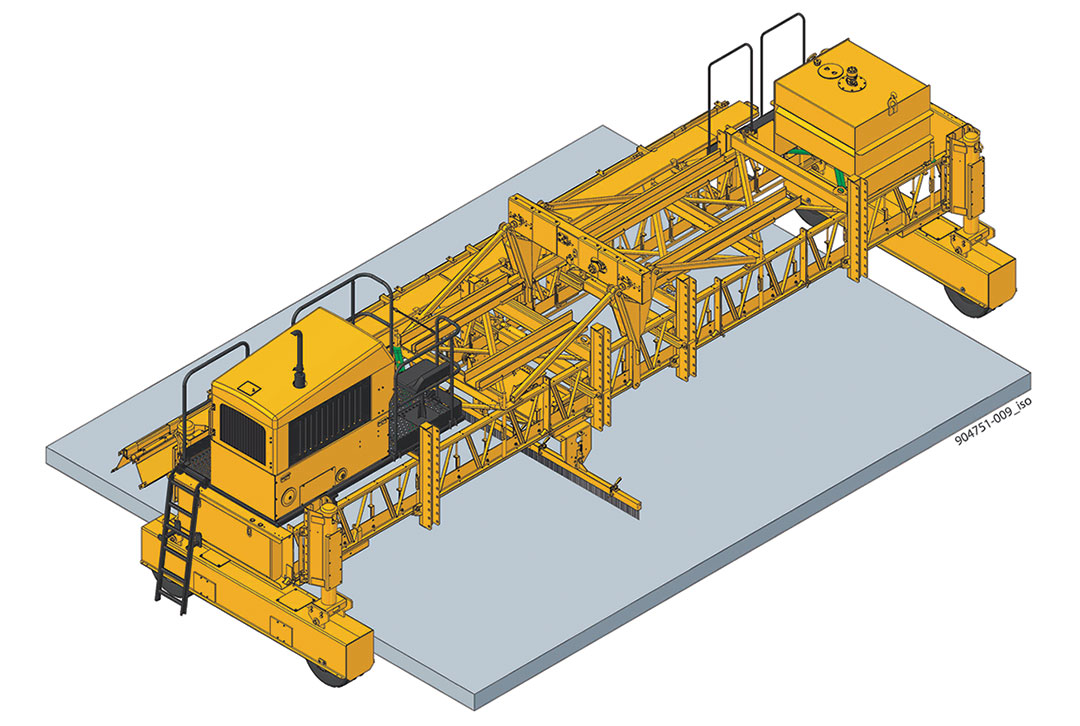

DIMENSIONS
Transport
Minimum width:
10 ft. 8.65 in. (3.27 m).
Minimum height: 10 ft. 7.35 in. (3.23 m).

Operational
Width:
12 ft. 10 in. (3.91 m) up to 56 ft. 10 in. (17.32 m).
Length: 12 ft. 8.97 in. (3.89 m).
Height: 12 ft. 7.88 in. (3.86 m).

WEIGHT (approximate)
(at 32 ft. 10 in. (10 m) standard width)
Basic unit 14,100 lbs. (6396 kg).



ADDITIONAL OPTIONS

32 ft. 10 in. (10 m) texturing machine only, equipped same as standard machine, less curing system.

32 ft. 10 in. (10 m) curing machine only, equipped same as standard machine, less wire tine texturing member assembly.

Skewed tining option.

Auto-Float® attachment, consult factory for specifications.

Burlap drag assembly available for both texture/cure machines.

Other options are available to customize machines to accommodate applications and customer needs.
